Samtec FTSH-110-01-L-D FTSH-110-01-L-D Pin Header Board-to-Board Wire-to-Board 1.27 mm 2 Rows 20 Contacts Through Hole Ftsh

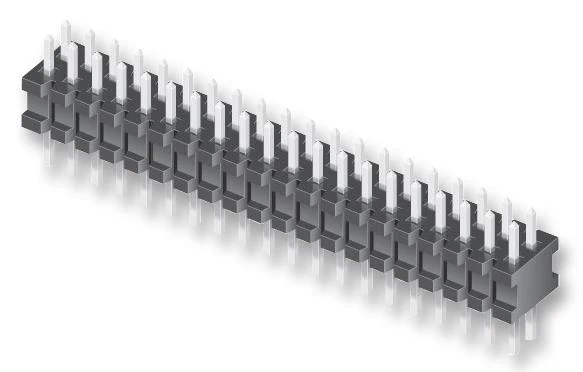

The FTSH series from Samtec are through hole micro terminal strip headers. It mates with Samtec FFSD, FFTP, CLP and FLE series of connectors. These terminal strip headers are available in end shroud, end shroud with locking clip, end shroud with guide post, end shroud with board lock, ejector shroud and keying shroud option.

Available in dual row
Pitch spacing is 1.27mm (2 to 50 contacts per row) with straight orientation
Operating temperature range of -55?C to 125?C
Contact material is phosphor bronze
Black liquid crystal polymer insulator material
Complies with UL E111594 and CSA 090871
0
000 standards
10?" gold plated contacts

Applications

Industrial

Other details

Brand	SAMTEC
Part Number	FTSH-110-01-L-D
Quantity	Each
Technical Data Sheet EN
Drawing EN
