sE Electronics DM3 Dynamite In-Line Active DI (Black)
HomeStore

sE Electronics DM3 Dynamite In-Line Active DI (Black)

sE Electronics DM3 Dynamite In-Line Active DI (Black)

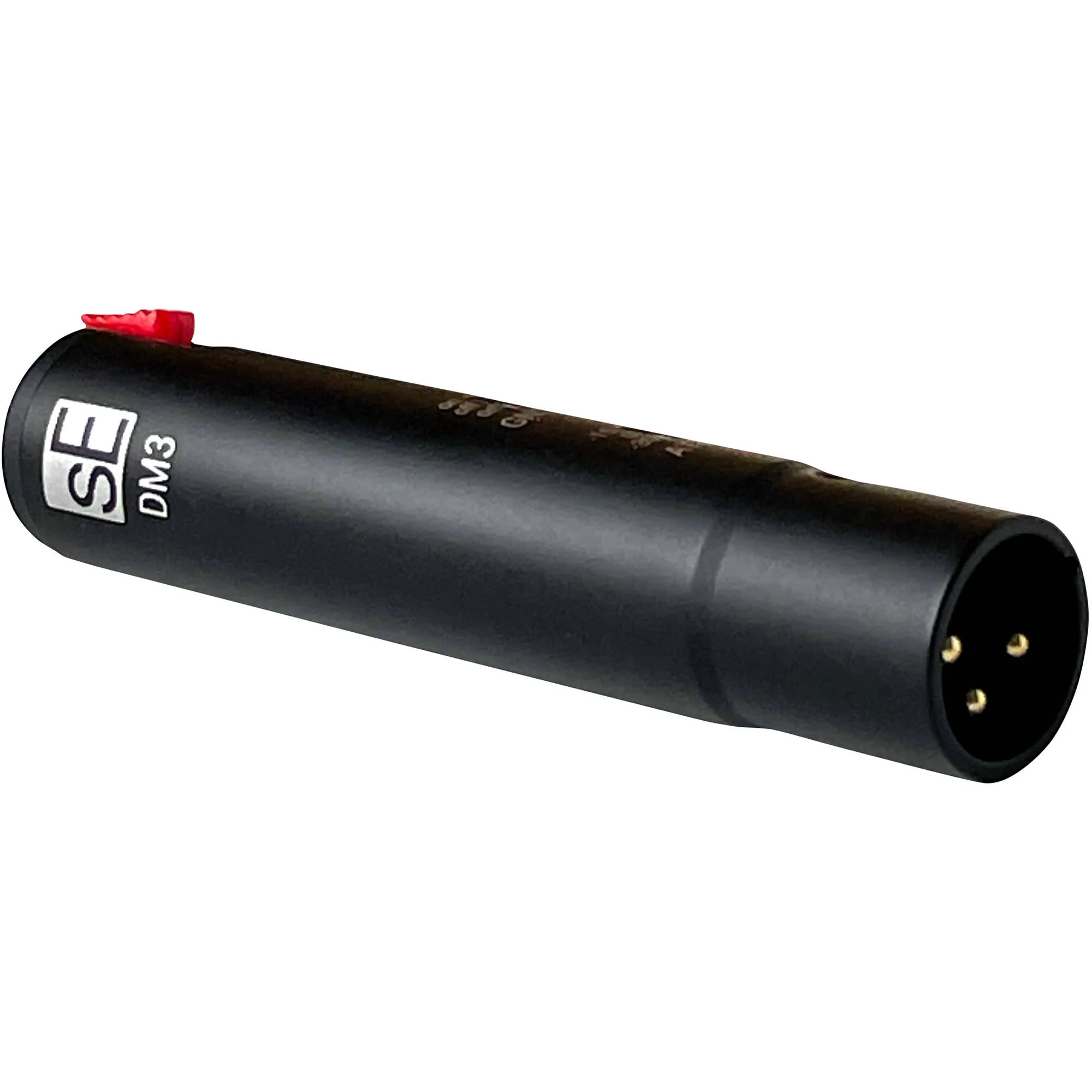

sE Electronics DM3 Overview

Styled in all black, the DM3 Dynamite In-Line Active DI from sE Electronics is an impressively compact, active DI with an ultra-Hi-Z input and massive headroom for connecting electric guitars, bass guitars, piezo pickup instruments, keyboards, synths, drum machines, laptops, and even vintage microphones while preserving the individual sonic character of each to get the best out of your instruments. Leveraging the DYNAMITE technology found in the DM1 and DM2 in-line preamps, the DM3 sports a stunning 10 Megohms of input impedance, and the ultracompact form factor ensures you can take the DI anywhere, as long as there is 48V of phantom power, commonly provided by mixers, PAs, and audio interfaces.

The DM3 comes with a switchable 15 or 30 dB input pad for high-output instruments, such as electric guitars and drum machines, and a handy three-position ground-lift switch, which can eliminate unwanted buzzing and humming in not only the low-frequencies, but also the high-frequencies as well. With a gold-plated XLR output, a locking 1/4" input, which helps avoid accidental disconnects, and a durable all-metal housing, the DM3 is ready for the rigors of the road or the dynamic needs of the studio.

The DM3 requires +48V phantom power for operation.

Dynamite Sound in Your Pocket
The DM3 employs the well-established DYNAMITE technology of the sE DM1 and DM2 in-line preamps in order to achieve high-quality sound in a pocket-sized form factor. Its ultra-Hi-Z input, massive headroom, and dedicated Class-A output buffer and amplifier ensure that you will always get the best out of your instrument. The DM3 can be directly connected to any phantom-powered XLR input, with no need for an extra cable.

  • Active in-line DI
  • Ultra-Hi-Z 1/4" input with massive 10-megohm input impedance
  • Locking 1/4" input for avoiding accidental disconnects
  • Gold-plated XLR 3-pin output
  • Extremely high headroom with Class-A output buffer and amplifier
  • Switchable 15 or 30 dB input pad for high-gain instruments
  • Three-way ground-lift switch
  • Runs off 48V phantom power

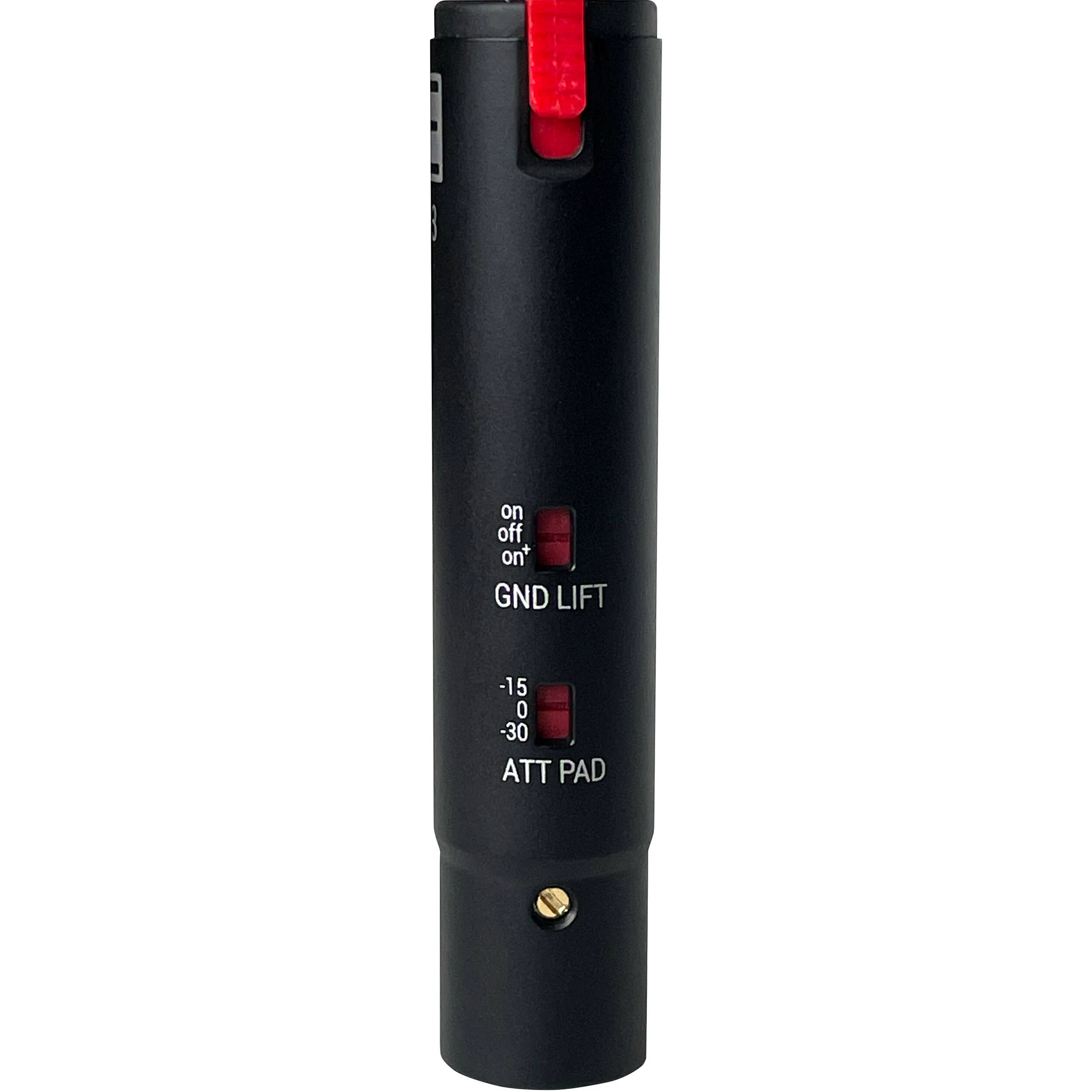

New Ground-Lift Circuitry
The DM3 features a dedicated three-position ground-lift switch. In the Off position, the ground lift is deactivated. If you are experiencing unwanted hum or buzz, a ground loop might be causing this. Turning the switch to the On position will break any such loops, greatly reducing noise. The switch's third position engages the new On+ circuitry. This innovative electronic design can help to reduce unwanted noise, not only in the low-frequency, but also in the in the high-frequency range. This is a great option if you are still experiencing a hissing sound or radio-frequency interference with the ground lift engaged.
UPC: 819032012154

Items Included

  • sE Electronics DM3 Dynamite In-Line Active DI (Black)
  • Screwdriver
  • sE 1/4" Plug Keychain
  • sE Logo Sticker
  • Limited 2-Year Manufacturer Warranty
    Registration Extension: 1-Year

Additional Resources

No additional resources available

sE Electronics DM3 Specs

General
Item Type
Standard DI
Number of Channels
Single-Channel
Active/Passive
Active
Circuitry
Solid-State
Pad
-15 / -30 dB
Ground Lift
Yes
Polarity Reverse
No
Low-Cut/High-Pass Filter
No
Connectivity
Audio I/O
1x 1/4" TRS Balanced Instrument Input
1x XLR 3-Pin Balanced Mic Output
Performance
Frequency Response
10 Hz to 120 kHz -0.3 dB
Maximum Input Level
+49 dBV
Input Impedance
10 Megohms
Output Impedance
1 Kilohm (Recommended)
Total Harmonic Distortion/Noise
? 0.5%
Power
Operating Voltage
48 V (Phantom Power)
Physical
Dimensions
3.760.79" / 95.520.07 mm
Weight
2.47 oz / 70 g
Packaging Info
Package Weight
0.265 lb
Box Dimensions (LxWxH)
6.35 x 1.25 x 1.25"

All product and company names are trademarksℱ or registered¼ trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
