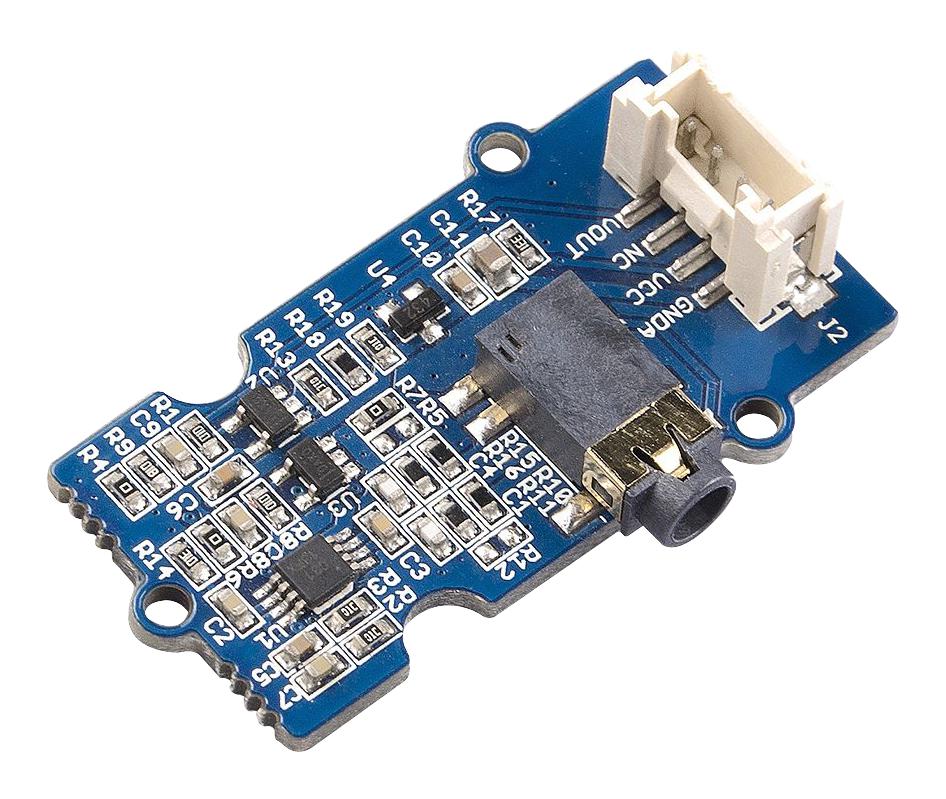

Seeed Studio 101020058 Sensor Board EMG Detector Grove

Grove - EMG detector is a bridge connects human body and electrical, the sensor gathers small muscle signal then process with 2th amplify and filter, the output signal can be recognized by Arduino. In standby mode, the output voltage is 1.5V. When detect muscle active, the output signal rise up, the maximum voltage is 3.3V. You can use this sensor in 3.3V or 5V system.

• Grove compatible
• 3.5mm connector
• 6 disposable surface electrodes
• Power supply voltage: 3.3V-5V
• 1000mm cable leads
• No additional power supply

Contents

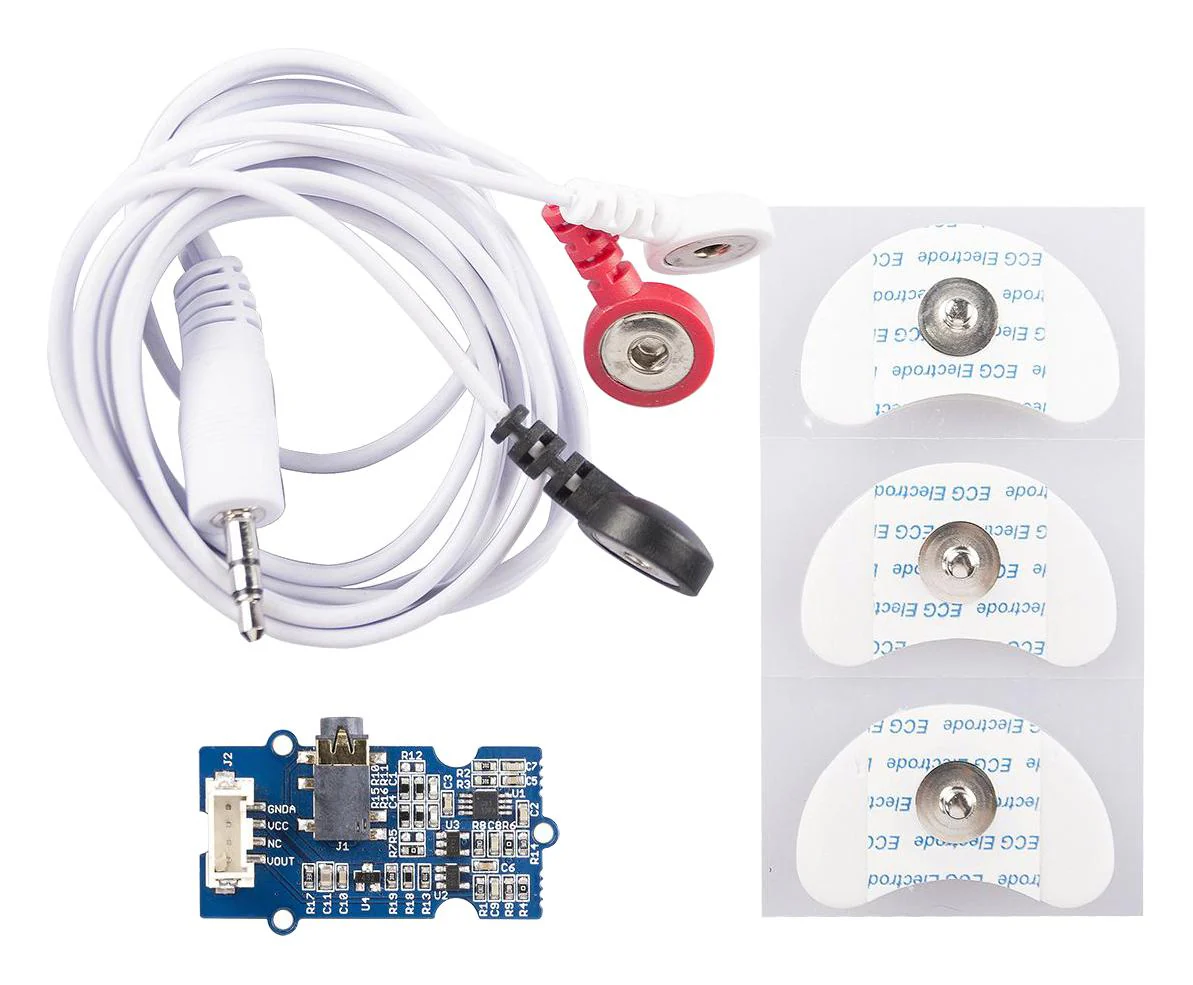

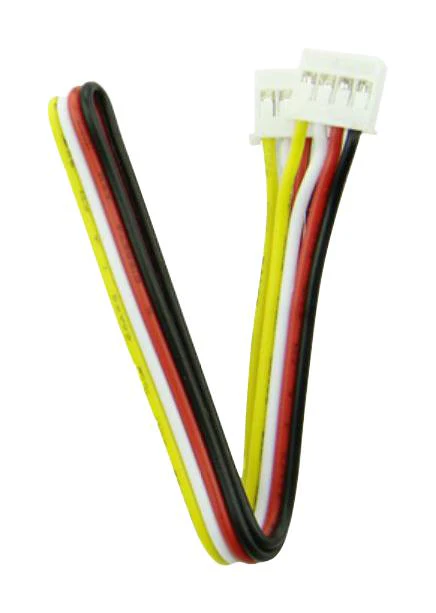

1 x grove - EMG detector, 1 x grove cable, 6 x one-off electrode, 1 x DC jacket to button connector cable 1000mm.

Other details

Brand	SEEED STUDIO
Part Number	101020058
Quantity	Each
Technical Data Sheet EN
