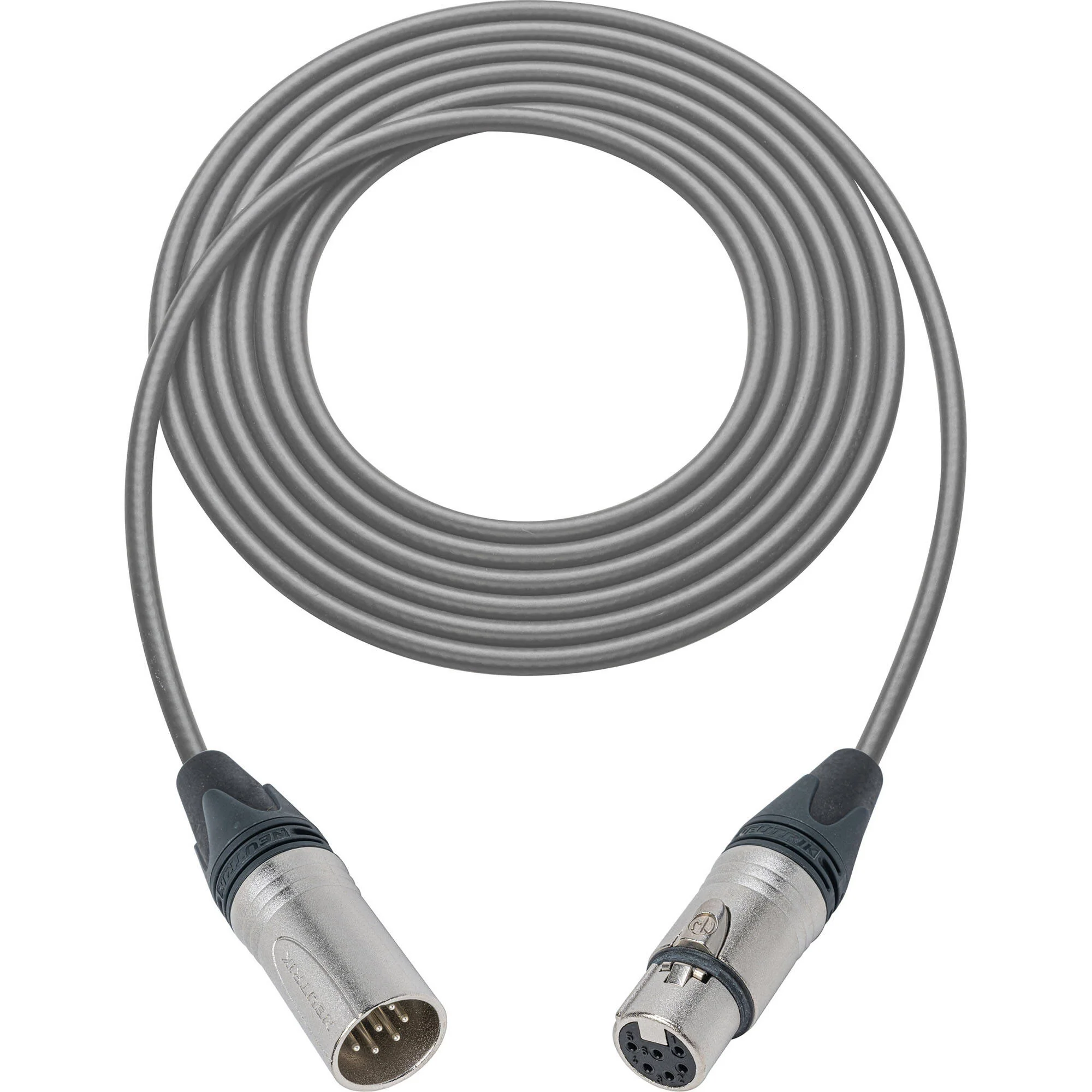

Sescom XLM6-XLF6 Belden & Neutrik 6-Pin XLR Male to 6-Pin XLR Female Audio Cable (3')
Sescom XLM6-XLF6 Overview
Ensure a secure and long-lasting connection between compatible devices with the Sescom XLM6-XLF6 Belden & Neutrik 6-Pin XLR Male to 6-Pin XLR Female Cable. The cable is designed for multiple applications including line-level, balanced analog audio applications. It's also an ideal choice for tube microphone applications, extension cables, dual-channel intercom systems, stage lighting, and professional stereo headsets with balanced microphones.
This 3' XLM6-XLF6 cable is terminated with a Neutrik NC6MXX 6-pin XLR male connector at one end and a Neutrik NC6FXX XLR 6-pin female connector at the other. Both connectors feature rugged, zinc diecast shells.
The XLM6-XLF6 utilizes rugged Belden RS-232 cable with an overall Bedfoil shield that provides 100% coverage and a semi-rigid PVC insulation to ensure a cable run that stands up to your environment. The cable offers excellent chuck strain relief to avoid shorts due to strain. It is assembled in the USA.
- Length: 3'
- Long-lasting and dependable 6-pin XLR Neutrik NC6FXX female/NC6MXX male connectors
- Rugged Belden RS-232 cable
- 8 conductors, 24 AWG, PVC jacket
- 24 AWG stranded tinned copper drain wire
- Tinned copper conductors
- Overall Beldfoil shield (100% coverage)
- Excellent chuck-type strain relief
- Rugged zinc diecast connector shells
- Semi-rigid PVC insulation
- Lifetime mating cycles: 1000
- Insertion/withdrawal force: ? 20 N
- Nominal cable diameter: 0.224"
- Bend radius: 2.25"
In the Box
- Sescom XLM6-XLF6 Belden & Neutrik 6-Pin XLR Male to 6-Pin XLR Female Audio Cable (3')
- Limited 1-Year Manufacturer Warranty
Sescom XLM6-XLF6 Specs
| Connector 1 |
1 x XLR 6-Pin Male
|
| Connector 2 |
1 x XLR 6-Pin Female
|
| Connector Brand |
Neutrik
|
| Cable Length |
3' / 0.9Ā m
|
| Number of Conductors |
8
|
| Wire Gauge |
24 AWG
|
| Outer Diameter |
0.224" / 5.69Ā mm
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Color |
Black
|
| Shielding |
100% Aluminum Foil
|
| Bend Radius |
2.25" / 5.71Ā cm
|
| Package Weight |
0.245 lb
|
| Box Dimensions (LxWxH) |
7.8 x 5.8 x 1.25"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
