SHAPE Camera Cage, Top Handle & Shoulder Baseplate with Handgrips Kit for RED KOMODO
HomeStore

SHAPE Camera Cage, Top Handle & Shoulder Baseplate with Handgrips Kit for RED KOMODO

SHAPE Camera Cage, Top Handle & Shoulder Baseplate with Handgrips Kit for RED KOMODO

SHAPE KOMOBR Overview

  • 1Description
  • 2SHAPE Camera Cage with Top Handle for RED KOMODO
  • 3SHAPE Compact Quick Handle ARRI Rosette (Black)
  • 4SHAPE Compact Revolt Shoulder Baseplate
  • 5SHAPE 15mm Aluminum Rods (Pair, 8")
  • 6SHAPE 15mm Aluminum Rods (Pair, 4")
RED KOMODO

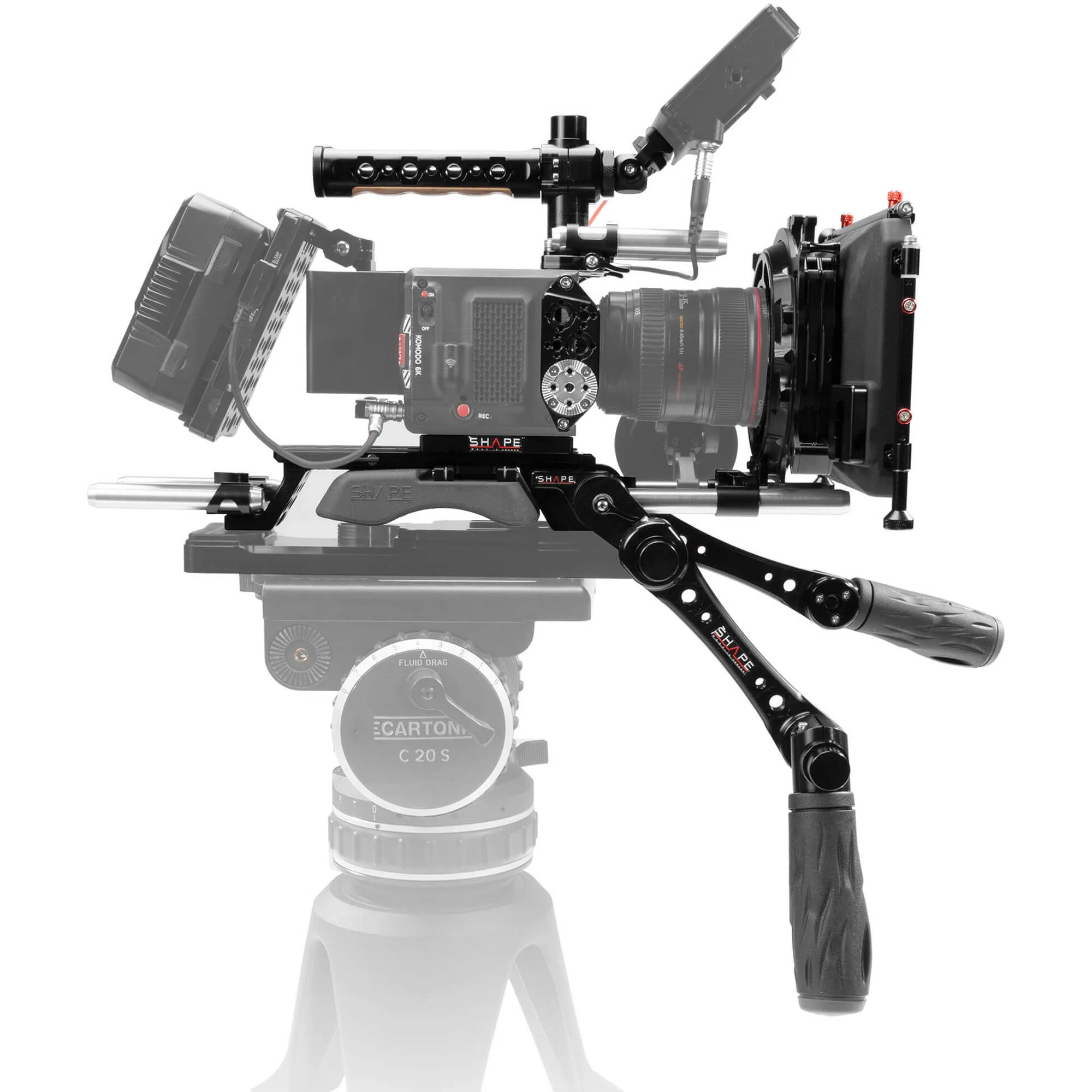

Turn your RED KOMODO cinema camera into an ergonomic shoulder-mounted camera system with this SHAPE Camera Cage, Top Handle & Shoulder Baseplate with Handgrips Kit for RED KOMODO. The cage is the centerpiece, wrapping your camera in an external shell that allows you to attach accessories without straining the camera. The included top handle mounts on the cage, it is easy to adjust, and features multiple 1/4"-20 and 3/8"-16 mounting holes, as well as a tilting bracket suitable for adding accessories.

The Compact Revolt Shoulder Baseplate is designed to take your camera and rig from a tripod with a VCT mounting system (not included) to your shoulder without having to break down your rig. Rounding out this kit and making for comfortable handholding are the left- and right-side handgrips with built-in extensions. These rubber-coated grips feature ARRI-style rosettes that attach to the baseplate and have two points of articulation, using the push-button adjustment system that allows for fast, secure, and one-handed adjustments.

SHAPE Camera Cage with Top Handle for RED KOMODO

Add flexible carrying and improved accessory mounting, while protecting your RED KOMODO cinema camera with this SHAPE Camera Cage with Top Handle for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.

The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera, you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera.

Rod Block

The Top Handle

  • Mounts on your cage
  • Utilizes the push-button release system that allows you to adjust the orientation using a single hand
  • Adjustments can be made on the fly, without stopping the shoot to loosen, adjust, and then tighten levers
  • Press the release button, adjust the position, and release the button
  • A removable bracket slides into the cold shoe on the front of the top handle and allows you to mount accessories up to 4.4 pounds
  • The top handle offers nine 1/4"-20 threaded mounting holes and twelve 3/8"-16 mounting holes with anti-twist divots
  • It features aluminum construction with a strip of maple wood for comfort

Cage

The advantage of the cage is it provides a rigid external frame to your RED KOMODO for attaching accessories without stressing or damaging your camera's body.

Accessorize

The RED KOMODO camera's boxy shape is efficient, though not very ergonomically friendly. The cage allows you to add optional grips to your camera via the ARRI-style rosettes, providing the opportunity of making the camera more handheld friendly.

Accessory Mounting on the Cage

  • Multiple 1/4"-20 accessory mounting threads for attaching a variety of available accessories, such as articulating arms.

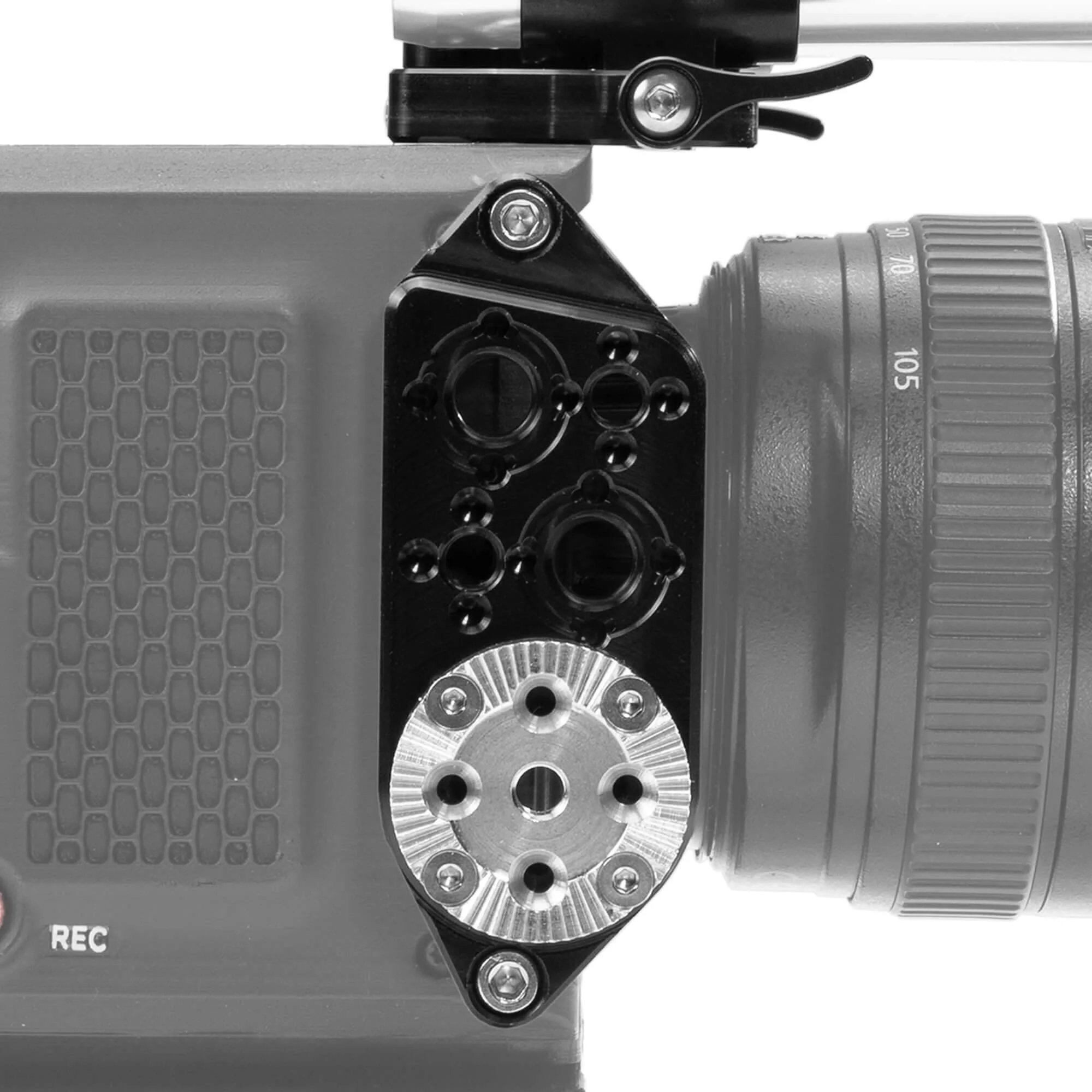

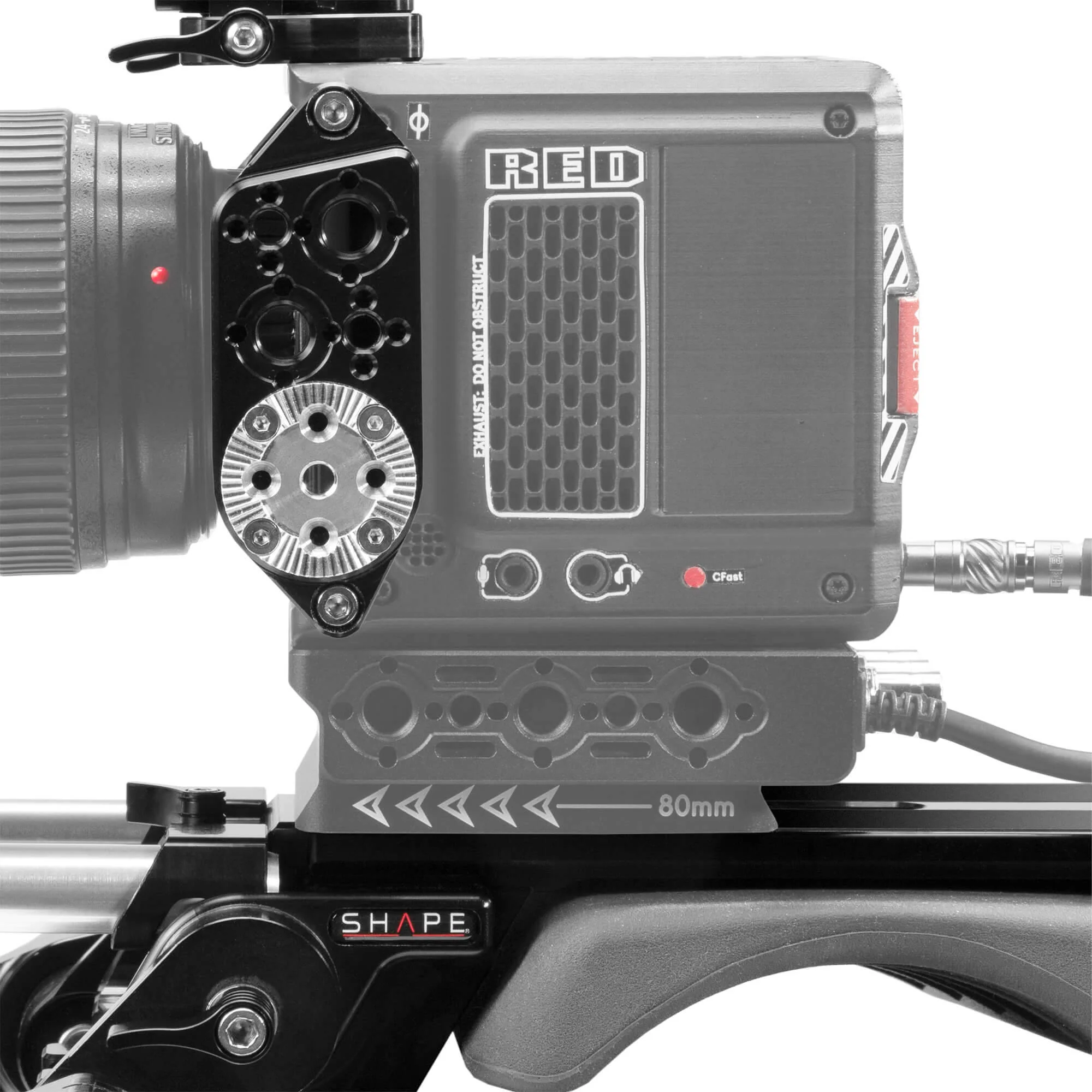

  • Additional 1/4"-20 and 3/8"-16 threaded holes with ARRI-style anti-twist divots allow you to attach accessories that stay secure and won't unexpectedly twist, which usually happens at the worst moment, ruining the shot.
  • Two individual 15mm spring-loaded rod clamps can be mounted on the cage for adding rod-mounted accessories.

Rod Clamps

The individual rod clamps can be attached to the cage and allow you to mount optional 15mm rods. Each clamp uses a spring-loaded lever for securing your rod in the clamp.
UPC: 629266102350

SHAPE Compact Quick Handle ARRI Rosette (Black)

The black SHAPE Compact Quick Handle ARRI Rosette consists of a left- and right-hand articulating arm with rubber handgrip. Each arm features a rosette with an M6 metric screw for attaching the handle to cameras and baseplates with ARRI rosettes. Each handle features two points of articulation actuated with SHAPE's patented quick-lock buttons.

The arms attach via the rosettes allowing you to select the attachment angle. Each arm also has two each 1/4"-20 and 3/8"-16 threaded mounting holes with anti-twist indents for attaching accessories. The quick-lock buttons are located at the articulation points, one towards your baseplate and the other controlling the angle of the rubber handgrip.

Incorporates SHAPE's patented quick-lock buttons
Consists of a handle and an arm
Quick-lock button located at the articulation between the handle and the arm allows you to rotate the arm up to a full 360°
Pushing and holding down the quick-lock button allows rotating the arm/handle, and releasing it keeps the handle locked and firmly in place
UPC: 629266009369

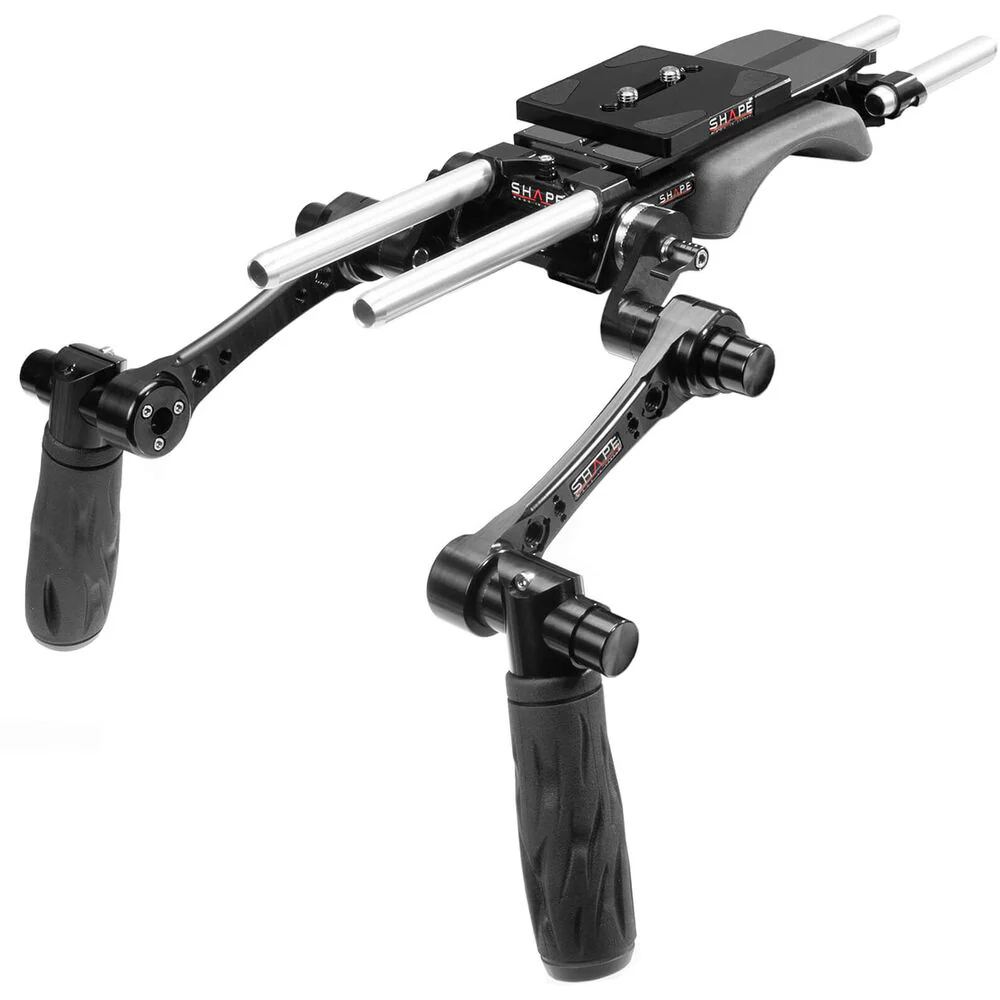

SHAPE Compact Revolt Shoulder Baseplate

The SHAPE Compact Revolt Shoulder Baseplate is a lightweight baseplate suitable for use by neophytes and professionals alike. Made from CNC-machined aluminum, the baseplate is made to withstand the rigors of the production day. The shoulder pad allows it to sit comfortably on your shoulder. The top of the baseplate features two rubber strips to protect your camera. It incorporates two ARRI-compatible rosettes for attaching handle accessories. The top of the baseplate features a 3.5"-long slot that enables adjusting your camera's position for balance adjustments.

Front and rear 15mm LWS rod clamps enable you to mount the included 8 and 4" pairs of rods to support you lens accessories in front, and power/monitoring accessories in the rear. An included 3mm Allen Key allows you to adjust the rod clamps, and the rear rod clamp is removable and attaches to the Revolt Shoulder Baseplate by two M4 screws. On the bottom of the baseplate is a V-lock plate that is compatible with most VCT baseplates. The V-lock plate has both a 1/4"-20 and 3/8"-16 threaded mounting hole.

The ARRI-compatible rosettes feature M6 threading
Front and rear 15mm rod clamps have spring-loaded locking levers
Slip-free gel shoulder pad
The shoulder plate is equipped with 1/4-20 and 3/8-16 threaded holes, allowing extra screws to be stored, and a magnet is provided at the back to attach the included Allen key
Designed with a standard V-lock plate that is compatible with most VCT tripod plates
Includes both 4 and 8" 15mm support rod pairs
Camera platform tilts on hinges to allow access to the camera tie-down screws, and it is held in place by powerful magnets that hold the plate closed
UPC: 629266009338

SHAPE 15mm Aluminum Rods (Pair, 8")

This pair of Shape 15mm Aluminum Rods (8") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.


The rods are each 15mm in diameter, 8 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

UPC: 629266001691

SHAPE 15mm Aluminum Rods (Pair, 4")

This pair of Shape 15mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.


The rods are each 15mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

UPC: 629266001677

In the Box

  • SHAPE Camera Cage with Top Handle for RED KOMODO
    • Top Handle with Tilting Bracket
    • Top Plate
    • 2 x Side Riser Plate with ARRI Rosette
    • 2 x SHAPE 15mm LW Clamp for Top Handle Grip
    • 2 x 1/4"-20 Socket Head Cap Screw
    • 4 x M4 Screw
    • 3mm Allen Key
    • 3/16" Allen Key
    • Limited Lifetime Warranty
  • SHAPE Compact Quick Handle ARRI Rosette (Black)
    • 2 x Quick Handle Rosette
    • 2 x M6 Metric Screw
    • Limited Lifetime Warranty
  • SHAPE Compact Revolt Shoulder Baseplate
    • SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
    • SHAPE 15mm Aluminum Rods (Pair, 8")
    • SHAPE 15mm Aluminum Rods (Pair, 4")
    • 2 x 1/4"-20 Screw
    • 2 x 3/8"-16 Screw
    • 3mm Allen Wrench
    • Limited Lifetime Warranty
  • SHAPE 15mm Aluminum Rods (Pair, 8")
    • Limited Lifetime Warranty
  • SHAPE 15mm Aluminum Rods (Pair, 4")
    • Limited Lifetime Warranty
    Table of Contents
    • Description
    • SHAPE Camera Cage with Top Handle for RED KOMODO
    • SHAPE Compact Quick Handle ARRI Rosette (Black)
    • SHAPE Compact Revolt Shoulder Baseplate
    • SHAPE 15mm Aluminum Rods (Pair, 8")
    • SHAPE 15mm Aluminum Rods (Pair, 4")

    SHAPE Camera Cage with Top Handle for RED KOMODO Specs

    Mounting
    Rod Standard 15 mm LWS / 60 mm Spacing
    Battery Plate Type None
    Accessory Mounting Cage, Top: 9 x 1/4"-20 Thread, 4 x Anti-Twist 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread
    Cage, Sides: 4 x Anti-Twist 1/4"-20 Thread, 4 x Anti-Twist 3/8"-16 Thread
    Top Handle, Top: 3 x 1/4"-20 Thread, 4 x Anti-Twist 3/8"-16 Thread
    Top Handle, Sides: 6 x 1/4"-20 Thread, 8 x ARRI Anti-Twist 3/8"-16 Thread
    Rod Ports 2 x 15 mm Rod Port
    Shoe Mounting Top Handle, Front: 1 x Cold Shoe
    Rosettes Cage, Sides: 2 x ARRI Rosette w/ M6 Thread
    General
    Support Type Cage
    Grip Type Topside Handgrip
    Camera Compatibility RED KOMODO
    Construction Aluminum, Wood
    Dimensions 7.6 x 7.2 x 4.4" / 19.3 x 18.3 x 11.2 cm
    Weight 1.38 lb / 0.63 kg
    Packaging Info

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
