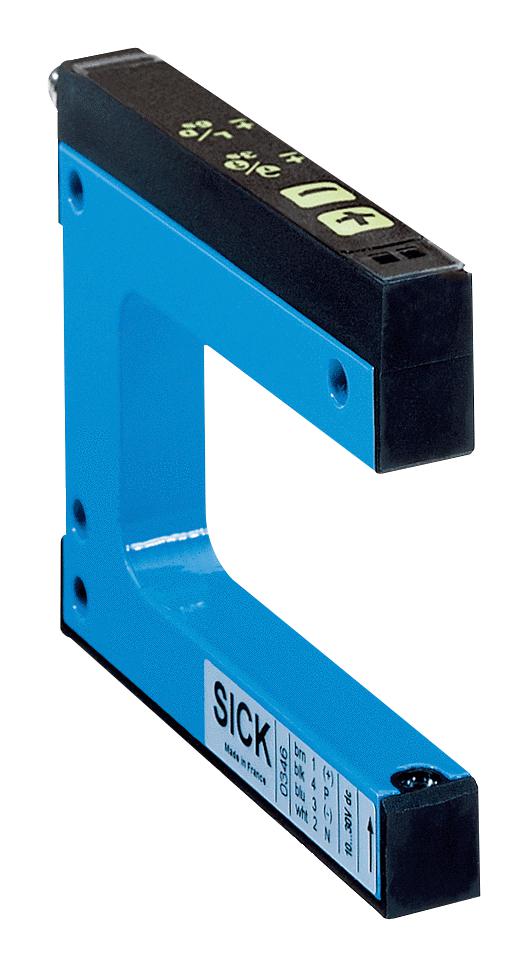

SICK WF2-40B410 Fork Sensor, 2 mm, NPN / PNP, 10 to 30 VDC, WF Series
- WF series fork sensor
- Optical detection principle functional principle, fork shaped housing design
- 2mm fork width, 42mm fork depth, 0.2mm minimum detectable object (MDO)
- Label detection, LED/ infrared/infrared light source, 850nm wave length
- Plus/minus button (sensitivity, light/dark switching, key lock) adjustment
- Light/dark switching, selectable via button output function, IP65 enclosure rating
- 10VDC to 30VDC supply voltage range, 40mA current consumption
- 10KHz switching frequency, PNP/NPN switching output
- 100mA max output current, male connector M8, 4-pin connection type
- Dimension (W x H x D) is 10 x 32 x 57mm, ambient operating temperature range from -20Ā°C to +60Ā°C
Product details
| Sensor Output: NPN / PNP |
| Sensing Range Max: 2mm |
| Supply Voltage DC Min: 10V |
| Supply Voltage DC Max: 30V |
| Output Current: 40mA |
| Product Range: WF Series |
Other details
| Brand | SICK |
| Part Number | WF2-40B410 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
