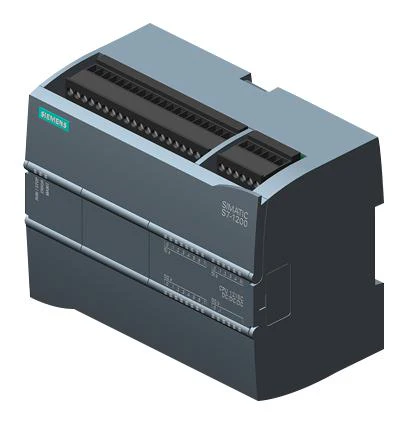

SIEMENS 6ES7215-1AG40-0XB0 CPU, 2 Inputs/2 Outputs Analogue, 14 Inputs/10 Outputs Digital, 24 VDC, IP20, SIMATIC S7-1200 Series
SIEMENS 6ES7215-1AG40-0XB0 CPU, 2 Inputs/2 Outputs Analogue, 14 Inputs/10 Outputs Digital, 24 VDC, IP20, SIMATIC S7-1200 Series
Product Overview
6ES7215-1AG40-0XB0 is a SIMATIC S7-1200 compact CPU. It is approved by UL and cULus.
- STEP 7 V18 or higher programming package
- Rated value is 24VDC, current consumption (rated value) is 500mA (CPU only)
- 1500mA max current consumption (CPU with all expansion modules)
- 12W typ power loss, 200kbyte integrated work memory
- 4Mbyte integrated load memory, Ā±60s/month at 25Ā°C max deviation per day
- Switching frequency is 100KHz max (of the pulse outputs, with resistive load)
- 100Mbit/s max transmission rate, IP20 rating
- 130mm width, 100mm height, 75mm depth
- Ambient temperature range from -20Ā°C to 60Ā°C
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7215-1AG40-0XB0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$434.27
Original: $1,447.57
-70%SIEMENS 6ES7215-1AG40-0XB0 CPU, 2 Inputs/2 Outputs Analogue, 14 Inputs/10 Outputs Digital, 24 VDC, IP20, SIMATIC S7-1200 Seriesā
$1,447.57
$434.27SIEMENS 6ES7215-1AG40-0XB0 CPU, 2 Inputs/2 Outputs Analogue, 14 Inputs/10 Outputs Digital, 24 VDC, IP20, SIMATIC S7-1200 Series
Product Overview
6ES7215-1AG40-0XB0 is a SIMATIC S7-1200 compact CPU. It is approved by UL and cULus.
- STEP 7 V18 or higher programming package
- Rated value is 24VDC, current consumption (rated value) is 500mA (CPU only)
- 1500mA max current consumption (CPU with all expansion modules)
- 12W typ power loss, 200kbyte integrated work memory
- 4Mbyte integrated load memory, Ā±60s/month at 25Ā°C max deviation per day
- Switching frequency is 100KHz max (of the pulse outputs, with resistive load)
- 100Mbit/s max transmission rate, IP20 rating
- 130mm width, 100mm height, 75mm depth
- Ambient temperature range from -20Ā°C to 60Ā°C
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7215-1AG40-0XB0 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
