Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch with USB 2.0 & Aux Emulation
Smart-AVI SM-EDPN-4Q-S Overview
Control up to four systems with the 4-Port Quad-Head DisplayPort KVM Switch from Smart-AVI. Keep your windows and monitor configurations intact with EDID emulation, ensuring smooth and seamless transitions when switching between devices. This KVM switch supports resolutions up to 3840 x 2160 at 60 Hz from the four DisplayPort 1.2 outputs and sixteen DisplayPort 1.2 inputs.
Connect peripherals and other devices using the four USB-B 2.0 ports, two USB-A 2.0, and two USB-A 1.1 ports, the latter of which are used for a keyboard and mouse. Four 3.5mm TRRS stereo audio input ports are provided, along with a single TRRS audio output port. An RS-232 serial port is included for legacy controller options if you need to connect this KVM to complex A/V systems. The SM-EDPN-4Q-S supports most operating systems, including Windows, macOS, Linux, Sun, Unix, and DOS.
- EDID video emulation, so window and monitor configurations remain intact when switching channels.
- Supports resolutions up to 3840 x 2160 at 60 Hz.
- Supports USB keyboard and mouse emulation.
- Supports additional USB 2.0 devices like printers, scanners, web cameras and more.
- Flash upgradeable firmware.
- Stereo audio support.
- Front panel keys for manual port selection.
- Hot-key commands for quick port selection.
- RS-232 port for serial communication.
- Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer.
- Supports major operating systems including Windows, Mac, Linux, Sun, Unix, DOS, and more.
- Server collocation
- Digital signage
- Education
- Airports
- Dealer rooms
- Control rooms
- Audio/visual presentations
- Shopping centers
- Hotels and resorts
Items Included
- Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch with USB 2.0 & Aux Emulation
- Smart-AVI Power Supply 12VDC - 2A / Wallmount
- Limited 1-Year Manufacturer Warranty
Additional Resources
Smart-AVI SM-EDPN-4Q-S Specs
| # of Systems Supported |
4
|

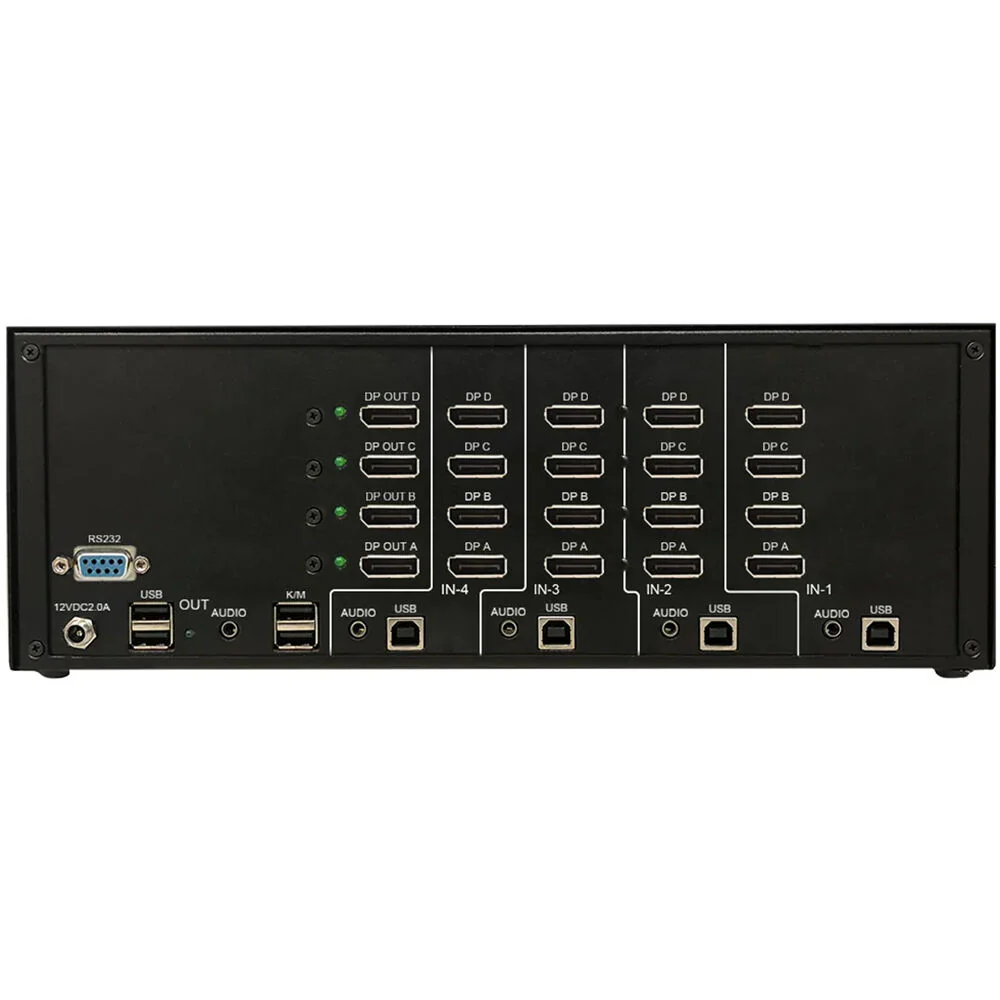

| Console I/O |
4x DisplayPort 1.2 Female
1x 1/8" / 3.5 mm Audio-Out Female 1x DE-9/DB-9 (RS-232) Female 2x USB-A 2.0 Female 2x USB-A 1.1 (Keyboard/Mouse) Female |
| KVM I/O |
16x DisplayPort 1.2 Female
4x USB-B 2.0 Female 4x 1/8" / 3.5 mm Line-In Female |
| OS Compatibility |
Windows / macOS / Linux / UNIX
|
| Supported Resolutions |
3840 x 2160 @ 60 Hz
|
| USB Keyboard/Mouse Emulation |
Yes
|
| Power Source |
AC Adapter
|
| Input Power |
12 VDC at 2 A
100 to 240 VAC, 50 / 60 Hz |
| Operating Conditions |
32 to 104?F / 0 to 40?C up to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C up to 80% Humidity
|
| Rack Mountable |
No
|
| Dimensions |
12.6 x 6.7 x 4.9" / 32.0 x 17.0 x 12.4Ā cm
|
| Weight |
4.0Ā lb / 1.8Ā kg
|
| Package Weight |
5.48 lb
|
| Box Dimensions (LxWxH) |
16.7 x 10.4 x 6.4"
|
