Stego 01230.0-00 Hygrotherm Electronic ETF 012 0° to 60° C 50 90% RH 100 240 Vac

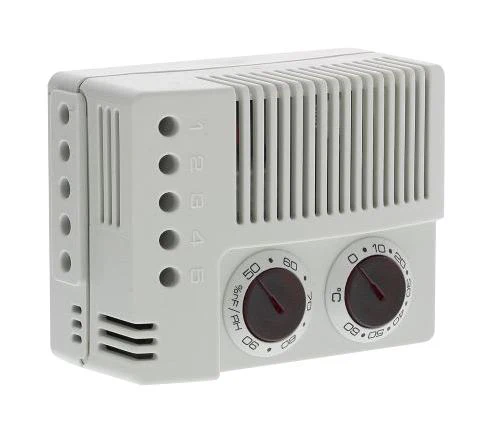

The 01230.0-00 is an Electronic Hygrotherm with light grey plastic housing. The ETF 012 senses the ambient temperature and relative air humidity in an enclosure. Depending on which contact combination it turns ON or OFF a connected device if either the temperature is below or the humidity is above the set point. The integrated LED in each adjustment knob is lit when indicating the active function.

• IP20 Protection rating
• UL94V-0 Flammability rating
• Efficient temperature and humidity control
• Wide voltage range
• Operating temperature down to -40°C
• High switching capacity
• DIN rail mountable

Applications

Industrial

Product details

External Height - Imperial	3.03"
External Height - Metric	77mm
External Width - Imperial	2.36"
External Width - Metric	60mm
External Depth - Imperial	1.69"
External Depth - Metric	43mm
Moisture Removal Rate	-
Operating Voltage	240VAC
Product Range	-

Other details

Brand	STEGO
Part Number	01230.0-00
Quantity	Each
Technical Data Sheet EN
