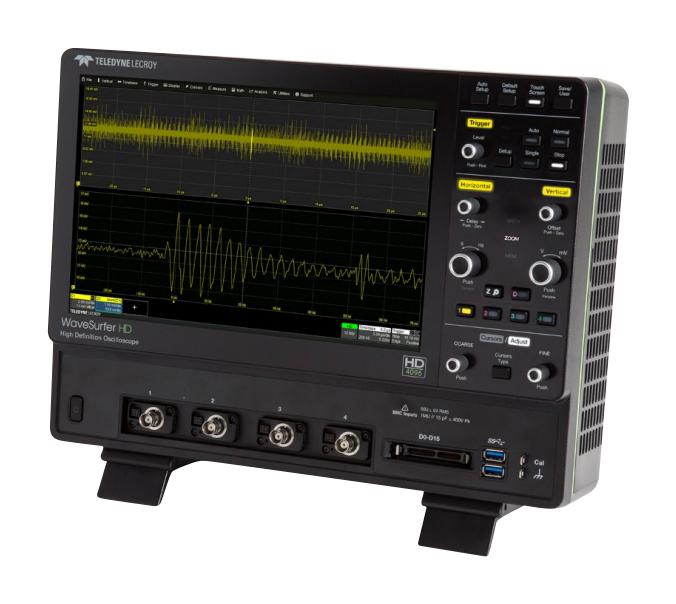

TELEDYNE LECROY WAVESURFER 4024HD PROMO2 Digital Oscilloscope, PROMO2, WaveSurfer 4000HD Series, 4 Analogue, 200 MHz, 2.5 GSPS, 12.5 Mpts

WAVESURFER 4024HD PROMO2 is a WaveSurfer 4000HD series DSO with fully loaded promotion package. It provides the Most Advanced User Interface (MAUI) through a 10.1� capacitive touch screen. It promotes true versatility with 20Mpts of interleaved memory, multi-instrument capabilities and a powerful, deep toolbox.

• 200MHz bandwidth, 4 analogue channels, 2.5GS/s sample rate
• 1.75ns rise time, 12.5Mpts standard memory
• 12.1� 1280 x 800 capacitive touch screen display
• Buttons/indicators color-coded to associated waveform on display
• MAUI with OneTouch user interface for intuitive and efficient operation
• USB 3.1 ports for easy connectivity, USBTMC over USB 2.0 for data offload, HDMI output
• 1 x 10/100BaseT Ethernet interface (RJ45 port)
• 16GB Micro SD card installed standard
• Dimension is (HWD) 10.7� H x 14.9� W x 6.3� D (273mm x 380mm x 160mm)

Contents

WaveSurfer 4000HD Oscilloscope, Fully loaded promotion package (WS4KHD-FG, WS4KHD-EMB TD, WS4KHD-PWR, WS4KHD-AUDIO TD, WS4KHD-AUTO TD), 10 passive probe (total of 1 per channel), 1 micro SD card (installed), Micro SD card adapter, Protective front cover, Getting started guide, Commercial NIST traceable calibration with certificate, Power cable for the destination country, 3-year warranty.
