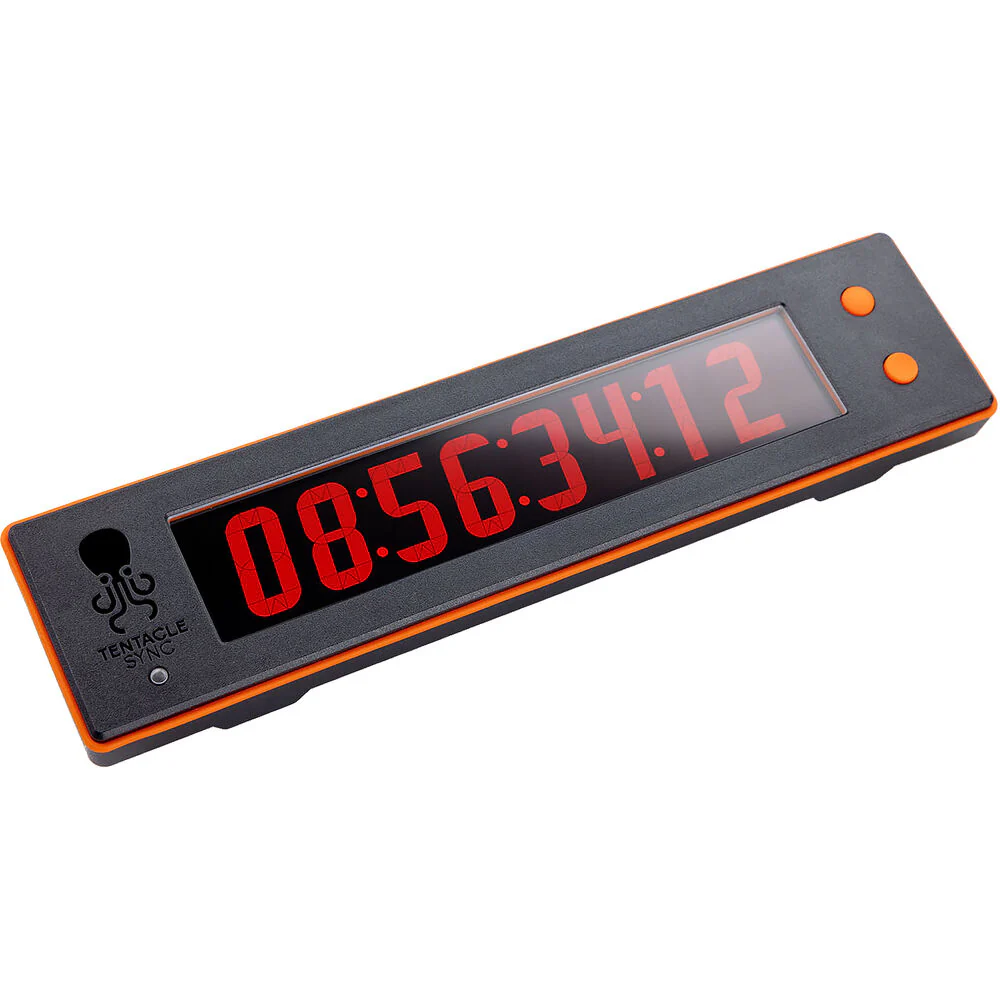

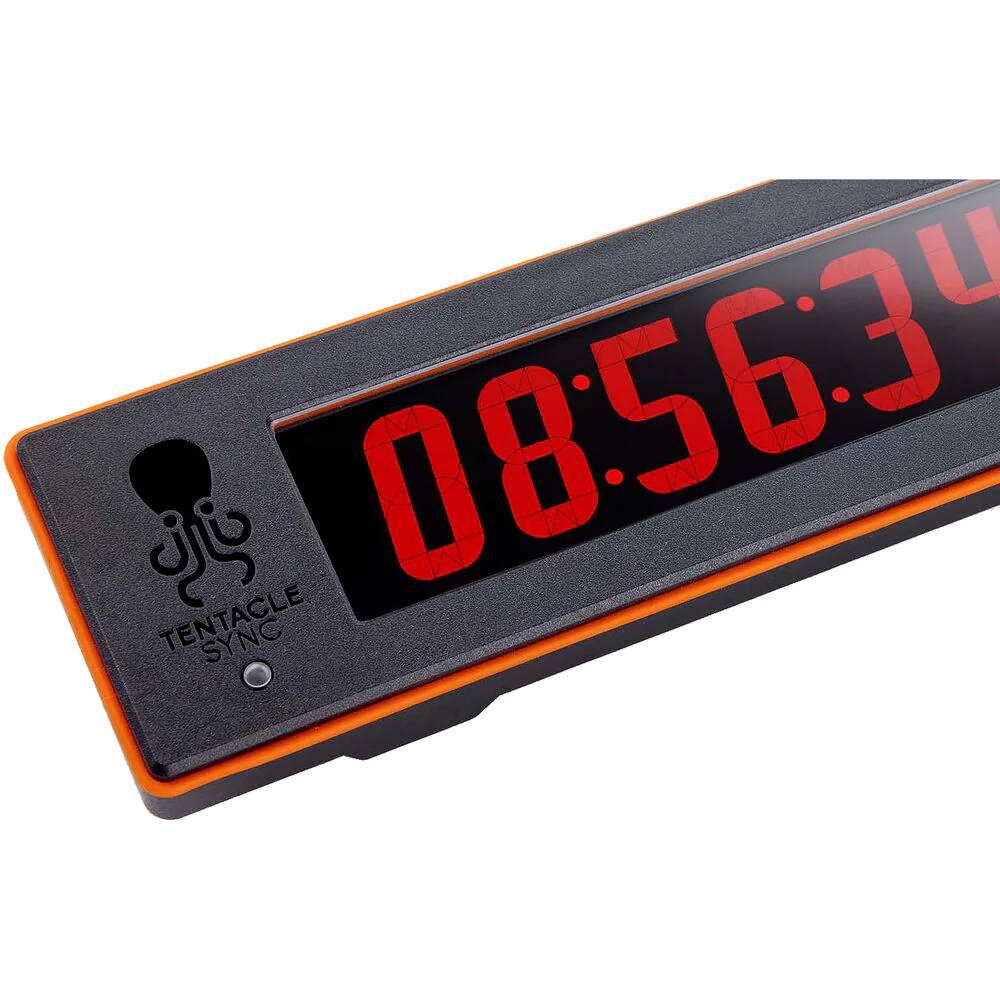

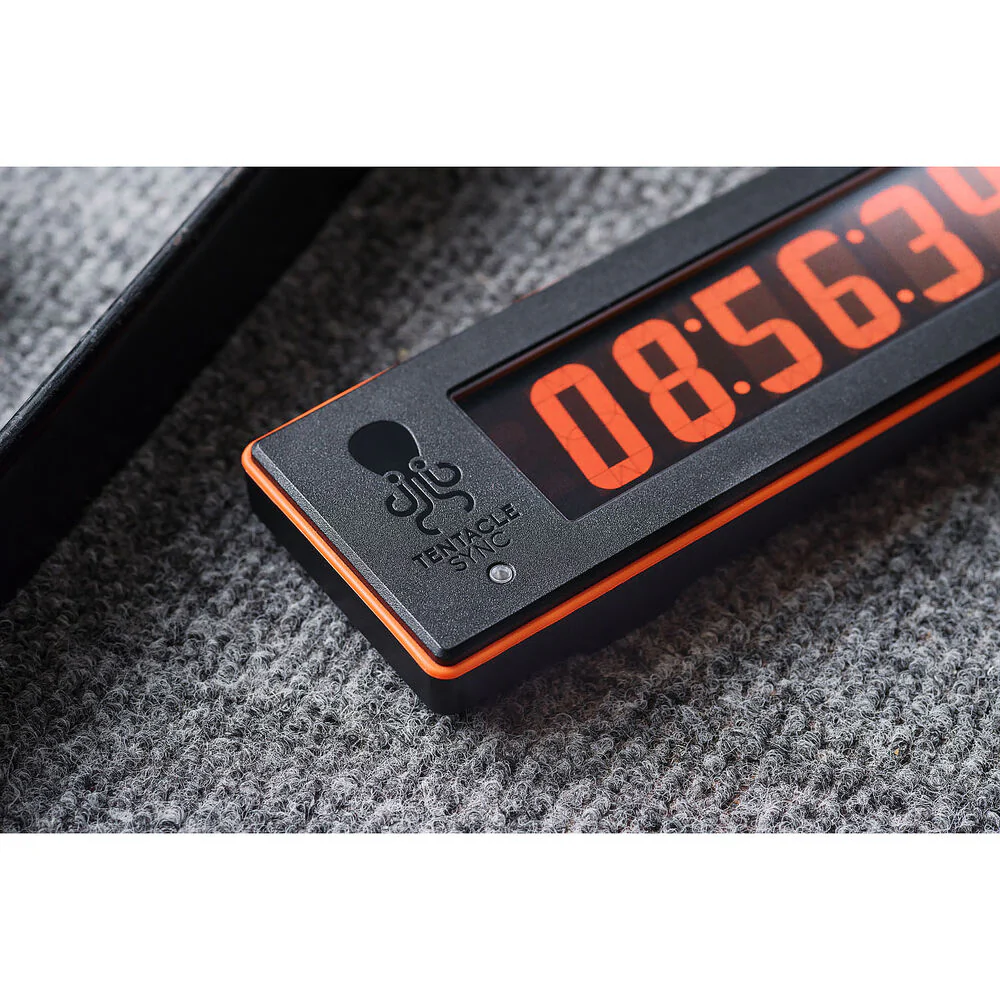

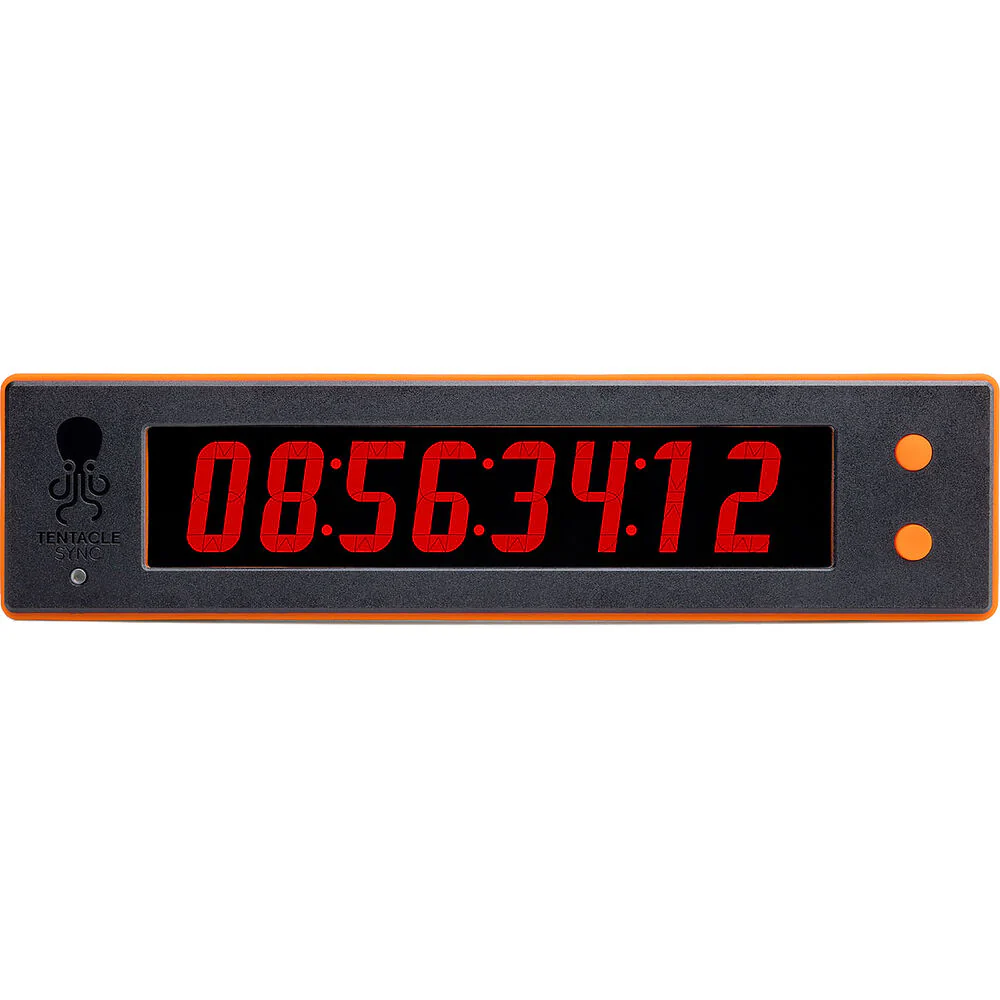

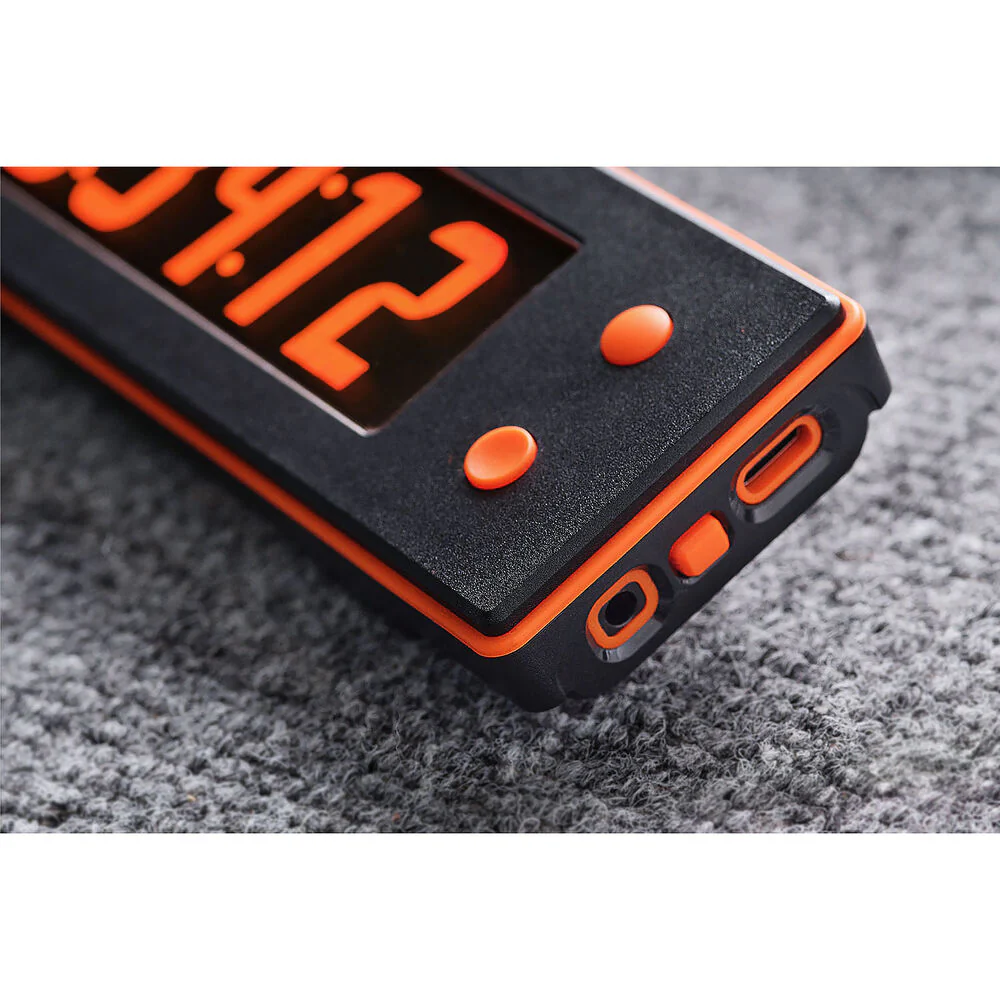

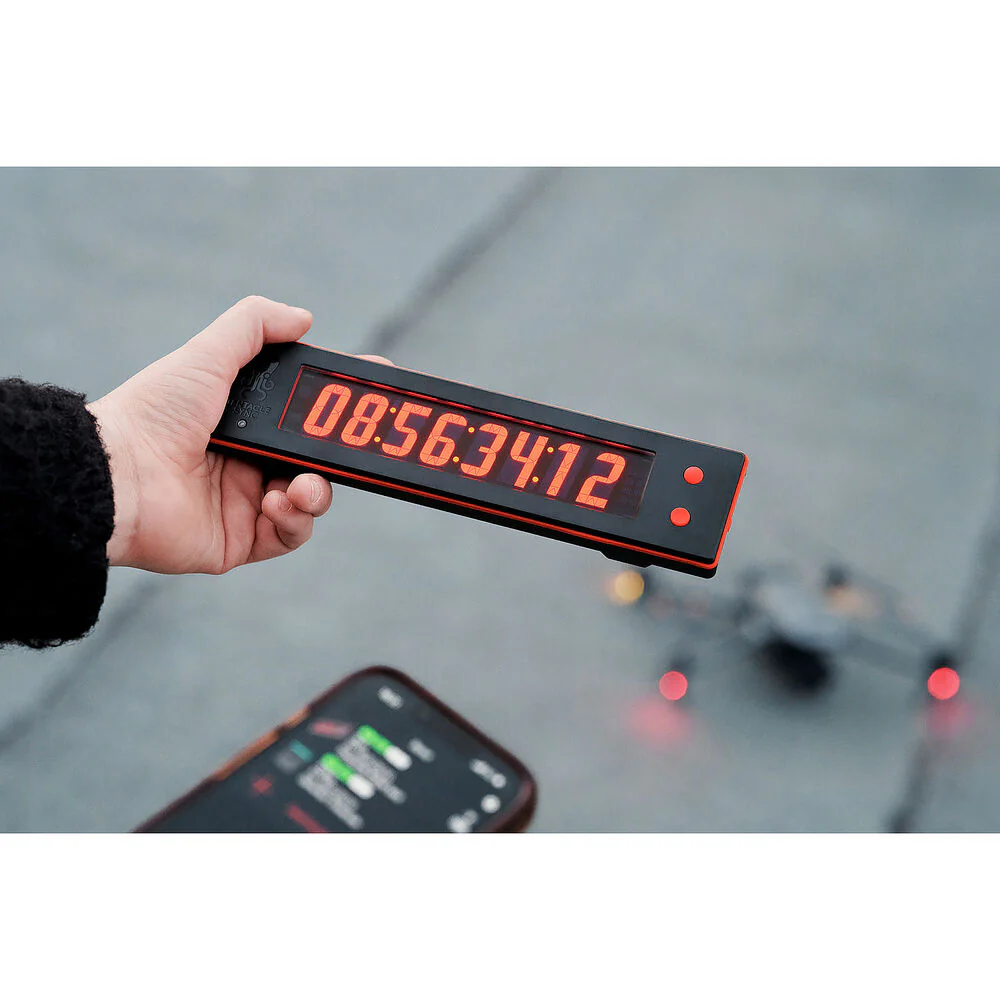

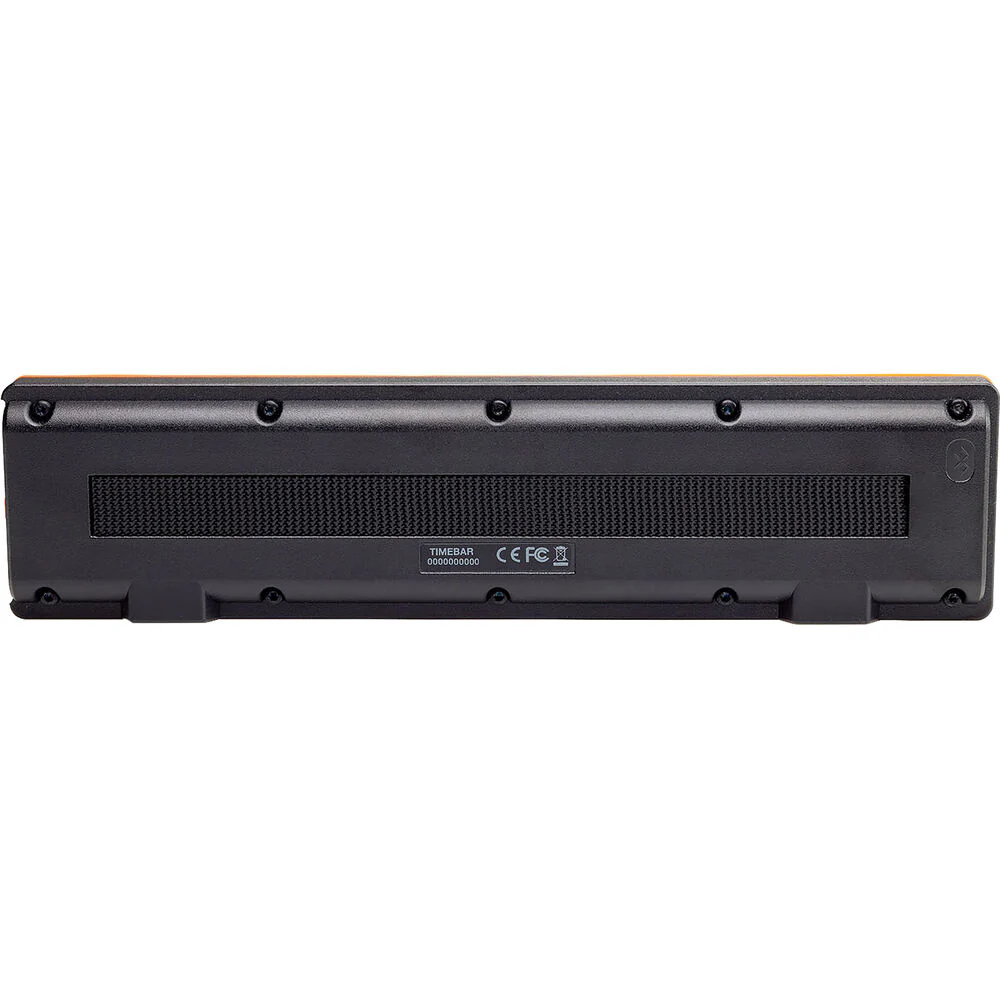

Tentacle Sync Timebar Multipurpose Timecode Display
Tentacle Sync TR1 Overview
Make your timecode visible and ensure precise timing and coordination for all your cameras in post-production with the Tentacle Sync Timebar Multipurpose Timecode Display, ideal for directors and team members in the studio and on set. A solution for cameras without timecode inputs, Timebar features a high-contrast OLED display with a unique alphanumeric design and wide viewing angle that enables easy tracking of timecode, enhancing workflow efficiency in any production environment.
The OLED display not only provides high contrast, but it also ensures low energy consumption, allowing the Timebar to last throughout the entire day. To facilitate sustainable and long-term use, both the battery and the OLED display are easily replaceable.
- Timebar can serve as a reliable timecode generator or a timecode display for directors and the team.
- Timebar can be used as a timer, countdown, or stopwatch device for presenters and content creators.
- Its versatility extends to displaying text messages via the Setup app, making it a true multi-tool among timecode displays.
- Timebar seamlessly integrates into the overall Tentacle workflow, allowing easy and intuitive operation through the familiar Setup app via Bluetooth. This ensures a smooth and efficient experience for users in various production scenarios.
- Unlock unparalleled control and synchronization with the Timebar through the company's Setup app's seamless compatibility with SYNC E and TRACK E.
- With just a few taps on your smartphone, you can effortlessly manage, sync, and operate the Timebar via Bluetooth.
- Built-in rechargeable lithium-ion polymer battery (2200mAh).
- Battery operating time: 6 hours (highest brightness) to 80 hours (lowest brightness).
- Standard charge: 4 to 5 hours.
- Fast charge: 2 hours.
- Drift: High-precision TCXO (0.2 ppm) / accuracy less than 1 frame drift in 24 hours (-22 to +185°F).
- 3.5mm connector: Timecode in/out.
- Tentacle Sync Studio Software License included.
Items Included
- Tentacle Sync Timebar Multipurpose Timecode Display
- 3.5mm to Straight BNC Cable
- USB-A to USB-C Cable
- Zipper Bag
- Software License for Tentacle Sync Studio
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Tentacle Sync TR1 Specs
| Frame Rate |
SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF, 30
|
| USB I/O |
1 x USB-C Female Input
|
| Timecode |
I/O Connector: 1/8" / 3.5mm
|
| Wireless |
Bluetooth 5.2
*Built-In |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Tentacle Setup App |
| Global Positioning (GPS, GLONASS, etc.) |
Yes
|
| Battery Chemistry |
Lithium-Ion Polymer (LiPo)
|
| Battery Capacity |
2200 mAh
|
| Recharge Time |
4 to 5 Hours
|
| Maximum Battery Life |
80 Hours
|
| Mounting |
1x Integrated Hook Surface
|
| Color |
Black / Orange
|
| Dimensions |
8.3 x 2.1 x 0.7" / 211 x 54 x 19Â mm
|
| Weight |
7.8Â oz / 222Â g
|
| Package Weight |
0.8 lb
|
| Box Dimensions (LxWxH) |
10.75 x 4.55 x 1.9"
|
All product and company names are trademarksâą or registeredÂź trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
