Teradek Link AX Wi-Fi Router/Access Point (V-Mount)
Teradek Link AX Overview

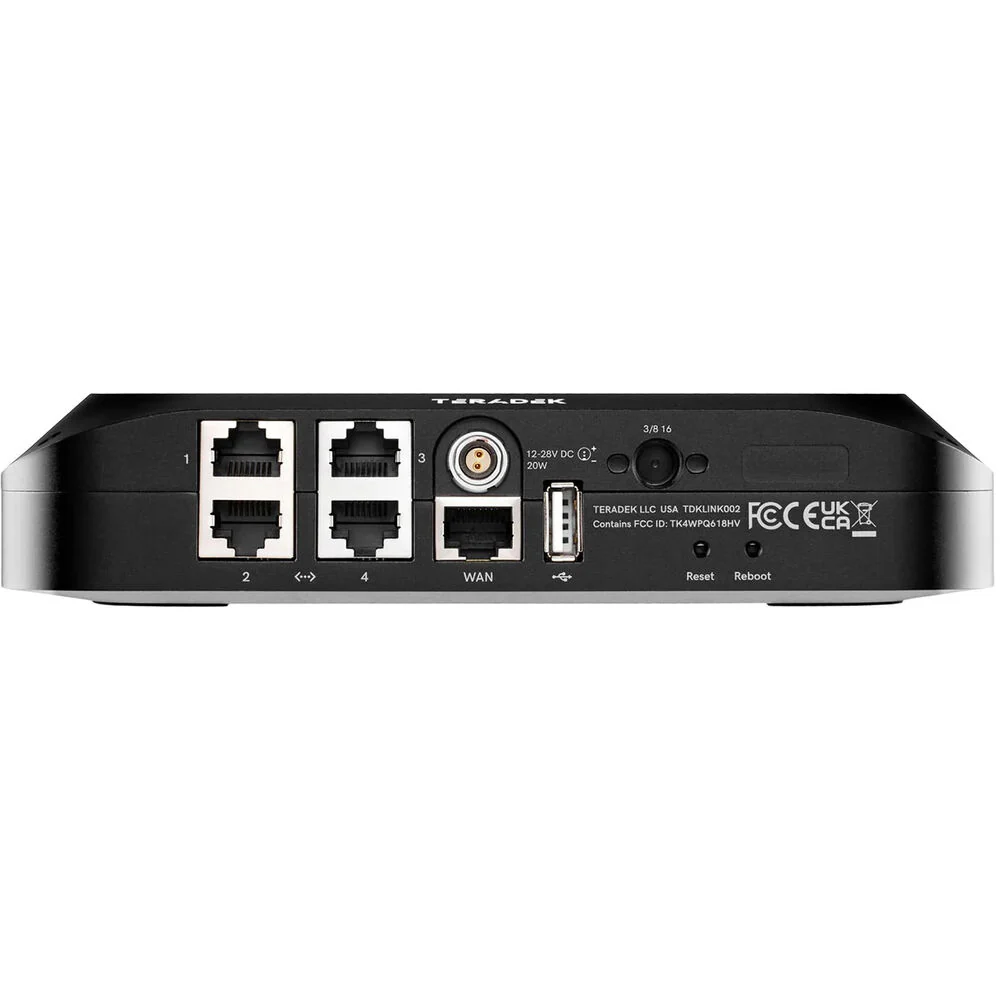

Add routing and Wi-Fi connectivity, collaboration, and monitoring to your streaming production with this Link AX Wi-Fi Router/Access Point from Teradek. This unit features five configurable Ethernet ports and Wi-Fi 6 802.11ax connectivity to connect your IP-enabled cameras, video switchers, and streaming video devices with collaborators and cloud services. The unit allows numerous units to connect via Wi-Fi or wireless connections for streaming and monitoring using multiple Teradek Serv 4K or Serv Micro units. Its USB-A port allows you to utilize external modems such as the Node II for cellular data streaming options.

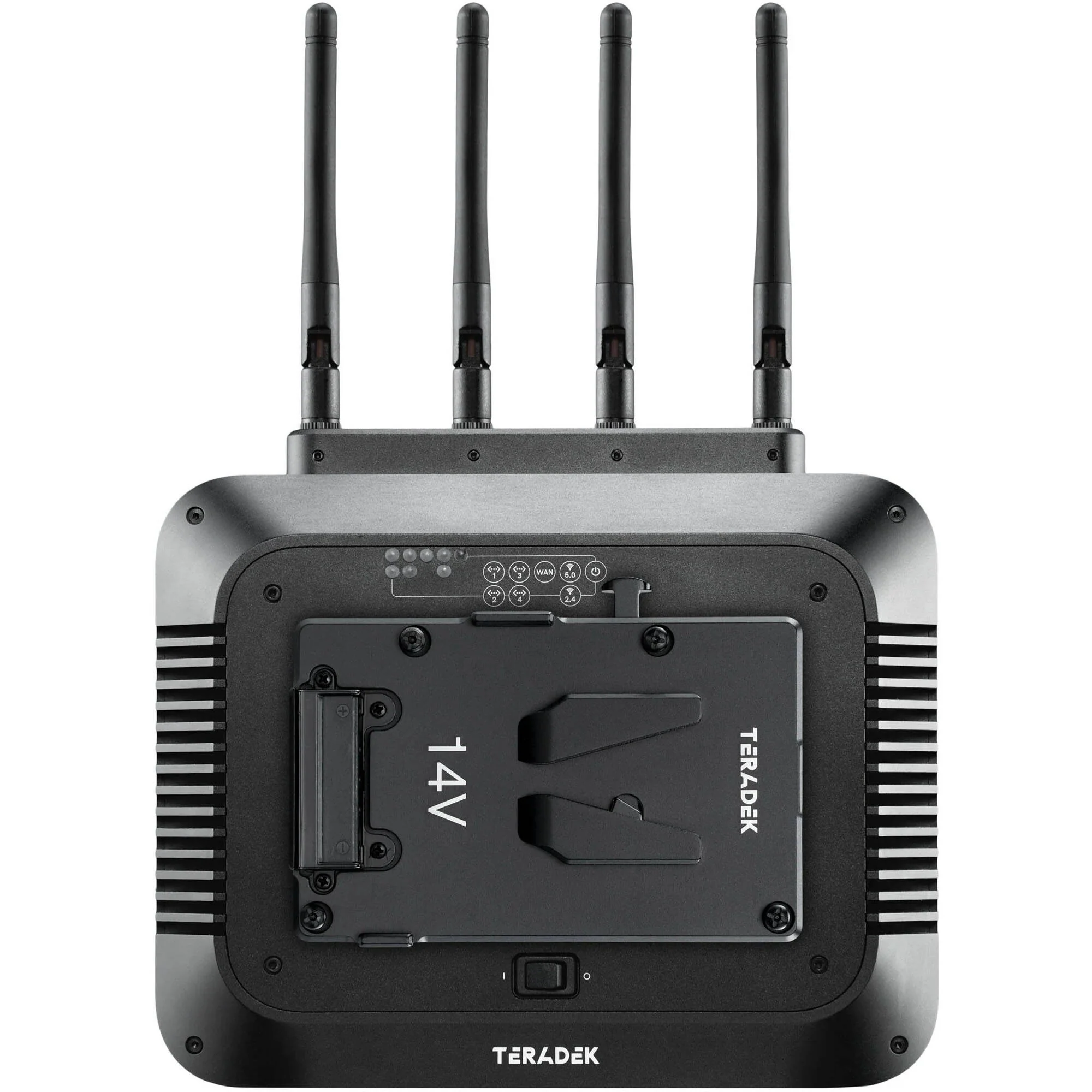

The Teradek VUER HDR app for iOS and Android devices provides control over the streams, and it allows up to 20 independent viewers on the system to preview feeds and control multiple cameras. Its rugged aluminum chassis is designed for use in various environments, and it features 1/4"-20 and 3/8"-16 mounting threads. It is powered using the included power supply or via the included V-mount battery plate.
In the Box
- Teradek Link AX Wi-Fi Router/Access Point (V-Mount)
- 3/8"-16 Light Stand Adapter
- 2-Pin to 30W AC Adapter
- Power Cable (6')
- V-Mount Battery Plate
- Limited 1-Year Manufacturer Warranty
Teradek Link AX Specs
| USB I/O |
1 x USB-A Female Input/Output
|
| Video I/O |
5x RJ45 Input/Output
|
| Wireless |
Wi-Fi 6 (802.11ax)
*Built-In |
| Wi-Fi |
Wi-Fi 6 (802.11ax)
|
| Mobile App Compatible |
Yes, Required: Android & iOS
App Name: VUER Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| Power Source |
AC Adapter with Power Brick (Included), Battery (Not Included)
|
| Battery Type |
1x V-Mount
|
| DC Input Power |
12 VDC
|
| Power Consumption |
30 W
|
| Mounting |
1 x 3/8"-16 Thread
1 x 1/4"-20 Thread |
| Material of Construction |
Aluminum
|
| Cable Length |
6" / 15.2Ā cm
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
4.565 lb
|
| Box Dimensions (LxWxH) |
9.5 x 7 x 4.7"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
