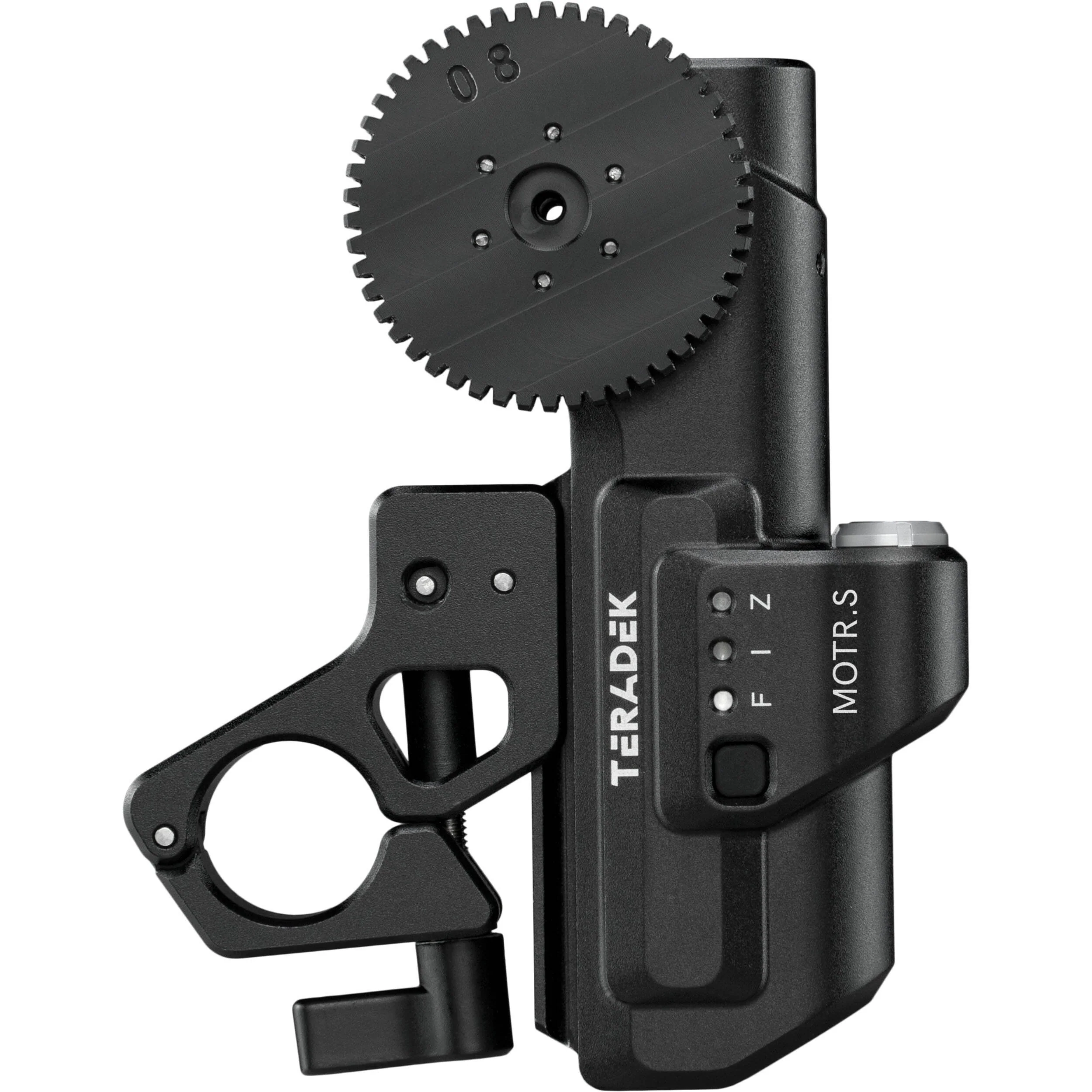

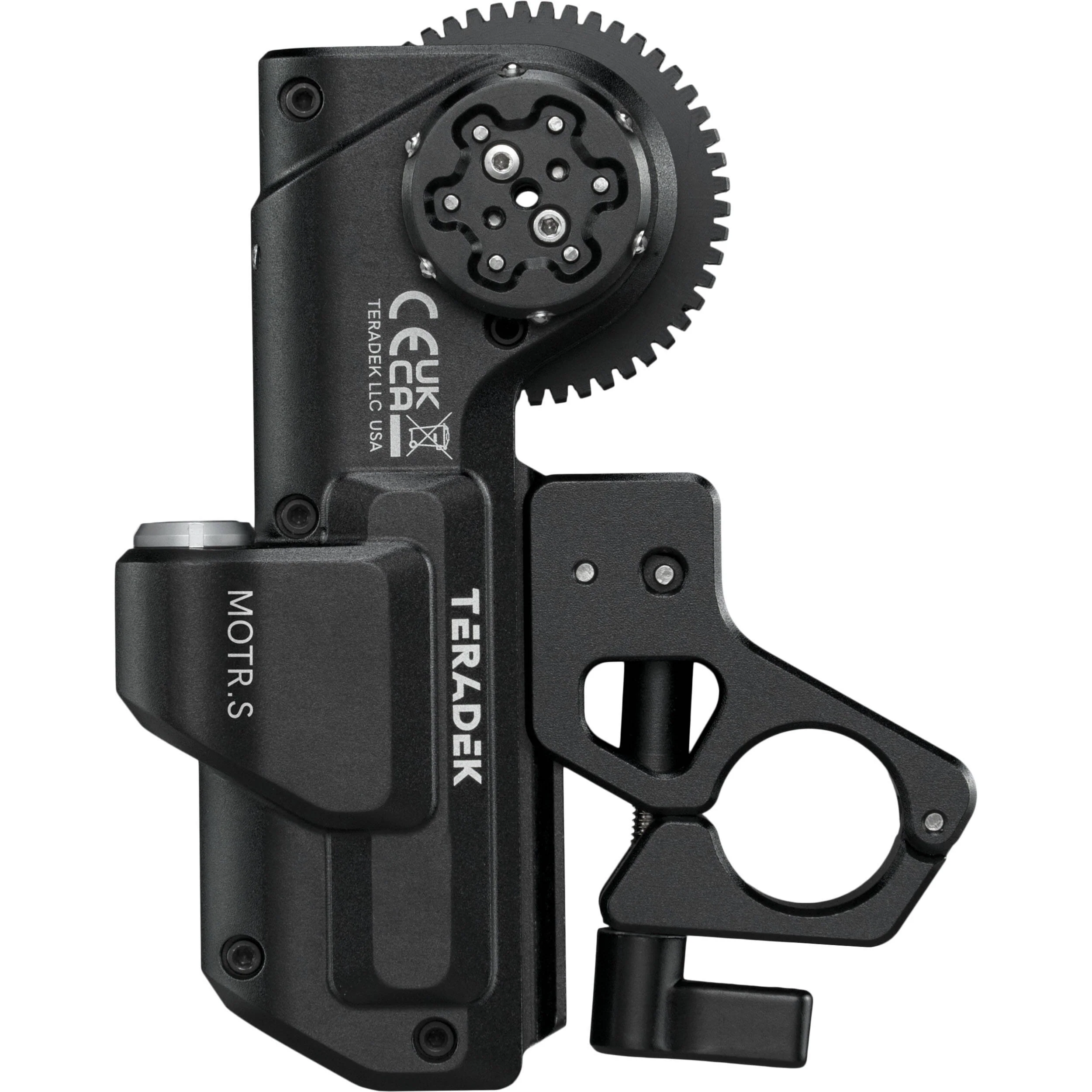

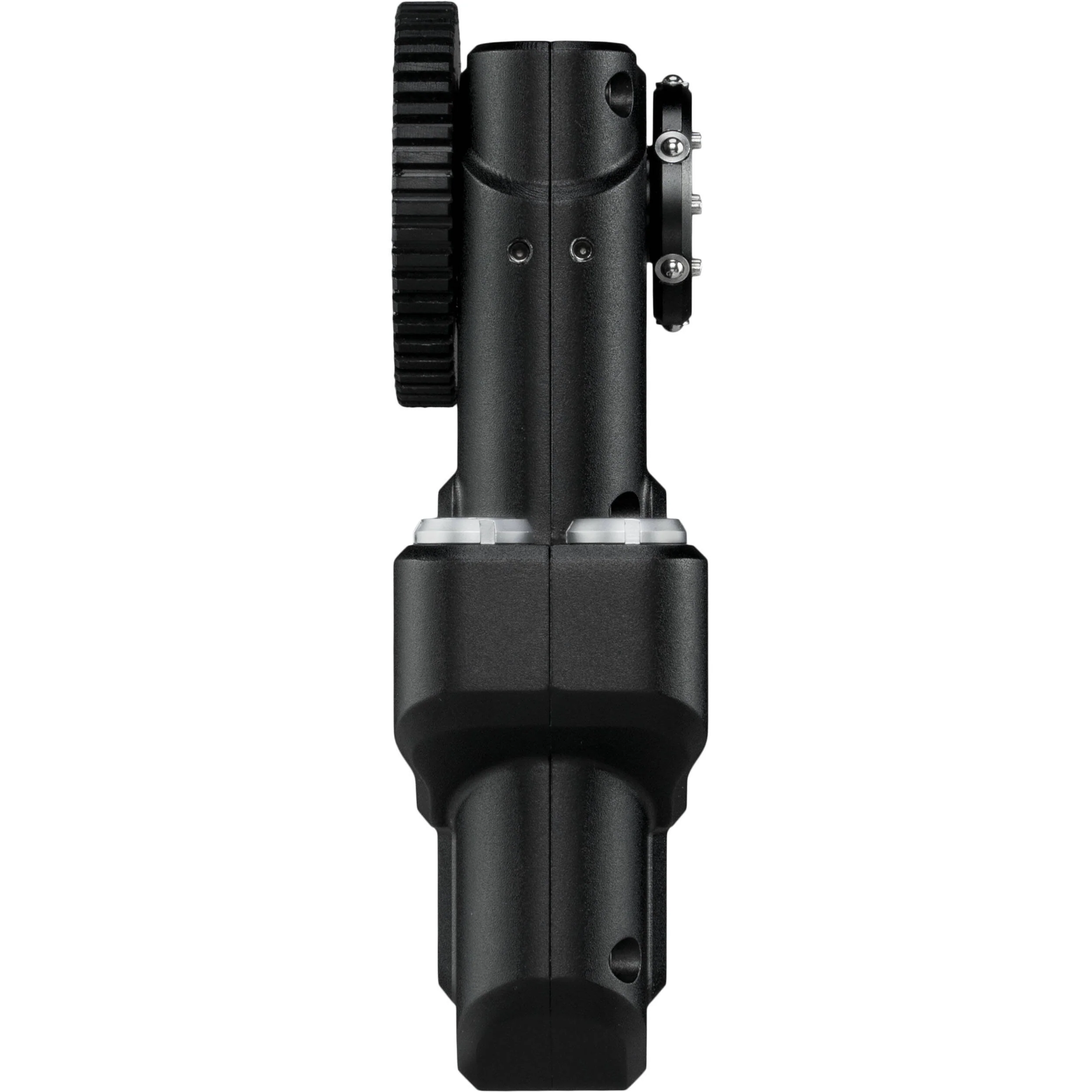

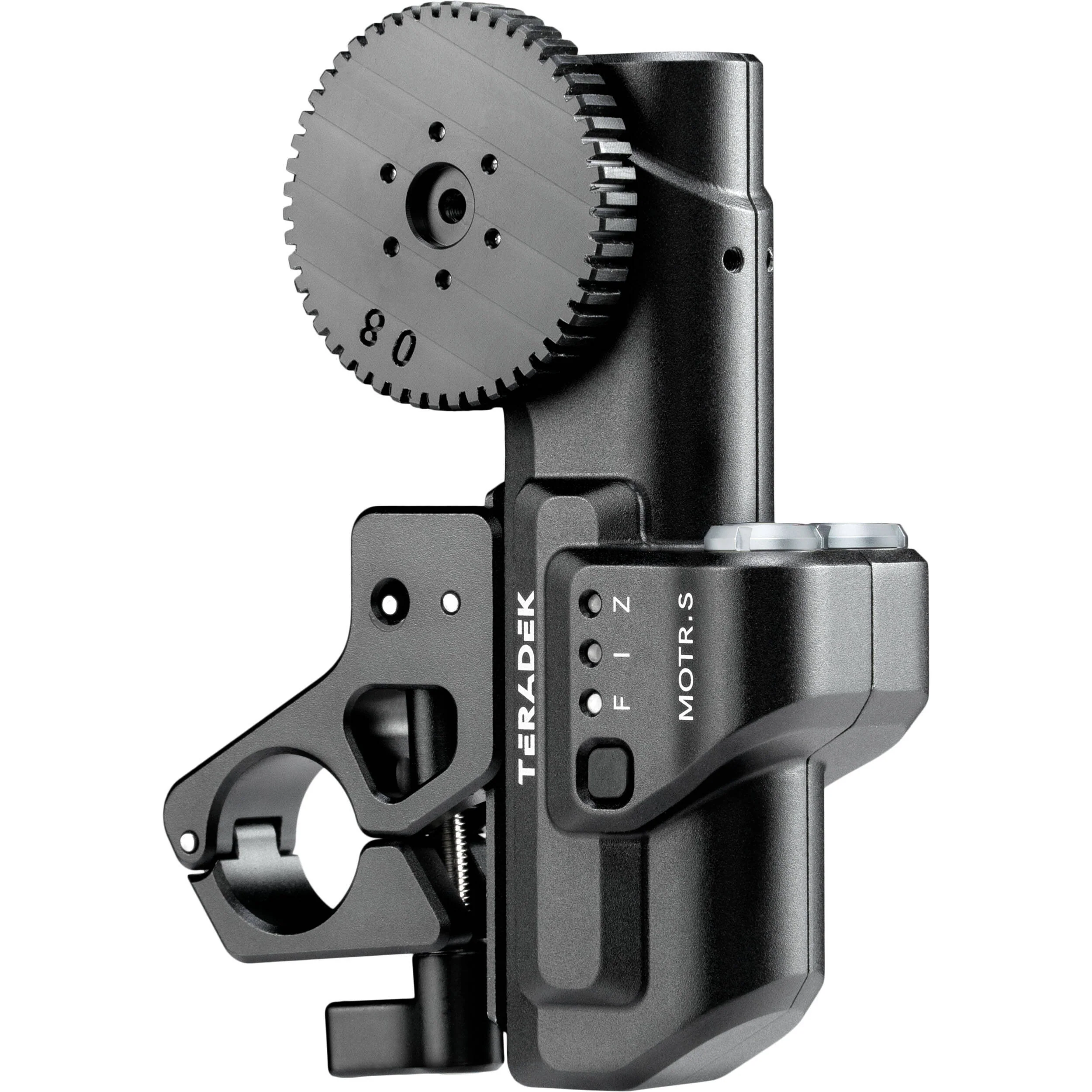

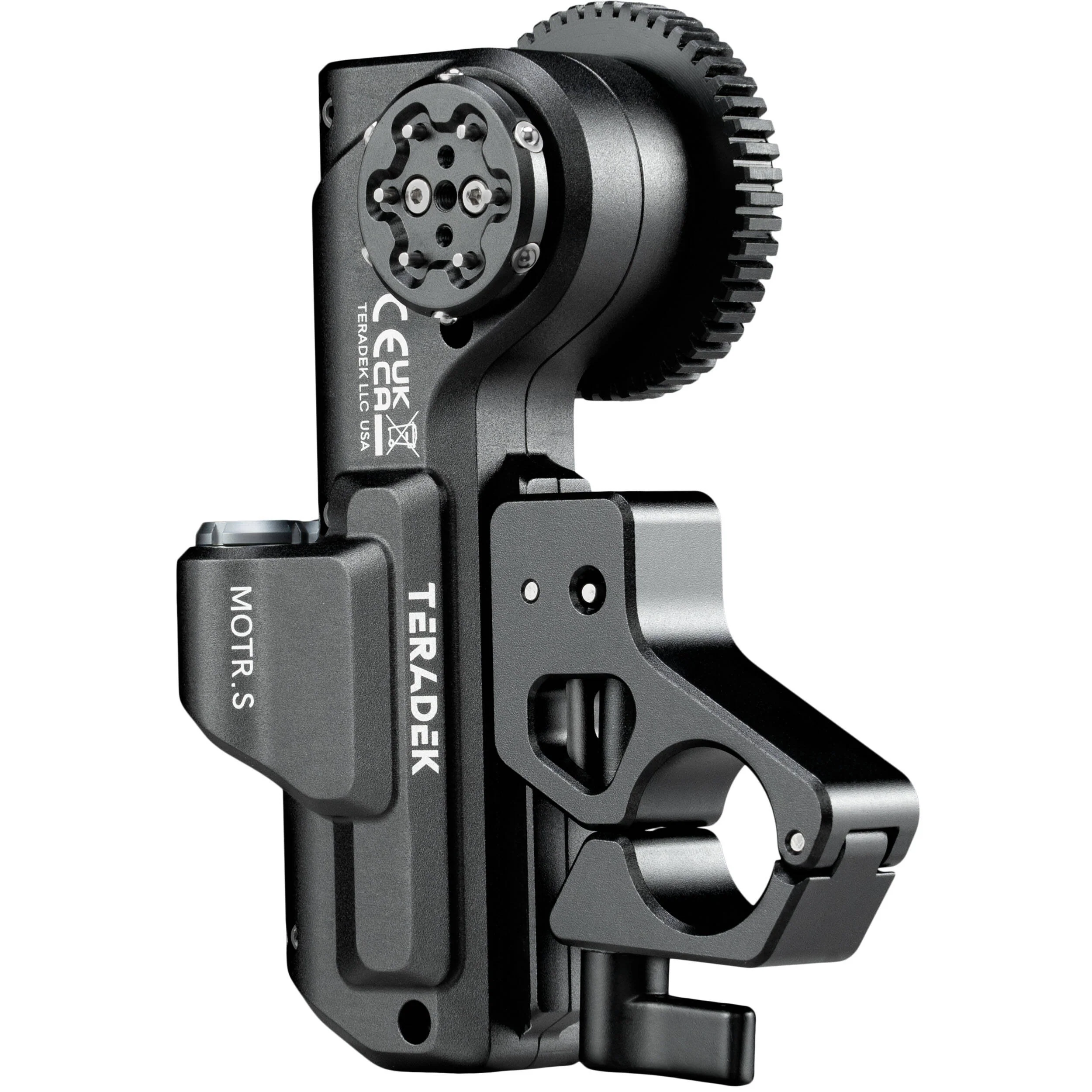

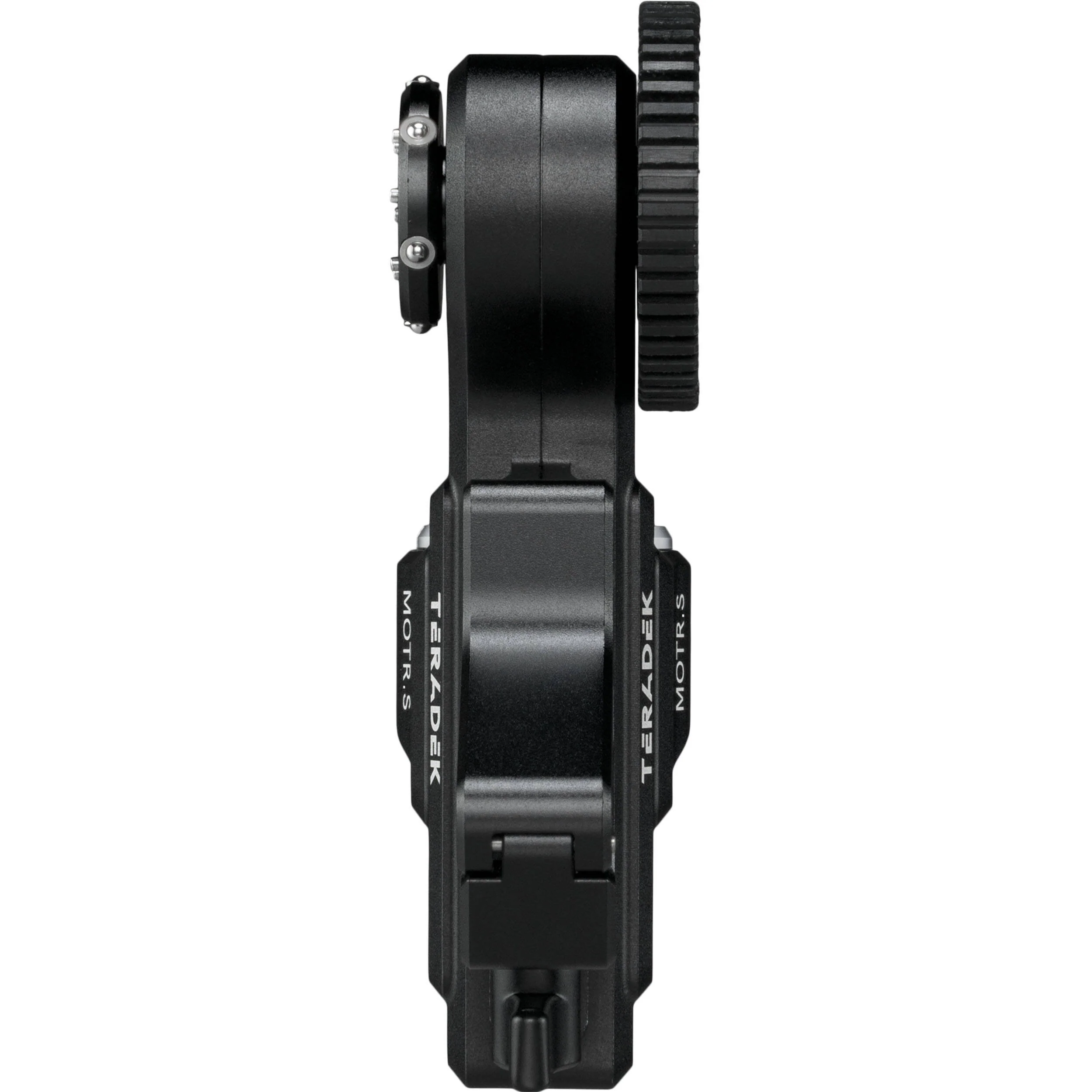

Teradek RT MOTR.S Max Lens Motor
Teradek MOTR.S Max Overview

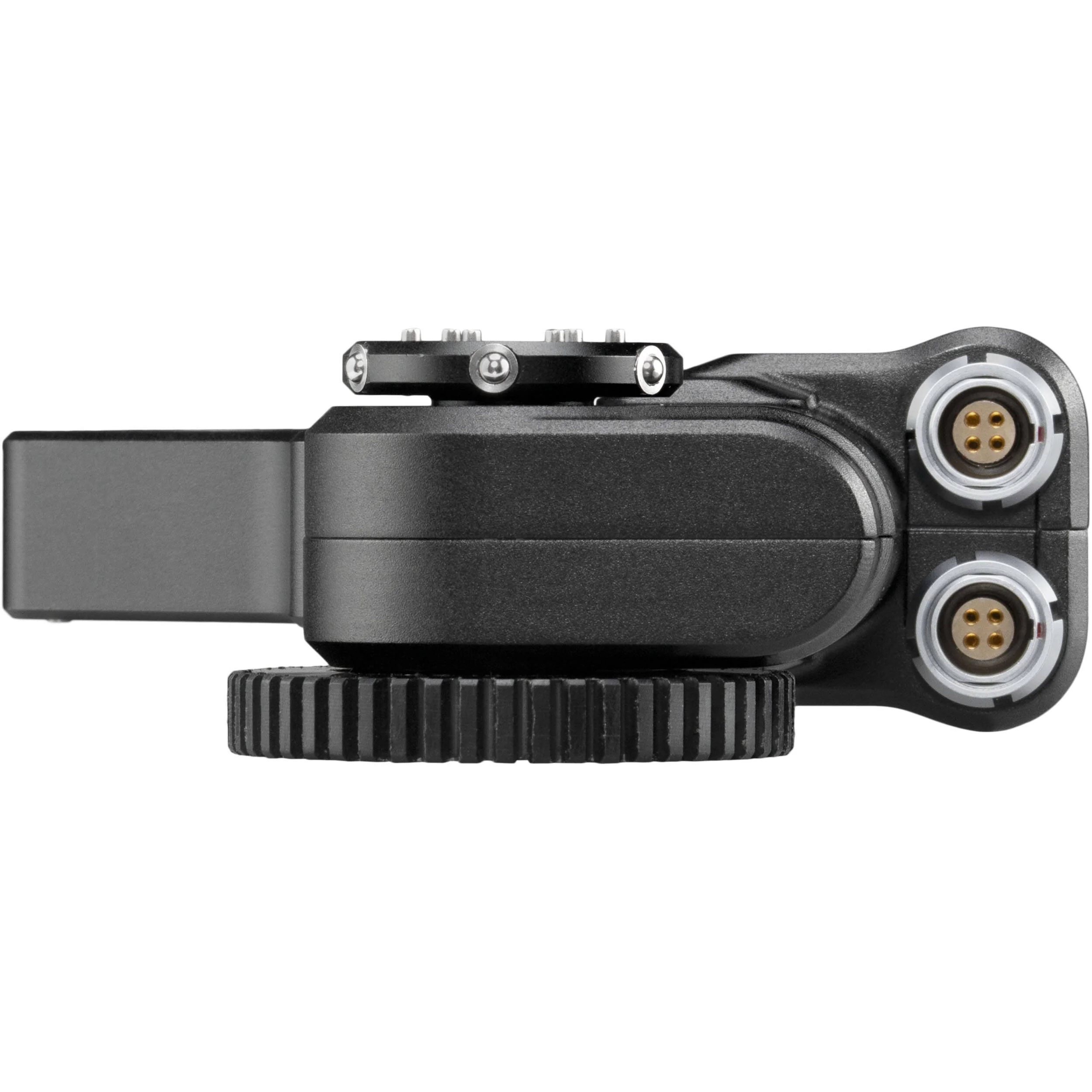

The Teradek RT MOTR.S Max Lens Motor features a similar design to its MOTR.S sibling but with increased torque and size for heavier-duty lens operations. Adjust focus, iris, or zoom functions with the MOTR.S Max and its 1.2nm maximum torque and maximum speed of 275 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage of up to 32V.
- Lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next-gen circuit boards
- New 15/19mm rod clamp with better-located handle
- 1.2nm maximum torque, 275 teeth per second
In the Box
- Teradek RT MOTR.S Max Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teradek MOTR.S MaxSpecs
| Speed |
275 Teeth per Second
|
| Gear Standard |
0.8 MOD
|
| Max Torque |
1.2 nm (Max)
0.8 nm (Continuous) |
| Connectors |
2 x 0B 4-Pin
|
| Power Source |
Plug-In Power
|
| DC Input Power |
7 to 32 VDC
|
| Operating Current |
1 A (Standby)
3 A (Maximum) |
| Mounting |
1xĀ 15mm Rod Clamp
1xĀ 19mm Rod Clamp |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Operating Conditions |
32 to 82Ā°F / 0 to 50Ā°CĀ
|
| Dimensions |
4.6 x 2.3 x 1.2" / 117.5 x 59 x 31Ā mm
|
| Weight |
7.8Ā oz / 222Ā g
|
| Package Weight |
0.785 lb
|
| Box Dimensions (LxWxH) |
6.3 x 3.5 x 3.3"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
