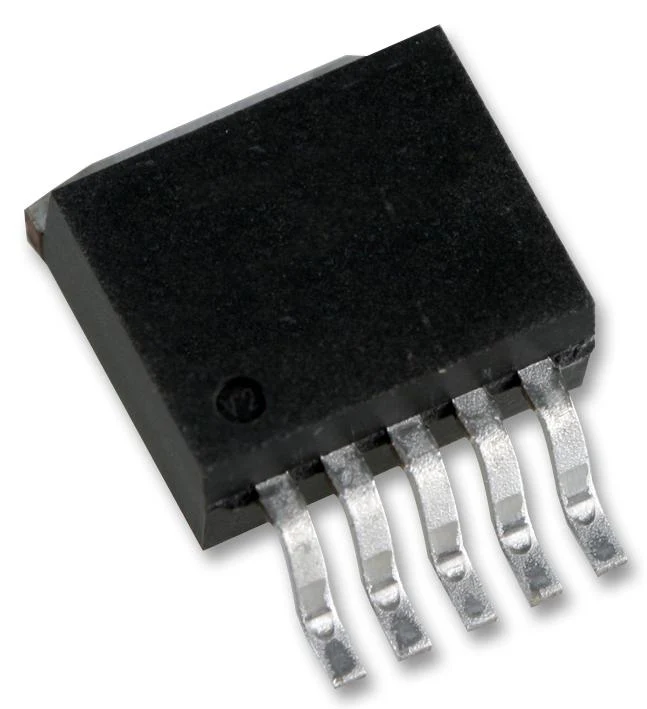

TEXAS INSTRUMENTS LM2596S-ADJ/NOPB DC-DC Switching Buck (Step Down) Regulator, Adjustable, 4.5V-40Vin, 1.2V-37Vout, 3Aout, TO-263-5
TEXAS INSTRUMENTS LM2596S-ADJ/NOPB DC-DC Switching Buck (Step Down) Regulator, Adjustable, 4.5V-40Vin, 1.2V-37Vout, 3Aout, TO-263-5
The LM2596S-ADJ/NOPB is a step-down Voltage Regulator, capable of driving a 3A load with excellent line and load regulation. This device is available in fixed output voltages of 3.3, 5, 12V and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2596S-5.0/NOPB series operates at a switching frequency of 150kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators.
- Ensured 3A Output Load Current
- Input Voltage Range up to 40V
- Requires Only 4 External Components
- Excellent Line and Load Regulation Specifications
- 150kHz Fixed Frequency Internal Oscillator
- TTL Shutdown Capability
- Low-power Standby Mode, IQ Typically 80ĆĀ¼A
- High Efficiency
- Uses Readily Available Standard Inductors
- Thermal Shutdown and Current Limit Protection
Applications
Power Management, Consumer Electronics, Signal Processing
Product details
| Input Voltage Min: 4.5V |
| Input Voltage Max: 40V |
| No. of Outputs: 1Outputs |
| No. of Pins: 5Pins |
| Output Current: 3A |
| Output Voltage Min: 1.2V |
| Output Voltage Max: 37V |
| Switching Frequency: 150kHz |
| Operating Temperature Max: 125Ā°C |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM2596S-ADJ/NOPB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
