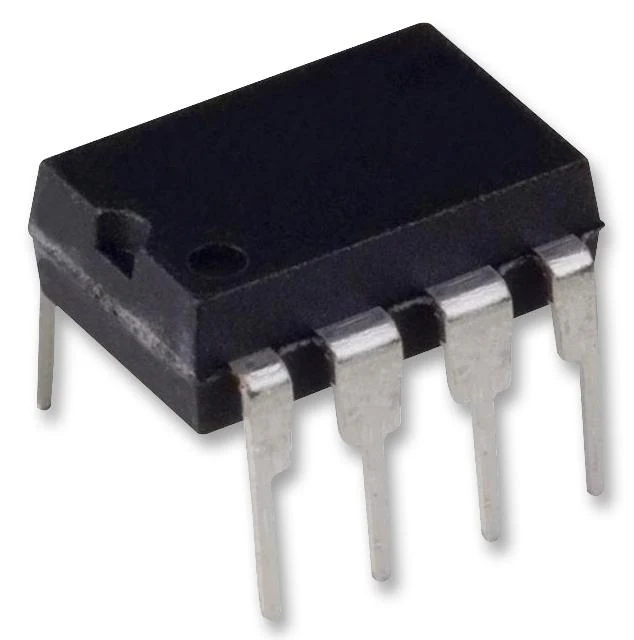

Texas Instruments TL082IP TL082IP Operational Amplifier 2 3 MHz 13 V/µs 7V to 36V DIP 8 Pins

The TL082IP is a dual JFET-input Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low offset-voltage temperature coefficient, low input bias and offset currents.

• Wide common-mode and differential voltage ranges
• Output short-circuit protection
• High input impedance - JFET input stage
• Latch-up-free operation
• Common-mode input voltage range includes VCC+
• 1.4mA/channel Typical low power consumption
• 30pA Typical low input bias current
• 5pA Typical low input offset current
• 0.003% Typical low total harmonic distortion

Applications

Computers & Computer Peripherals, Logistics, Consumer Electronics

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TL082IP
Quantity	Each
Product Change Notice EN
