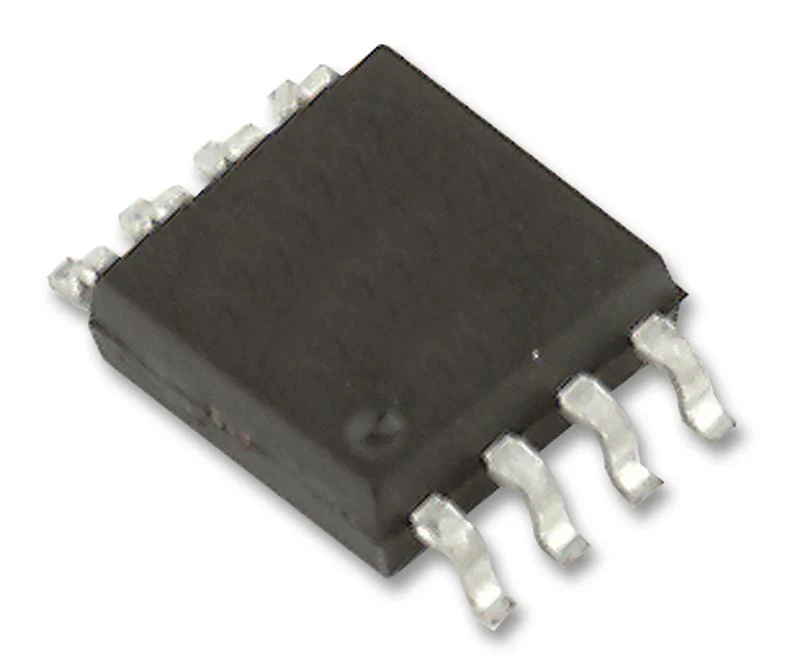

TEXAS INSTRUMENTS TPS7A4901DGNR LDO Voltage Regulator, Adjustable, 3 V to 35 V in, 333 mV drop, 1.194 V to 33 V/150 mA out, MSOP-8
TEXAS INSTRUMENTS TPS7A4901DGNR LDO Voltage Regulator, Adjustable, 3 V to 35 V in, 333 mV drop, 1.194 V to 33 V/150 mA out, MSOP-8
Product Overview
The TPS7A4901DGNR is a 36V, 150mA, ultra low noise, positive linear regulator in 8 pin MSOP package. This is including a CMOS logic-level-compatible enable pin and capacitor programmable soft-start function that allows for customized power management schemes. Other features include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. It is designed using bipolar technology and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes IC an excellent choice to power operational amplifiers, ADCs, DACs and other high-performance analogue circuitry. This linear regulator is suitable for post dc/dc converter regulation. By filtering out the output voltage ripple inherent to dc/dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio and RF applications.
- Input voltage range from 3V to 35V
- Noise of 12.7?VRMS (20Hz to 20KHz), 15.4?VRMS (10Hz to 100KHz)
- Power supply ripple rejection is -72dB (120Hz), - ? 52dB (10Hz to 400KHz)
- Adjustable output range from 1.194 V to 33 V
- Maximum output current of 150mA
- Dropout voltage of 260mV at 100mA, 333mV at 150mA
- Stable with ceramic capacitors ? 2.2 ?F
- CMOS logic level compatible enable pin
- Fixed current limit and thermal shutdown protection
- Operating temperature range from -40Ā°C to 125Ā°C
Applications
Power Management, Industrial, Test & Measurement
Product details
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS7A4901DGNR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
