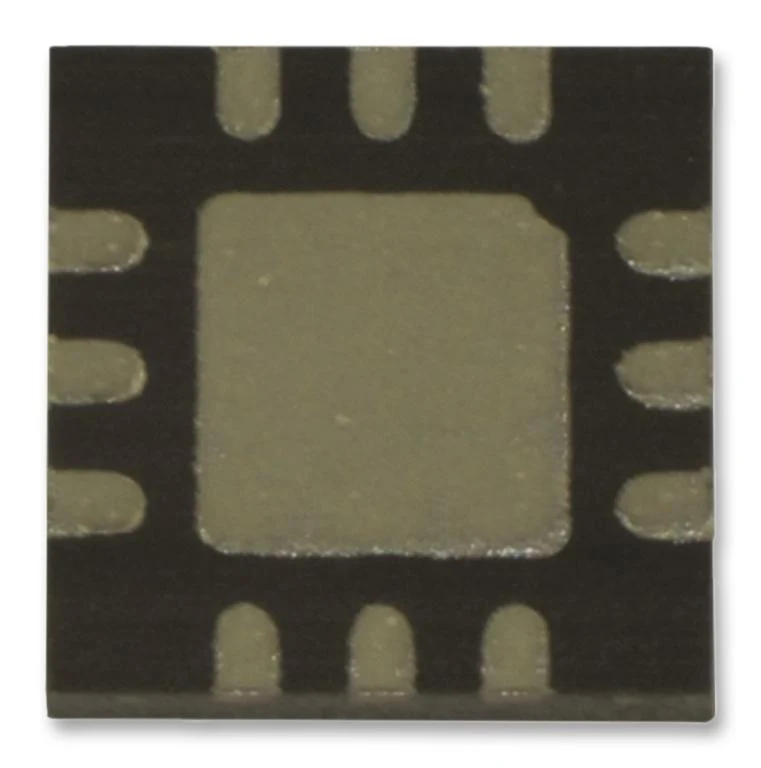

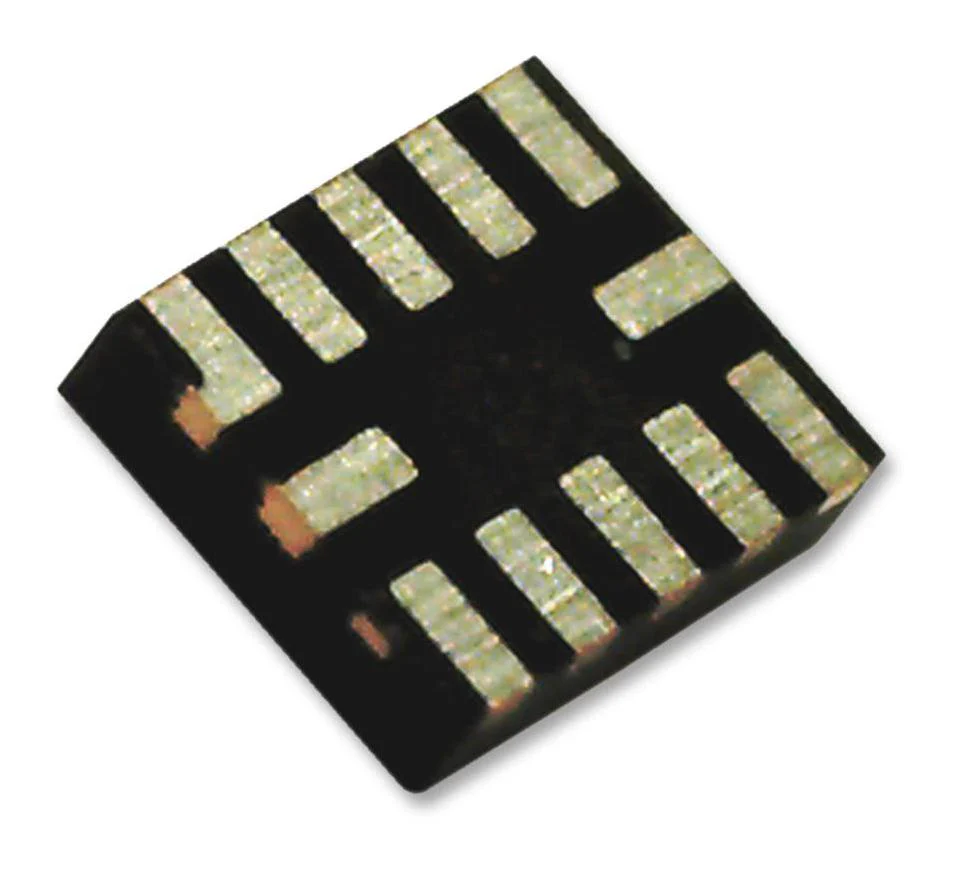

Texas Instruments TXB0104RUTR Voltage Level Translator 4 Input ns 1.2 V to 5.5 UQFN-12
The TXB0104RUTR is a 4-bit Bidirectional Voltage-level Shifter with auto direction sensing and Ā±15kV ESD protect. This non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA and accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB and accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5, 3.3 and 5V voltage nodes. VCCA should not exceed VCCB. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.
- 1.2 to 3.6V on A port and 1.65 to 5.5V on B port (VCCA <= VCCB)
- VCC isolation feature - If either VCC input is at GND, all outputs are in the high-impedance state
- OE input circuit referenced to VCCA
- Low power consumption (5ĀµA maximum ICC)
- IOFF supports partial power-down-mode operation
- Latch-up performance exceeds 100mA per JESD 78, class II
- Green product and no Sb/Br
Communications & Networking, Portable Devices, Consumer Electronics, Computers & Computer Peripherals
Warnings This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TXB0104RUTR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.94
Texas Instruments TXB0104RUTR Voltage Level Translator 4 Input ns 1.2 V to 5.5 UQFN-12ā
$1.94
Texas Instruments TXB0104RUTR Voltage Level Translator 4 Input ns 1.2 V to 5.5 UQFN-12
The TXB0104RUTR is a 4-bit Bidirectional Voltage-level Shifter with auto direction sensing and Ā±15kV ESD protect. This non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA and accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB and accepts any supply voltage from 1.65 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5, 3.3 and 5V voltage nodes. VCCA should not exceed VCCB. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.
- 1.2 to 3.6V on A port and 1.65 to 5.5V on B port (VCCA <= VCCB)
- VCC isolation feature - If either VCC input is at GND, all outputs are in the high-impedance state
- OE input circuit referenced to VCCA
- Low power consumption (5ĀµA maximum ICC)
- IOFF supports partial power-down-mode operation
- Latch-up performance exceeds 100mA per JESD 78, class II
- Green product and no Sb/Br
Communications & Networking, Portable Devices, Consumer Electronics, Computers & Computer Peripherals
Warnings This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TXB0104RUTR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
