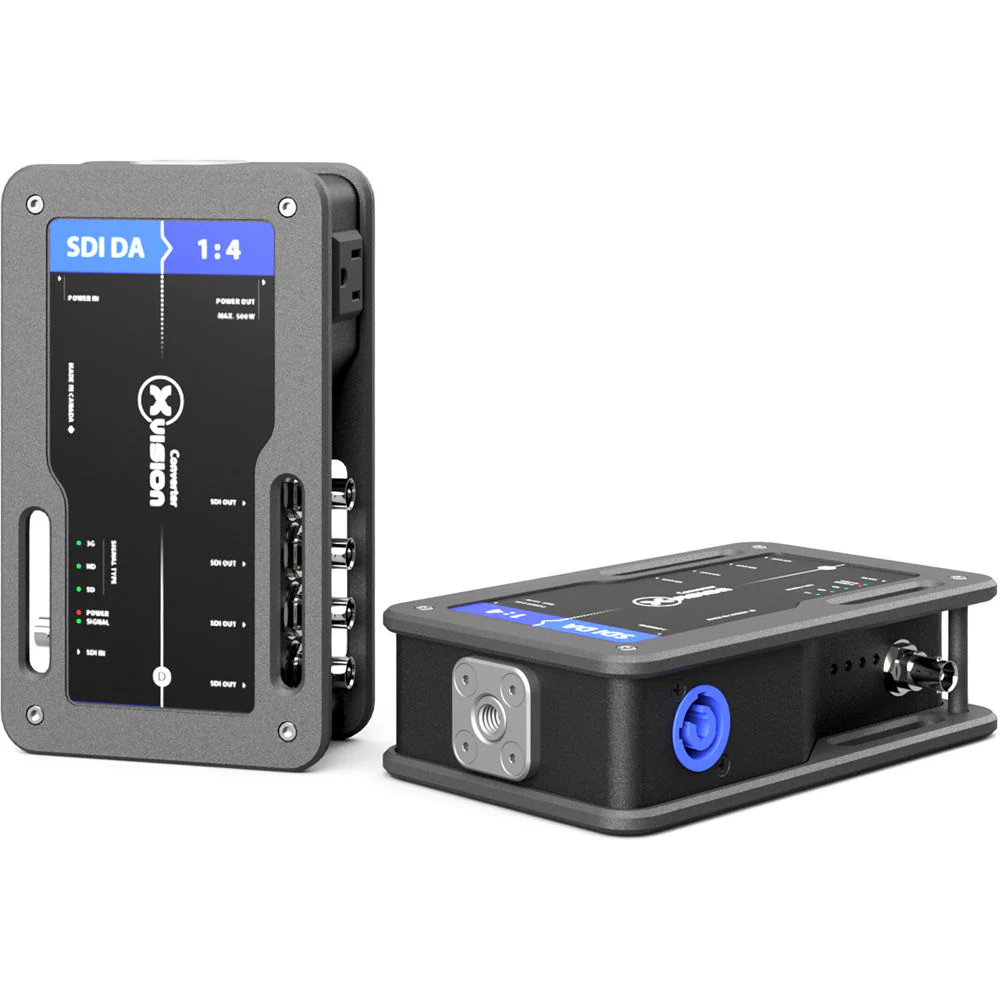

Theatrixx Technologies SDI 1x4 Distribution Amplifier
The SDI 1x4 Distribution Amplifier from xVision splits a single 1080p SDI signal source to up to four outputs, and features an integrated power supply with locking PowerCON connector. This converter is equipped with a built-in convenience 120V outlet to power a nearby projector, TV, laptop, and more, thereby eliminating the need of a power bar to power both the converter and device. With all outputs fully reclocked and amplified, this converter isĀ ideal for use in professional A/V events, presentations, live shows, and tours.
-
- Integrated power supply with locking PowerCON connector
- Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector, and more, eliminates need of a power bar to power both the converter and device

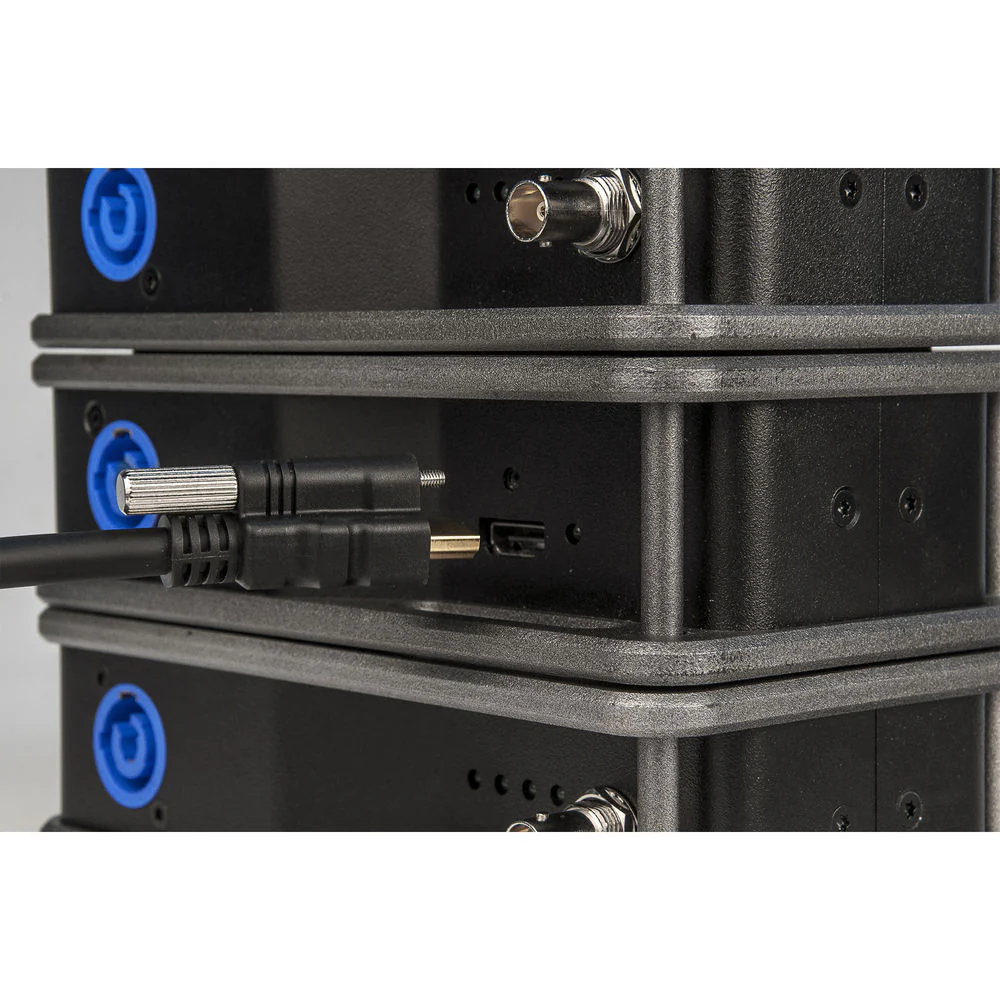

- Magnetic stacking system and non-skid rubber pad saves at least gaffer tape

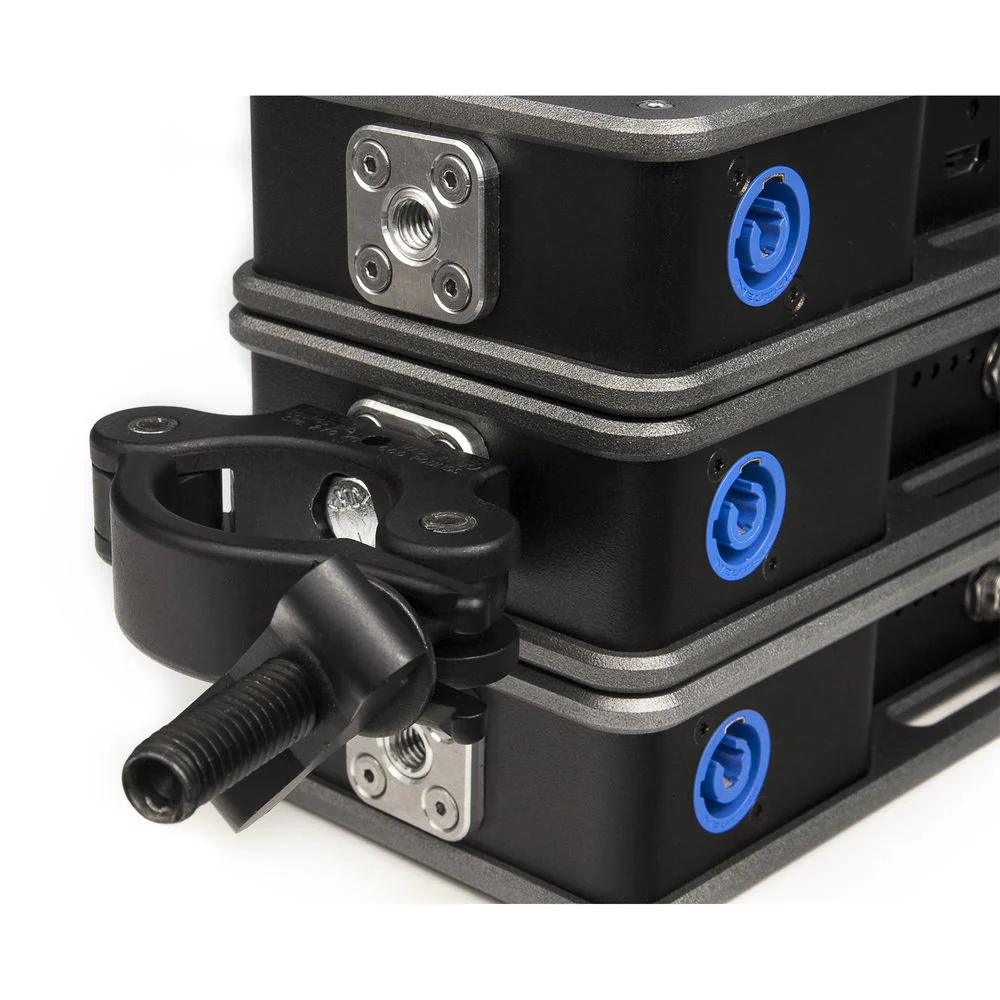

- Multiple mounting options include C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter
- Rugged, tour-ready, and durable enclosure
- Plug-n-play operation avoids dipswitches, buttons, or menus
- Clear and ample status LED indicators for quick troubleshooting
- HDMI input tested and compatible with MacBook and iPad
- Easy on-the-field identification with unique color and alphabetic coding system
- All outputs are fully re-clocked and amplified
| Video Input | 1 x 3G/HD/SD-SDI BNC |
| Video Output | 4 x 3G/HD/SD-SDI BNC |
| Format Support | 3G: 1080p60 / 59.94 / 50 HD: 720p60 / 59.94 / 50 1080i60 / 59.94 / 50 1080p30 / 29.97 / 25 / 24 / 23.98 1080PsF30 / PsF29.97 / PsF25 / PsF24 / PsF23.98 SD: NTSC 525/23.98 / 525/29.97 PAL 625/25 |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Sample rate of 48 kHz and 24-bit |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects incoming signal format |
| Power Supply | Built-in power supply PowerCON input Edison NEMA 5 to 15 output |
| Power Consumption | 25 W |
| Operational Voltage Range | 90 to 125 V 90 to 250 V also available (with PowerCON True1) |
| Relative Humidity | 0 to 90% Non-condensing |
| Overall Dimensions (H x D x W) | 2.0 x 7.1 x 4.2" (5 x 18 x 11 cm) |
| Weight | 2.2 lb (1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.4 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.4 x 6.0" |
- Locking HDMI Male to DVI Male Cable (3.3')
- Edison NEMA 5-15P to PowerCON Cable (3.3')
- Limited 2-Year Warranty
