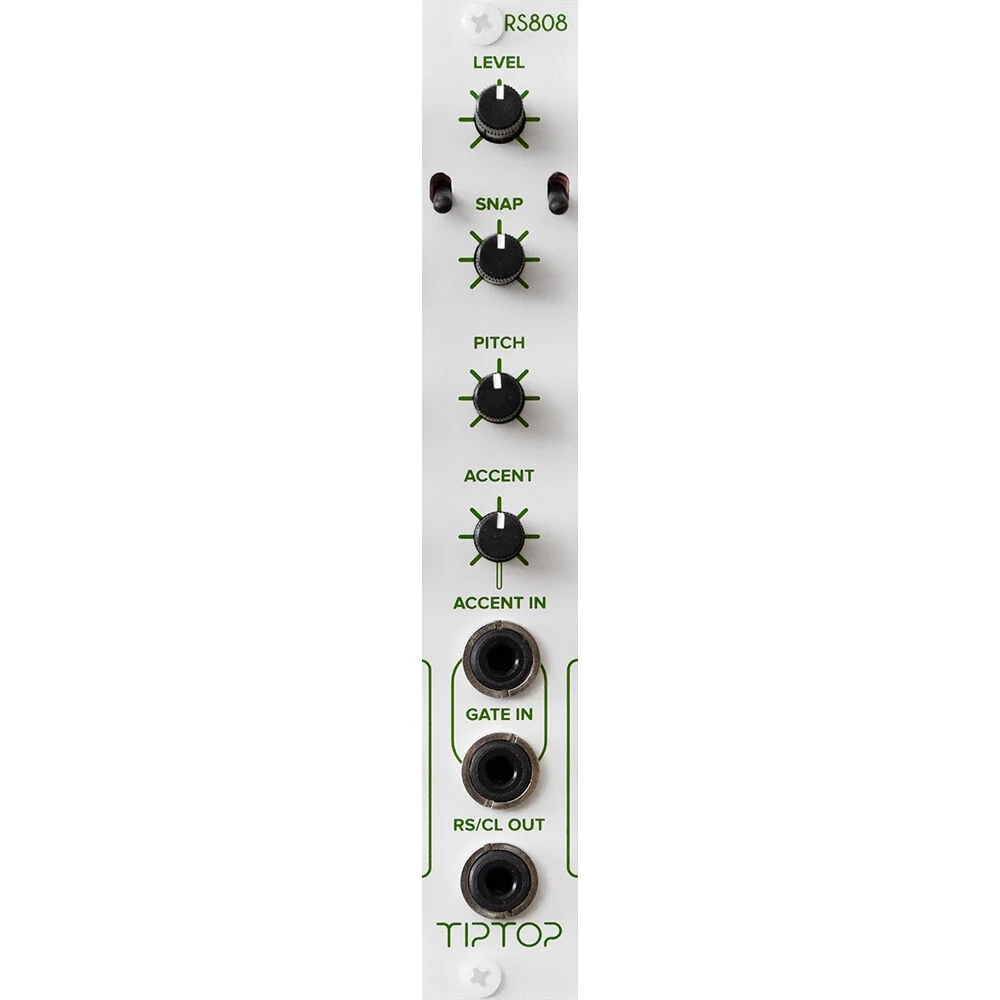

TipTop Audio RS808 Rimshot/Clavs Eurorack Module (4 HP)
TipTop Audio RS808 Overview
- 1Description
- 2At a Glance
- 3Advanced Circuits
- 4Eurorack Ready
Turn your modular system into a self-contained music machine with the Tiptop Audio RS808, a Eurorack module featuring the original 808 analog Rimshot/Claves sound generator. Adapting the circuit to the modular format has allowed for more variation and control.
The RS808 includes two switches that give a total of 4 different positions: two are the classic Rimshot and Claves sounds as found on the original, and two are unique to the RS808 module, adding a range of snappy click sounds the circuit is capable of producing. Additionally, two control knobs were added, each having a different effect for the selected sound. The module ships with a ribbon power cable.
At a Glance
- TR-808 analog Rimshot and Claves sound generator in Eurorack format
- Classic sound but with even more variation and control
- Two switches for a total of 4 different positions
- Two are the classic Rimshot/Claves sounds as found on the original
- Two are unique to the RS808 module, adding a range of snappy click sounds that the circuit is capable of producing
- Two control knobs were added, each having different effect for the selected sound. These controls can be categorized as Pitch and Snap, as they control the frequency of the oscillator and decay of the envelope generator
- Exact reproduction of the original circuit, which sounds like a fresh machine analog coming off the assembly line back in the '80s
Advanced Circuits
- Compatible with all the other drums in this series, the RS808 includes a hot modular level output gain stage capable of producing signals that can be easily distorted if desired.
- On the inputs, Tiptop Audio designed a dual input pulse-shaper circuit, so you can trigger the SD808 with trigger/gate signals from your own step sequencer, clock dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power regardless of your pulse source.
- All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analog drums.
Eurorack Ready
- 4 HP Eurorack format module
- Maximum depth: 0.6" (14mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 14mA, -12V: 13mA
In the Box
- TipTop Audio RS808 Rimshot/Clavs Eurorack Module (4 HP)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Advanced Circuits
- Eurorack Ready
TipTop Audio RS808 Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Gate/Trigger Input
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
14 mA on +12 V Rail
13 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Gate/Trigger Input
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
14 mA on +12 V Rail
13 mA on -12 V Rail |
Physical
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.205 lb
|
| Box Dimensions (LxWxH) |
5.5 x 3.1 x 1.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
