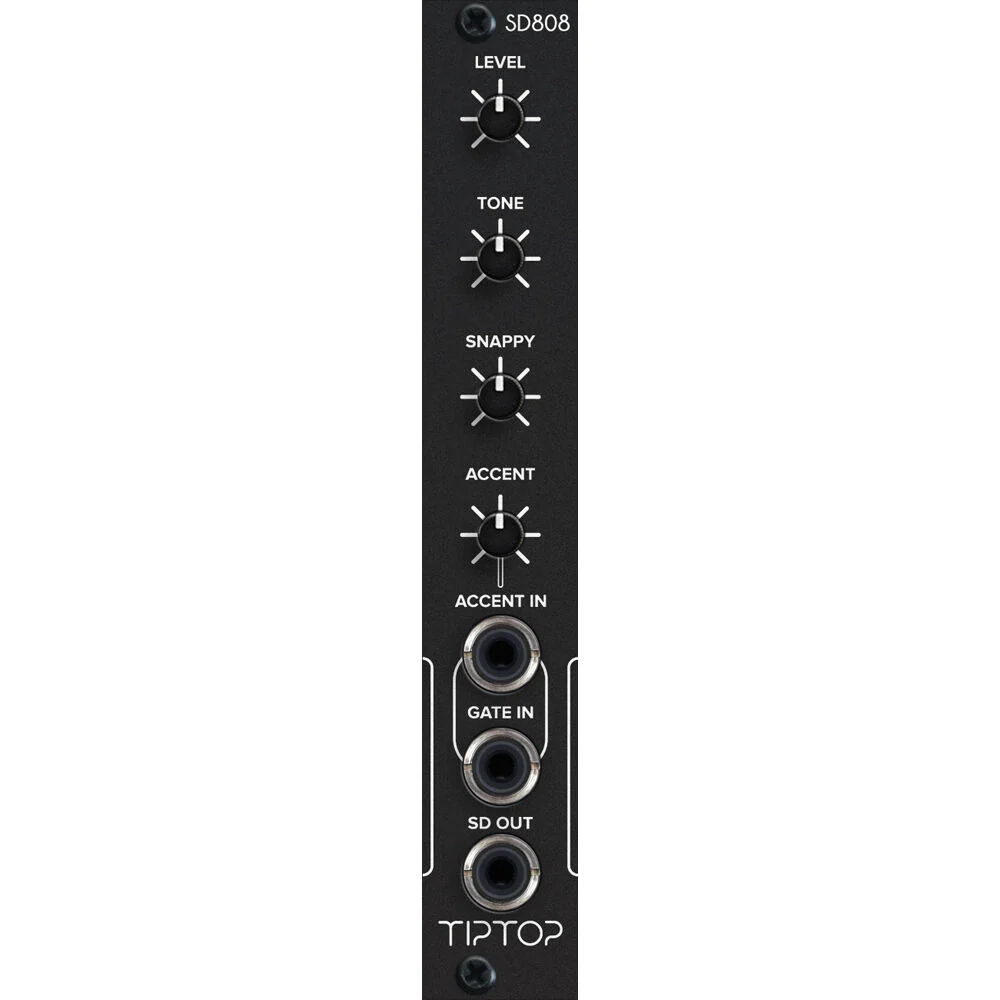

TipTop Audio SD808 Snare Drum Eurorack Module (4 HP, Black)
TipTop Audio SD808 BK Overview
Turn your modular system into a self-contained music machine with the Tiptop Audio SD808, a Eurorack module featuring the original 808 analog snare-drum circuit. Adapting the circuit to the modular format has allowed for bonus special features like independent accent level, a high-powered gain stage, an input pulse-shaper, and an adjustable noise source, all without compromising the signature sound of the TR-808 snare drum.
The SD808 sounds tight and extremely snappy, because you can control the VCA envelope amplitude. The sound is made with three analog sound generators mixed together: two oscillating sine waves and a noise source. The SD808's front-panel controls have a lot of sweet spots, with sounds that are not just limited to snare drum sounds. It can also create other electronic percussive elements. The module ships with a ribbon power cable.
- Original TR-808 analog snare-drum circuit adapted for use in Eurorack modular synthesizer format
- Designed to sound like a fresh out-of-the-box '80s TR-808 snare
- Independent accent levels
- High-powered gain stage
- Dual-input pulse-shaper
- Adjustable noise source
- SD808 is not just limited to snare drum sounds; it can also create other electronic percussive elements
- Like other drums in this series, the SD808 includes a high-powered output gain stage capable of producing signals up to 20 V p-p, allowing you to get an array of harmonized snare drums sounds with even tighter attacks.Ā
- On the inputs, Tiptop Audio designed an input pulse-shaper circuit, so you can trigger the SD808 with trigger/gate signals from your own step sequencer, clock dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module, and ensures the same stable sound at peak power, regardless of your pulse source.Ā
- All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analog drums.
- 4 HP Eurorack format module
- Maximum depth: 0.6" (14mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V, 18mA; -12V, 16mA
Items Included
- TipTop Audio SD808 Snare Drum Eurorack Module (4 HP, Black)
- Ribbon Power Cable
Additional Resources
No additional resources available
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
