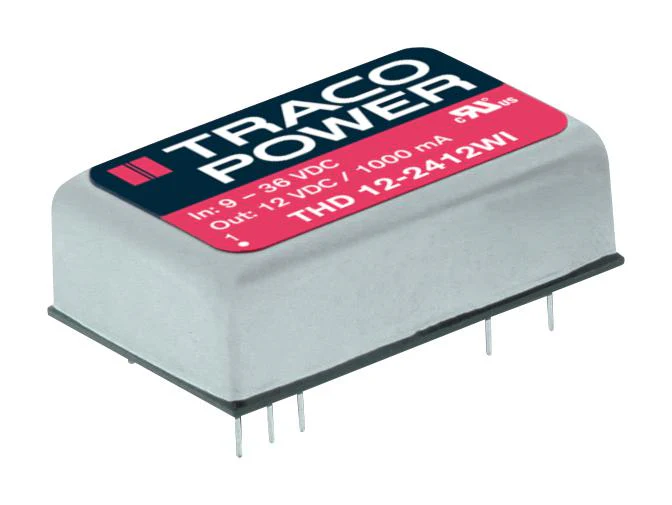

TRACO POWER THD 12-2422WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 12 W, 2 Output, 12 V, 500 mA
TRACO POWER THD 12-2422WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 12 W, 2 Output, 12 V, 500 mA
The THD 12-2422WI is a 2-output board-mount isolated DC to DC Converter with wide 4:1 input voltage range. The THD-12WI series 12W isolated high performance DC/DC converter features industry-standard footprint, overload and overvoltage protection as well as remote on/off. Built-in filters for both input and output minimize the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. This converter is ideal for applications which require isolated, tightly regulated voltages and space on the PCB is critical.
- Highest power density
- Very high efficiency up to 85%
- 1500V I/O isolation
- Input filter meets EN 55022A without external components
- Under-voltage lockout circuit
- Shielded metal case with insulated baseplate
- Continuous short-circuit protection
- -40 to +85Ā°C Operating temperature range
Applications
Power Management, Communications & Networking, Industrial
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 12W |
| No. of Outputs: 2 Output |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 500mA |
| Output Voltage - Output 2: -12V |
| Output Current - Output 2: 500mA |
| Output Regulation: - |
| Isolation Voltage: 1.5kV |
| DC / DC Converter Type: DIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |

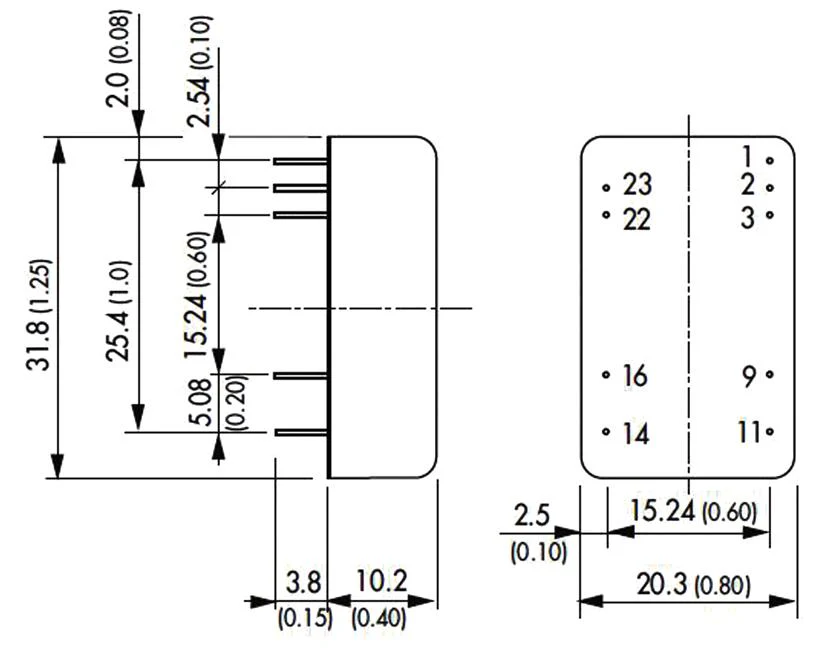

| Width: 20.32mm |
| Height: 10.2mm |
| Depth: 31.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 36V |
| Product Range: THD 12WI Series |
Other details
| Brand | TRACO POWER |
| Part Number | THD 12-2422WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
