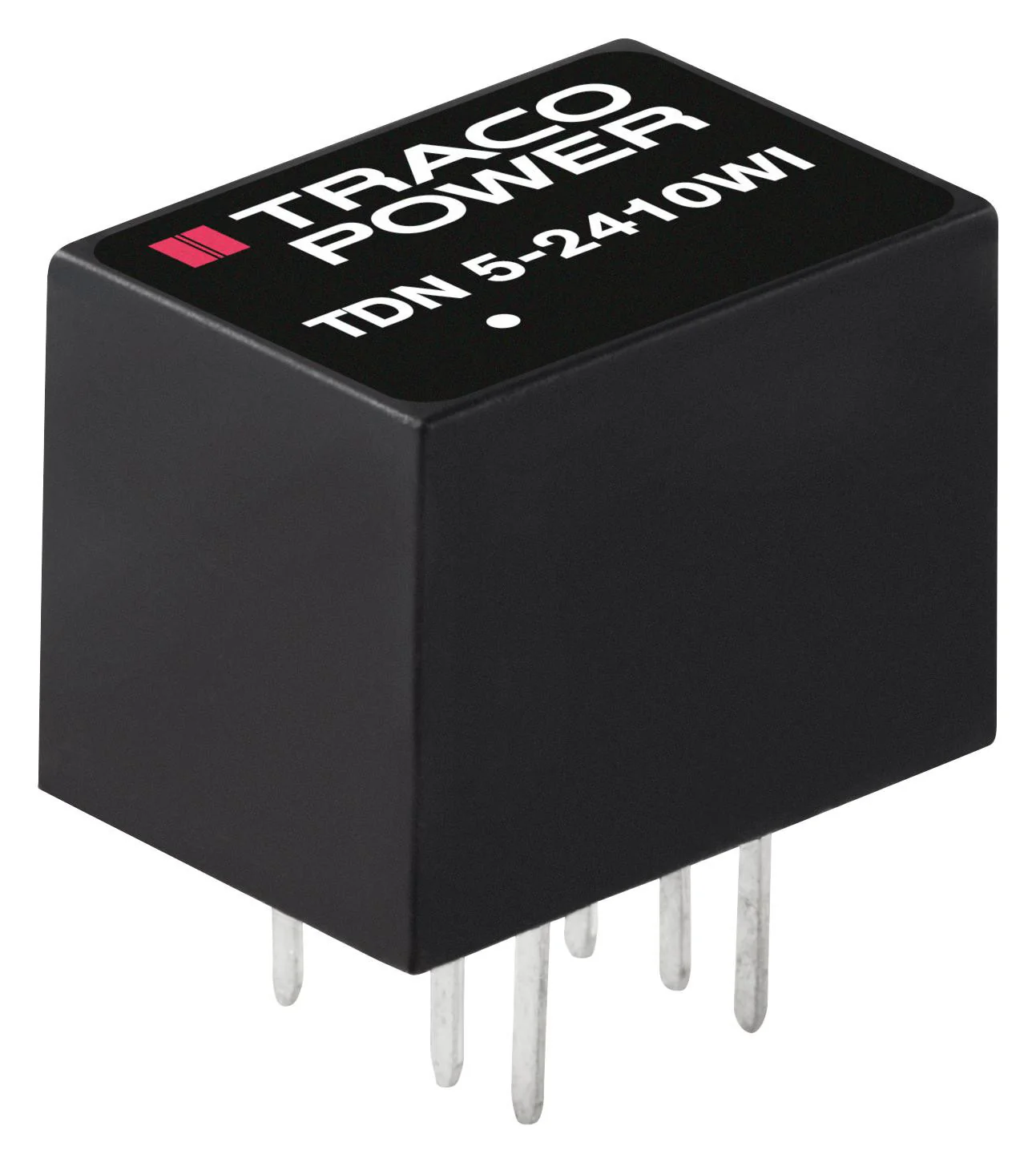

TRACOPOWER TDN 5-0922WI Isolated Board Mount DC/DC Converter, 2 Output, 5 W, 12 V, 210 mA, -12 V, 210 mA
TRACOPOWER TDN 5-0922WI Isolated Board Mount DC/DC Converter, 2 Output, 5 W, 12 V, 210 mA, -12 V, 210 mA
Product details
| Output Power Max | 5W |
| Input Voltage DC Min | 4.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -12V |
| Output Current - Output 2 | 210mA |
| Depth | 9.1mm |
| Width | 13.2mm |
| Product Range | TDN 5WI Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 12V |
| Output Current - Output 1 | 210mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TDN 5-0922WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
