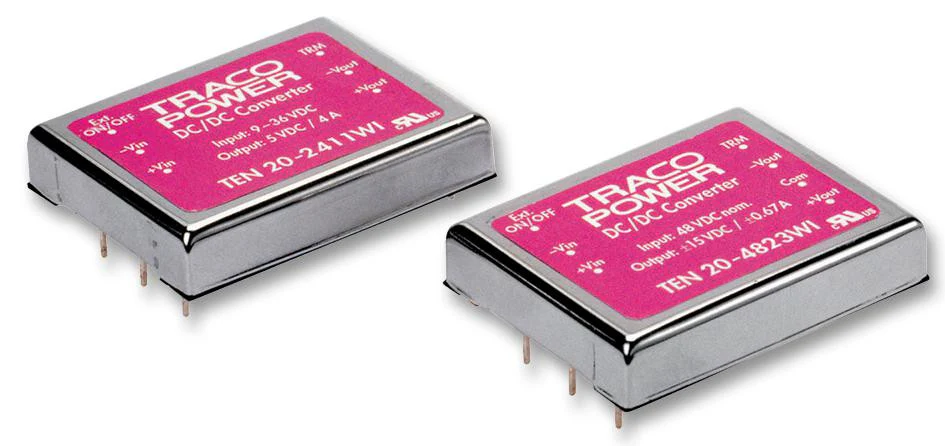

TRACOPOWER TEN 20-2412WI Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 20 W, 12 V, 1.67 A

This is a Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 20 W, 12 V, 1.67 A product from TRACOPOWER with the model number TEN 20-2412WI

Product details

Output Power Max	20W
Input Voltage DC Min	9V
DC / DC Converter Mounting	Through Hole
Output Voltage - Output 2	-
Output Current - Output 2	-
Depth	50.8mm
Width	40.6mm
Product Range	-
DC / DC Converter Type	DIP
Approvals & Standards	IEC, UL
Output Voltage - Output 3	-
Output Voltage - Output 1	12V
Output Current - Output 3	-
No. of Outputs	1 Output
DC / DC Converter Output Type	Fixed, Adjustable
Input Voltage DC Max	36V
Output Current - Output 1	1.67A
Height	10.2mm

Other details

Brand	TRACOPOWER
Part Number	TEN 20-2412WI
Quantity	Each
Technical Data Sheet EN
Miscellaneous EN
