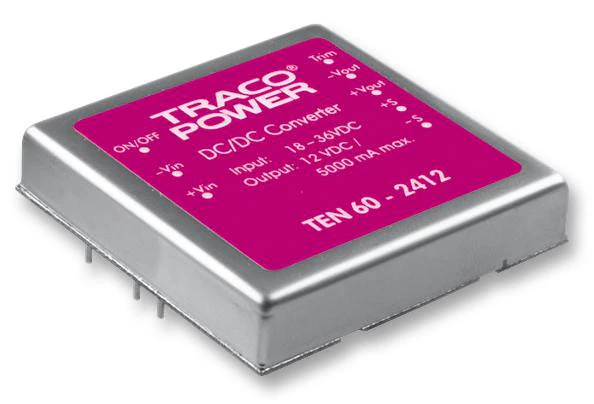

TRACOPOWER TEN 60-2412 Isolated Board Mount DC/DC Converter, High Power Density, 1 Output, 60 W, 12 V, 5 A
TRACOPOWER TEN 60-2412 Isolated Board Mount DC/DC Converter, High Power Density, 1 Output, 60 W, 12 V, 5 A
The TEN 60-2412 is a 1-output board-mount isolated DC to DC Converter with tightly regulated output voltage and wide 2:1 input voltage range. The TEN 60 series 60W high performance converter comes in a compact low profile case with industry-standard footprint. Built-in filters for both input and output minimize the need for external filtering. This converter is ideal for applications which require isolated, tightly regulated voltages and space is limited on the PCB.
- Highest power density
- Very high efficiency up to 90%
- No minimum load required
- Over-temperature protection
- Under-voltage lockout circuit
- Remote on/off
- Shielded metal case with insulated baseplate
- Output voltage trimming
- Overvoltage and short-circuit protection
Applications
Power Management, Communications & Networking, Industrial
Product details
| Output Power Max | 60W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 50.8mm |
| Width | 50.8mm |
| Product Range | TEN60 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 5A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 60-2412 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
