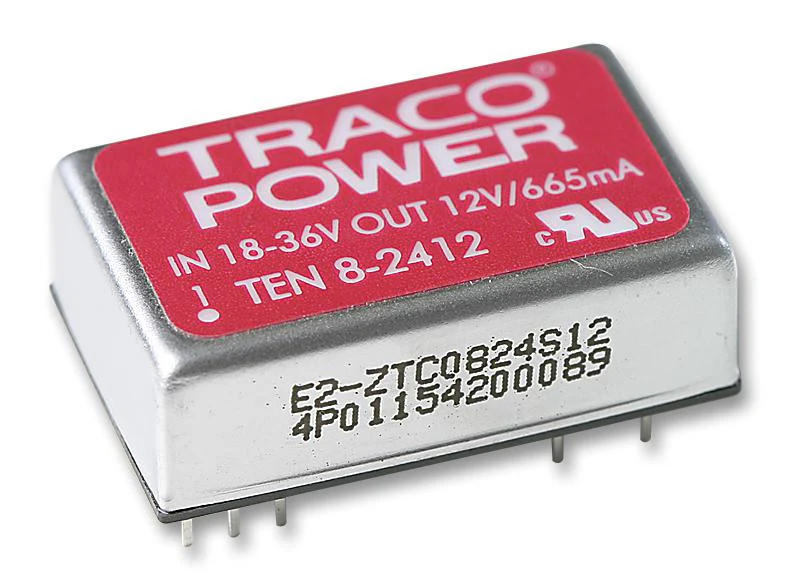

TRACOPOWER TEN 8-2412 Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 8 W, 12 V, 665 mA
TRACOPOWER TEN 8-2412 Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 8 W, 12 V, 665 mA
The TEN 8-2412 is a 1-output board-mount isolated DC to DC Converter with tightly regulated output voltage and wide 2:1 input voltage range. The TEN 8 series 8W high performance converter comes with industry standard footprint and short-circuit protection. This converter is ideal for applications which require isolated, tightly regulated voltages and space is limited on the PCB.
- High efficiency up to 86%
- Input filter meets EN 55022, class A
- Remote on/off
- Shielded metal casing with insulated baseplate
- -40 to +85�C Extended operating temperature range
Applications
Power Management
Product details
| Output Power Max | 8W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 32mm |
| Width | 20.3mm |
| Product Range | TEN-8 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 665mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 8-2412 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
