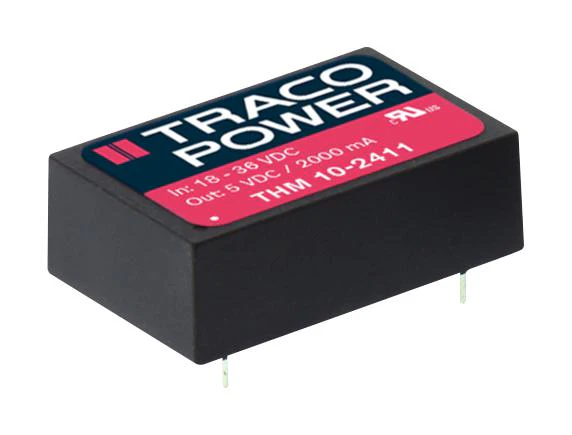

Tracopower THM 10-2411 Isolated Board Mount DC/DC Converter Medical 1 Output 10 W 5 V 2 A
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 10W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 2A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | THM 10 Series |
| Input Voltage DC Min | 18V |
| Input Voltage DC Max | 36V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | DIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | EN, ES, IEC |
| Width | 20.3mm |
| Height | 10.2mm |
| Depth | 31.8mm |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | TRACOPOWER |
| Part Number | THM 10-2411 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
