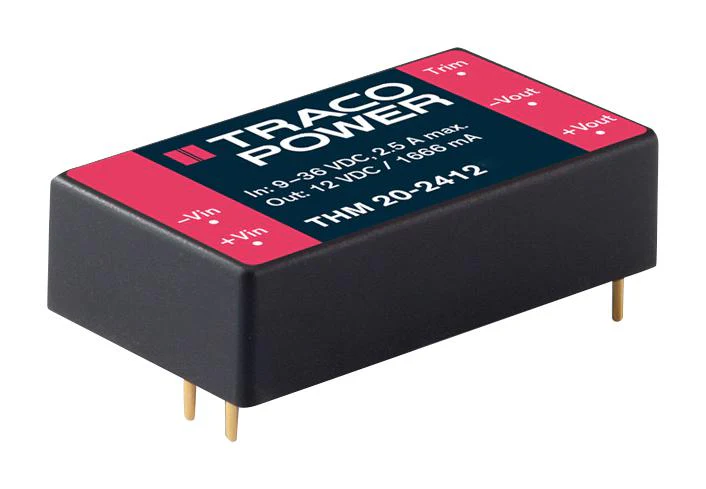

Tracopower THM 20-2412 Isolated Board Mount DC/DC Converter Medical 1 Output 20 W 12 V 1.67 A
Tracopower THM 20-2412 Isolated Board Mount DC/DC Converter Medical 1 Output 20 W 12 V 1.67 A
Product details
| Power Supply Applications | Medical |
| No. of Outputs | 1 Output |
| Output Power Max | 20W |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 1.67A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | THM 20 Series |
| Input Voltage DC Min | 18V |
| Input Voltage DC Max | 36V |
| DC / DC Converter Output Type | Fixed, Adjustable |
| DC / DC Converter Type | DIP |
| DC / DC Converter Mounting | Through Hole |
| Width | 25.4mm |
| Height | 10.2mm |
| Depth | 40.6mm |
Other details
| Brand | TRACOPOWER |
| Part Number | THM 20-2412 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $89.04
-70%$89.04
$26.71Tracopower THM 20-2412 Isolated Board Mount DC/DC Converter Medical 1 Output 20 W 12 V 1.67 A
