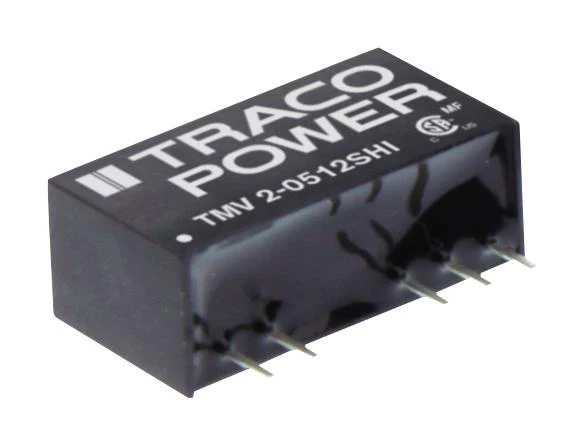

Tracopower TMV 2-2415DHI Isolated Board Mount DC/DC Converter ITE & Gate Drive 2 Output W 15 V 66 mA -15

The TMV-2HI series from Tracopower are 2W non regulated DC to DC converters with high I/O-isolation. They come in an ultra-compact SIP-7 package and are ideal for IGBT applications.

• Nominal input voltage : 5VDC/12VDC/15VDC/24VDC
• Output voltage : 3.3/5/9/12/15/±5/±9/±12/±15/(+15/-9)VDC
• Maximum output current : 500/400/222/168/132/±200/±112/±84/±66/(+66/-10)mA
• Efficiency up to 85%, 100KHz typ switching frequency
• Very high I/O isolation of 5200VDC (5700Vpk)
• Maximum I/O isolation capacitance is 7pF
• I/O isolation resistance is >10Gohm
• Ripple and noise (20MHz bandwidth) is 100mVp-p maximum
• Short circuit protection
• Operating temperature range from -40°C to 85°C, 3-year product warranty

Product details

Power Supply Applications	ITE & Gate Drive
No. of Outputs	2 Output
Output Power Max	2W
Output Voltage - Output 1	15V
Output Current - Output 1	66mA
Output Voltage - Output 2	-15V
Output Current - Output 2	66mA
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	TMV 2HI Series
Input Voltage DC Min	21.6V
Input Voltage DC Max	26.4V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	SIP
DC / DC Converter Mounting	Through Hole
Width	7.5mm
Height	10.2mm
Depth	19.5mm

Other details

Brand	TRACOPOWER
Part Number	TMV 2-2415DHI
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
