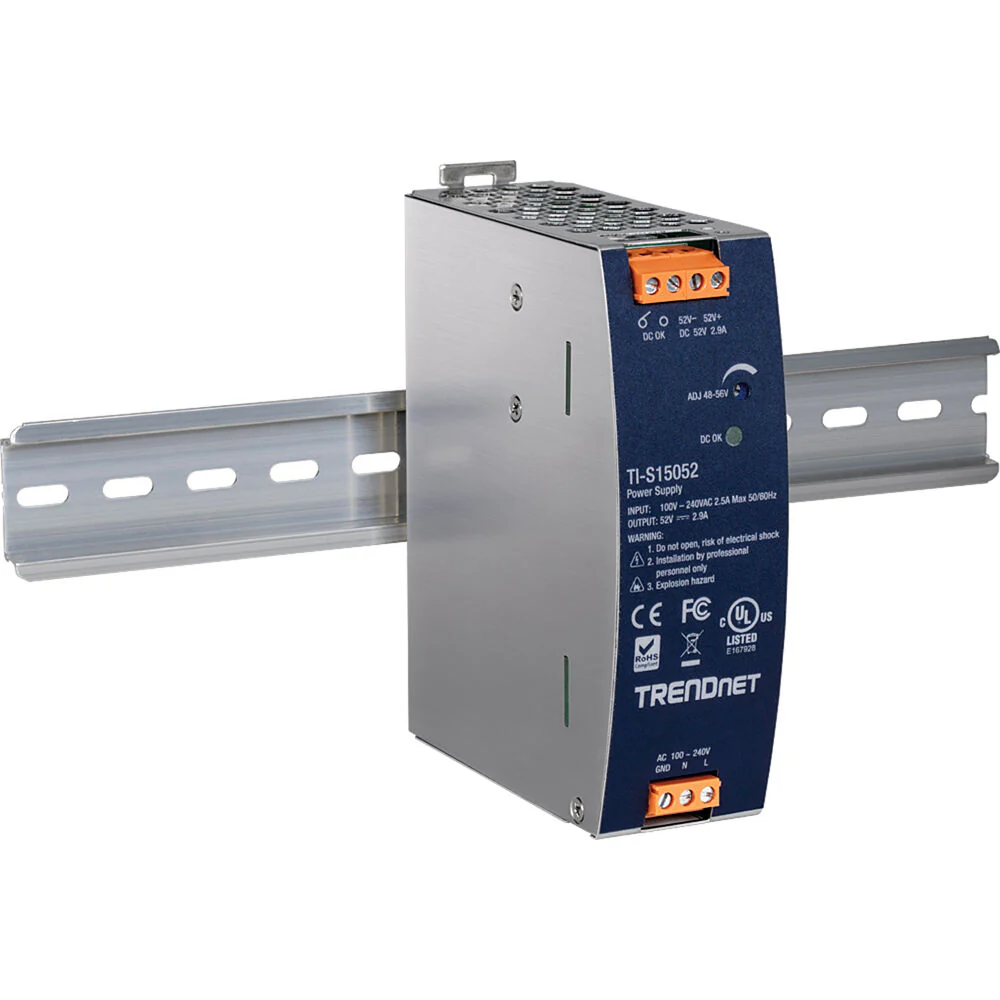

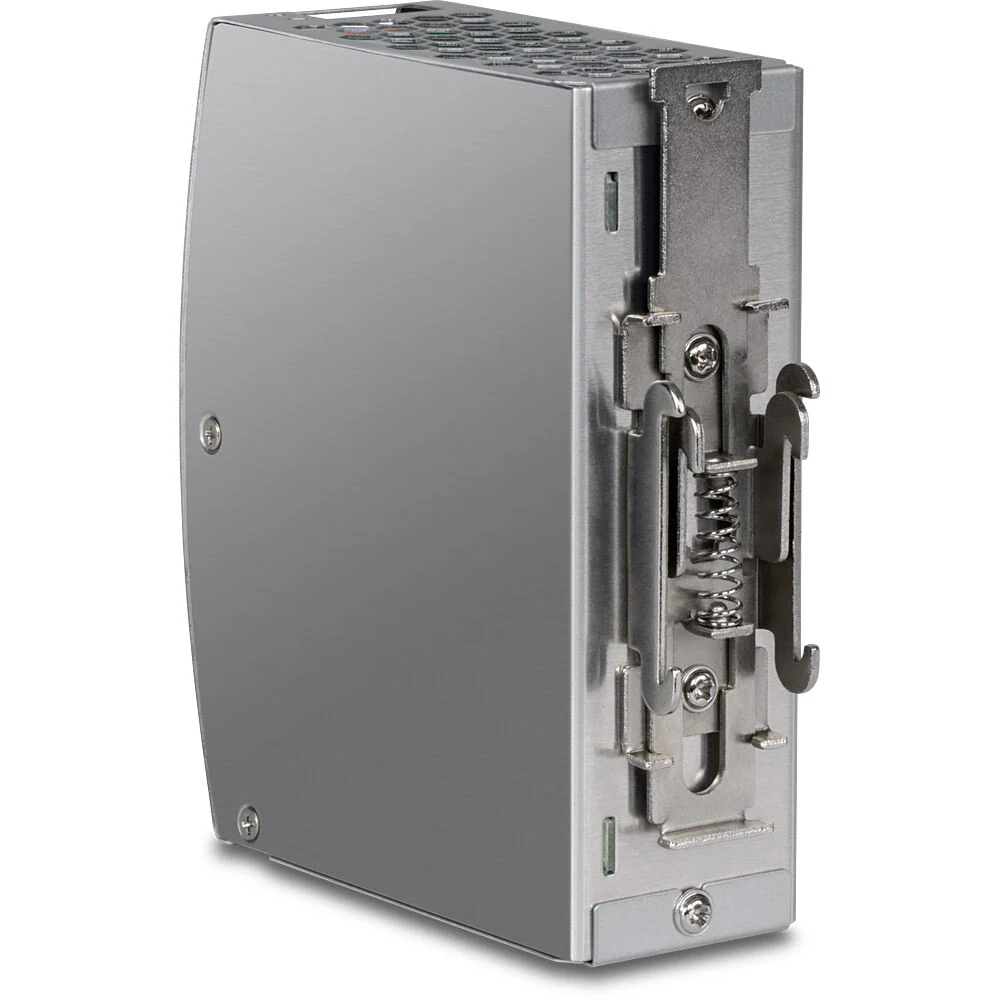

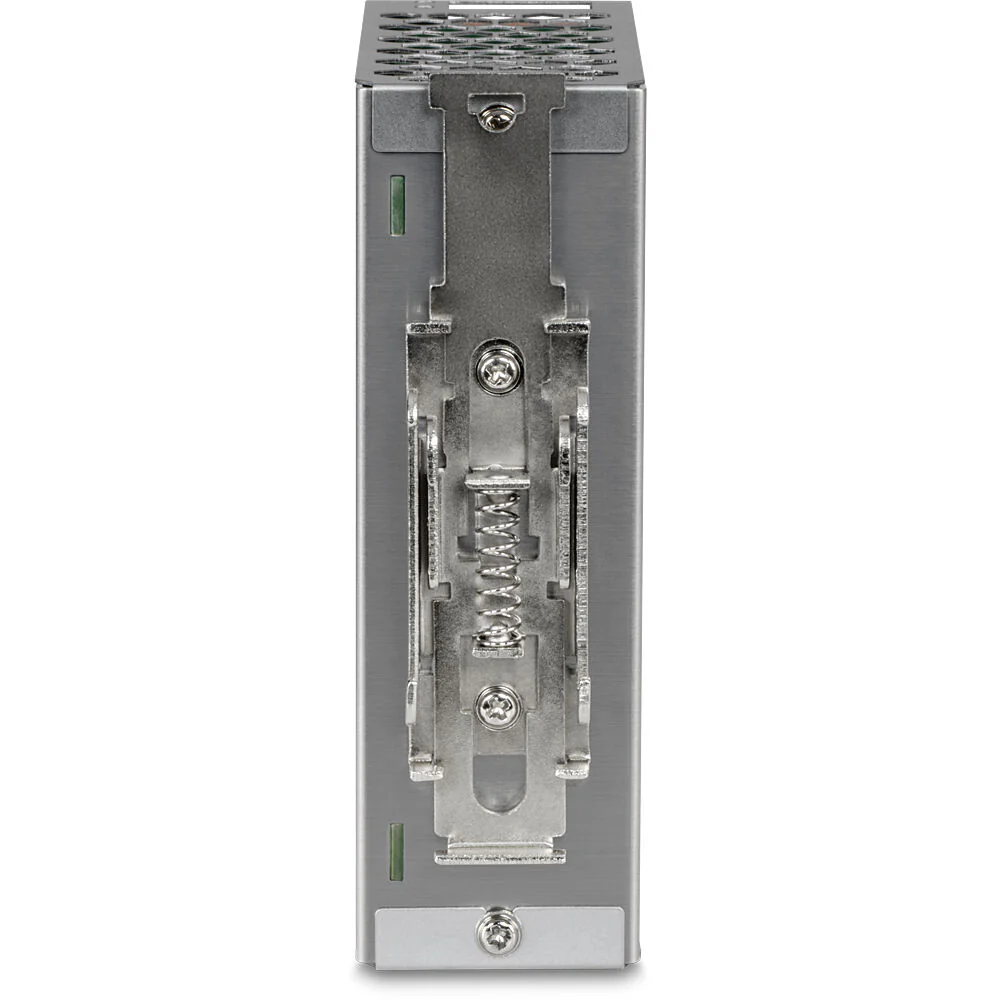

TRENDnet 150W DIN-Rail Industrial Power Supply
TRENDnet TI-S15052 Overview
Supporting industrial applications such as warehouse surveillance, the 150W DIN-Rail Industrial Power Supply from TRENDnet can withstand harsh conditions while powering your equipment.
Mountable onto a DIN-rail, this power supply provides up to 150W (52V DC, 2.89A) to devices such as network switches and access points. It is also designed to operate in -13 to 158Ā°F temperatures while being passively cooled. Built-in protections automatically shut the power supply down to avoid damage and an integrated active Power Factor Controller (PFC) helps ensure efficiency.
Items Included
- TRENDnet 150W DIN-Rail Industrial Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
TRENDnet TI-S15052 Specs
| Quantity |
1
|
| Compatibility |
TRENDnet
|
| Power Source |
AC Input
|
| Power I/O |
1x DIN 4-Pin Input
|
| AC Input Power |
90 to 264 VAC, 50 / 60 Hz at 1.8 A
|
| DC Input Power |
127 to 370 VDC
|
| Maximum Power Output |
150 W (56 VDC / 2.9 A)
|
| Load Capacity |
150% (Peak)
|
| MTBF |
200,000 Hours
|
| Circuit Protection |
Short Circuit, Over Power, Over Voltage, Over Current, Over Temperature
|
| Mounting |
1xĀ DIN Rail
|
| Environmental Resistance |
No
|
| Certifications |
CBĀ IEC 62368, CE, FCC, ULĀ 530470
|
| Dimensions |
4.9 x 4 x 1.6" / 125.2 x 102 x 40Ā mm
|
| Weight |
1.2Ā lb / 542Ā g
|
| Package Weight |
1.485 lb
|
| Box Dimensions (LxWxH) |
6.6 x 6.5 x 2"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
