Tripp Lite 2x1 Bidirectional UHD 4K DisplayPort Switch
Tripp Lite 4K DisplayPort Switch Overview
Digital Signage and Video Presentations
Ideal for digital signage, home theater, and video presentations, the
2x1 Bidirectional UHD 8K/4K DisplayPort Switch from
Tripp Lite lets you toggle between two video sources on a single display or switch one video source between two displays at resolutions up to 8K30 and UHD 4K120. It supports HDR in UHD 4K and is powered through the male DisplayPort or the USB-C input port.
UHD 4K HDR Video
This switch supports up to 8K30 or UHD 4K120 video with compressed and uncompressed audio, respectively. It is compatible with HDR video and has HDCP passthrough for up to UHD 4K content.
Bidirectional Switching

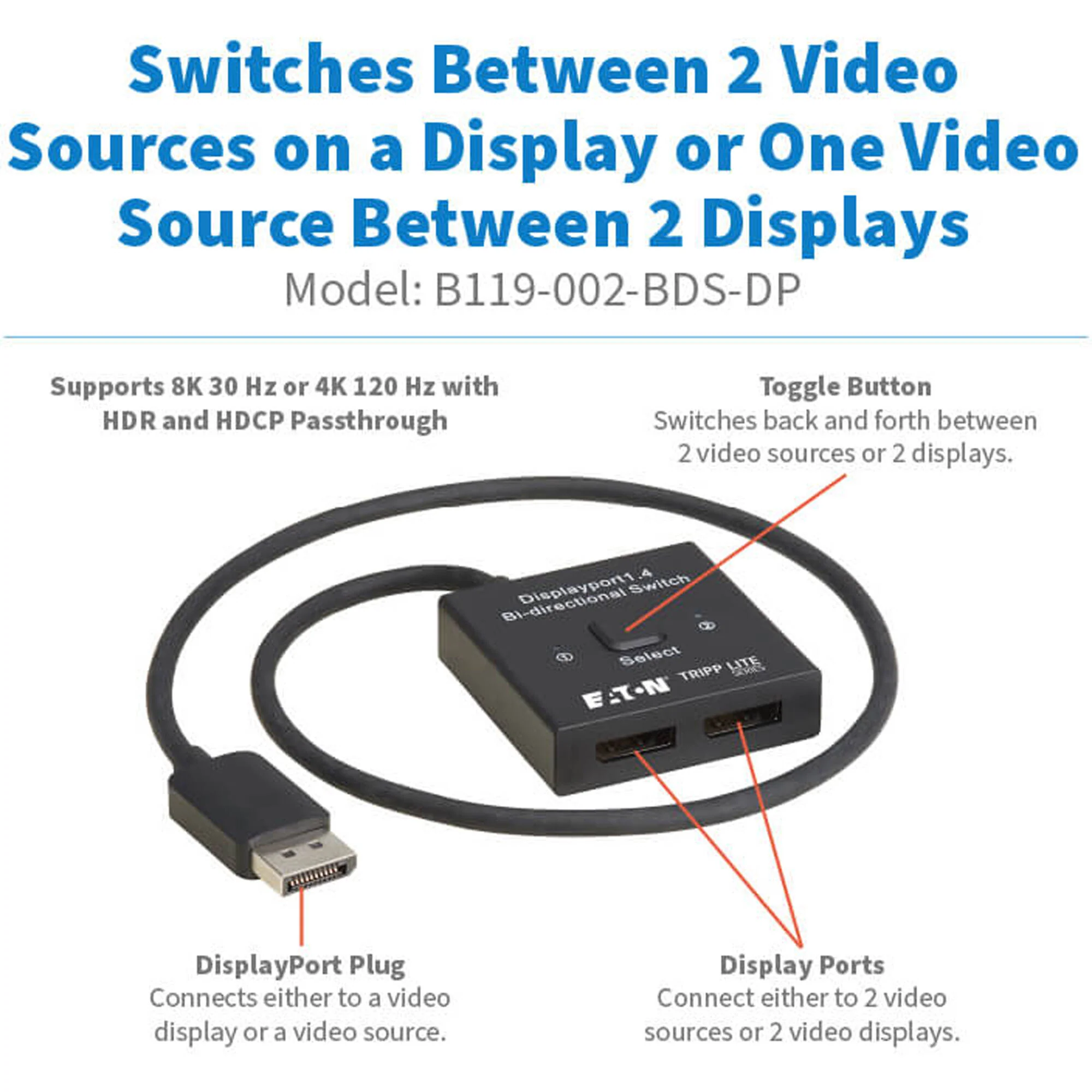

- Seamlessly switch between two sources to one display or one source to two displays using the switch on top of the unit.
- LED lights indicate the selected channel.
USB-C Charging Passthrough
Power is supplied through the DP male connector, but there is a 5V USB-C port used if passthrough charging is required.
UPC: 037332288738
Items Included
- Tripp Lite 2x1 Bidirectional UHD 4K DisplayPort Switch
Additional Resources
Tripp Lite 4K DisplayPort Switch Specs
Processing
| Switching Type |
Pushbutton
|
| Processing Resolution |
8K at 30
|
| Color Processing |
16-Bit 4:2:0
|
Input
| Video Inputs |
1x DisplayPort (1.4)
|
| Input Video Format |
DisplayPort (16-Bit 4:2:0)
8K at 30 fps UHD 4KPsF up to 120 fps |
| Embedded Audio Input |
DisplayPort
|
Output
| Output Video Format |
DisplayPort (16-Bit 4:2:0)
8K at 30 fps UHD 4KPsF up to 120 fps |
| Embedded Audio Output |
DisplayPort
|
Connectivity
| Inputs/Outputs |
1x DisplayPort (1.4) Male (Switchable)
2x DisplayPort (1.4) Female (Switchable) |
| HDR Support |
Yes
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
2x USB-C Input
|
General
| Operating Conditions |
14 to 113?F / -10 to 45?C at 10 to 90% Humidity
|
| Storage Conditions |
14 to 158?F / -10 to 70?C at 10 to 90% Humidity
|
| Certifications |
CE, FCC, RoHS, UKCA, WEEE
|
| Dimensions |
5.3 x 0.9 x 0.14" / 134.6 x 22.9 x 3.56Ā mm
|
| Weight |
2.24Ā oz / 64Ā g
|
Packaging Info
| Package Weight |
0.225 lb
|
| Box Dimensions (LxWxH) |
6.5 x 5.5 x 0.95"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
