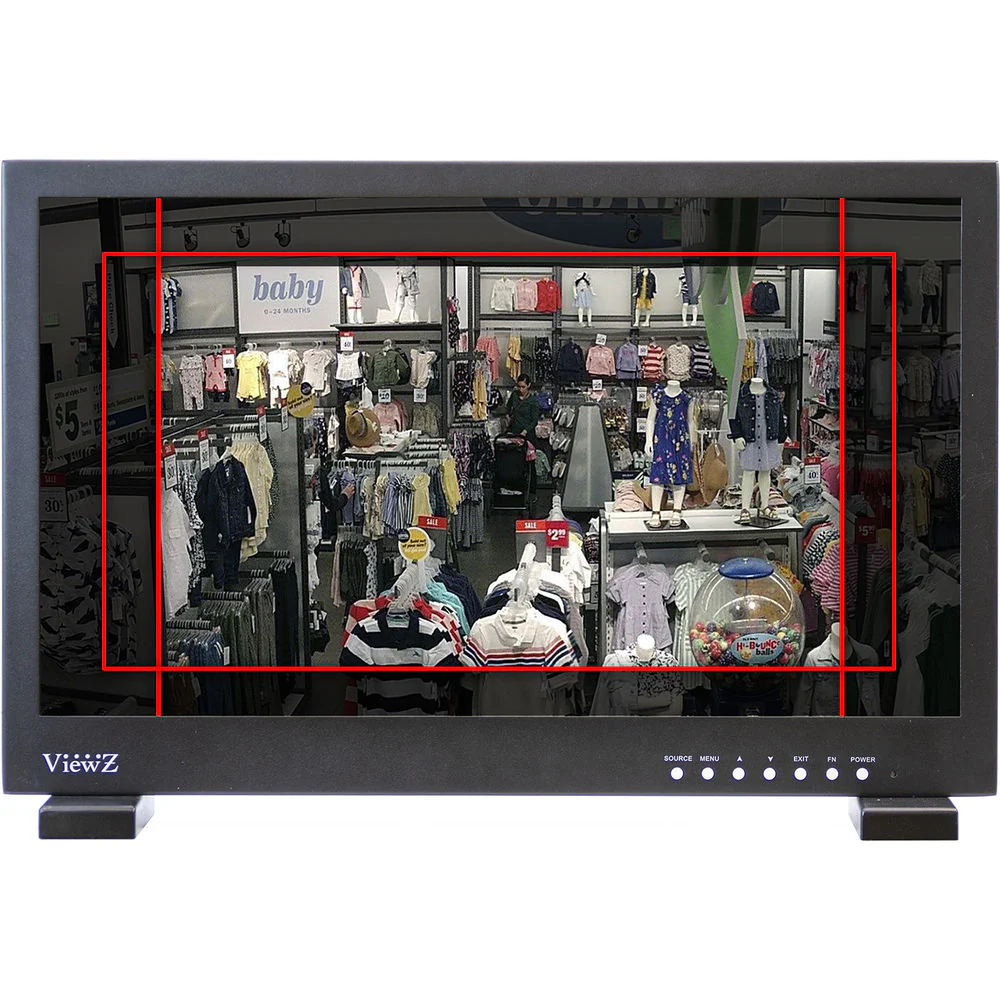

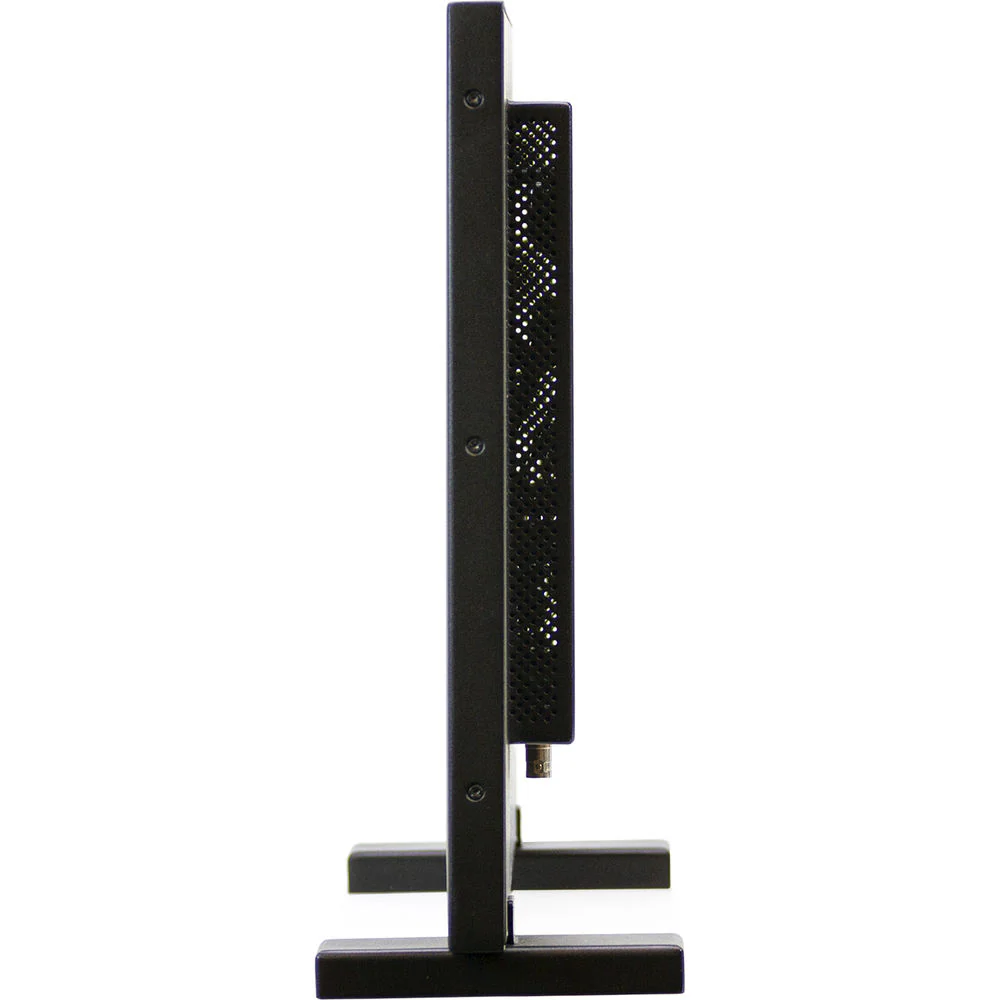

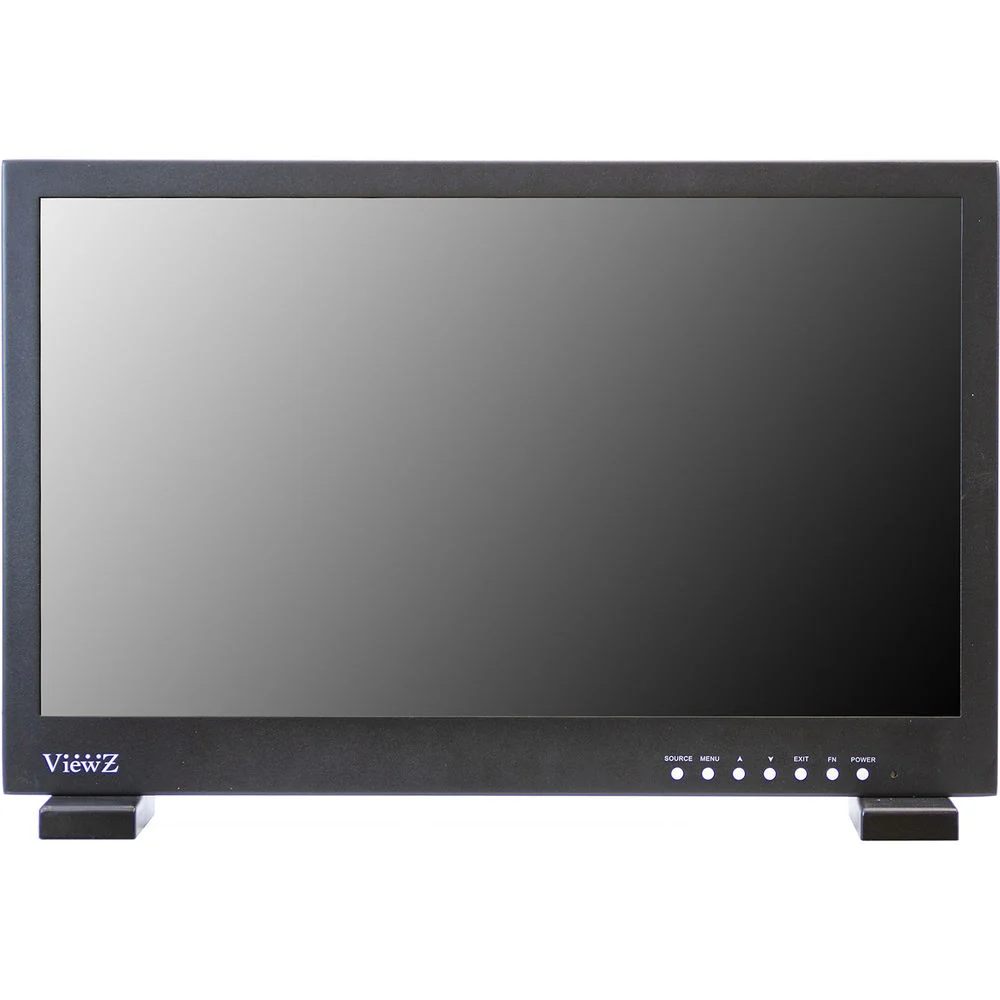

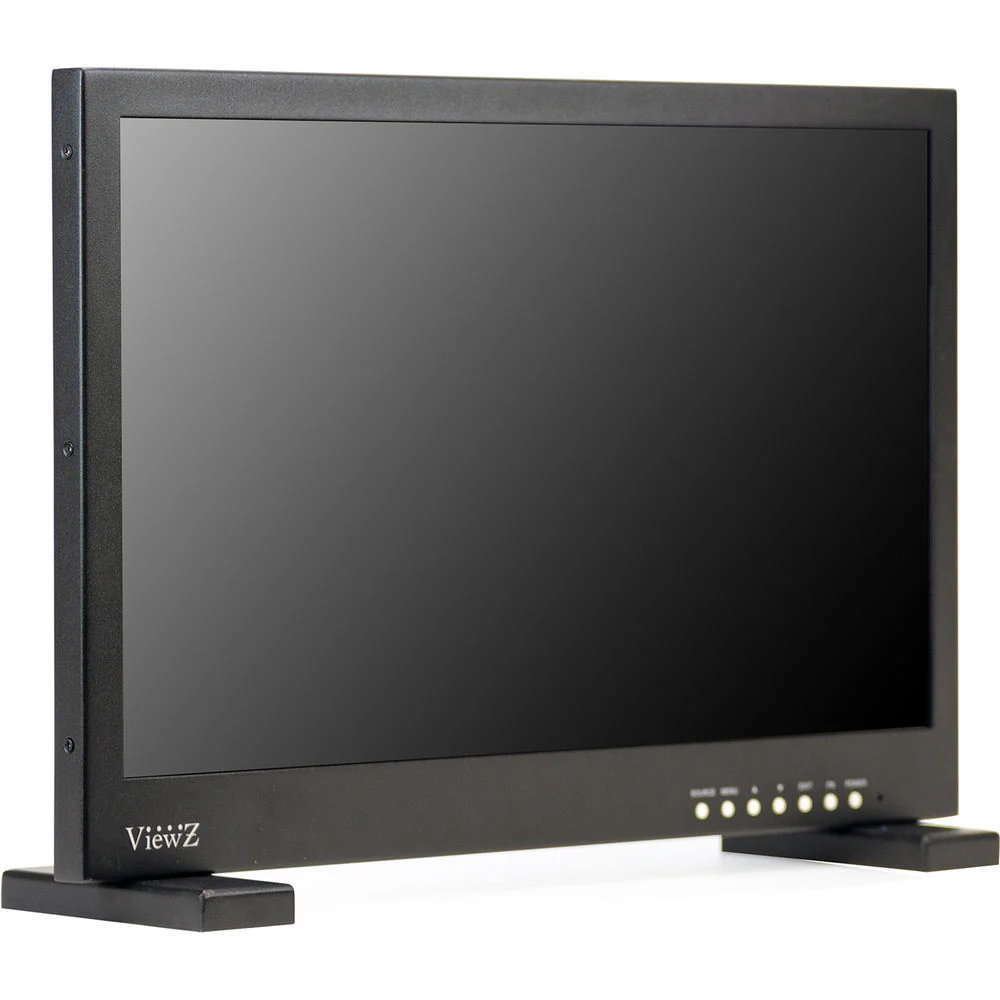

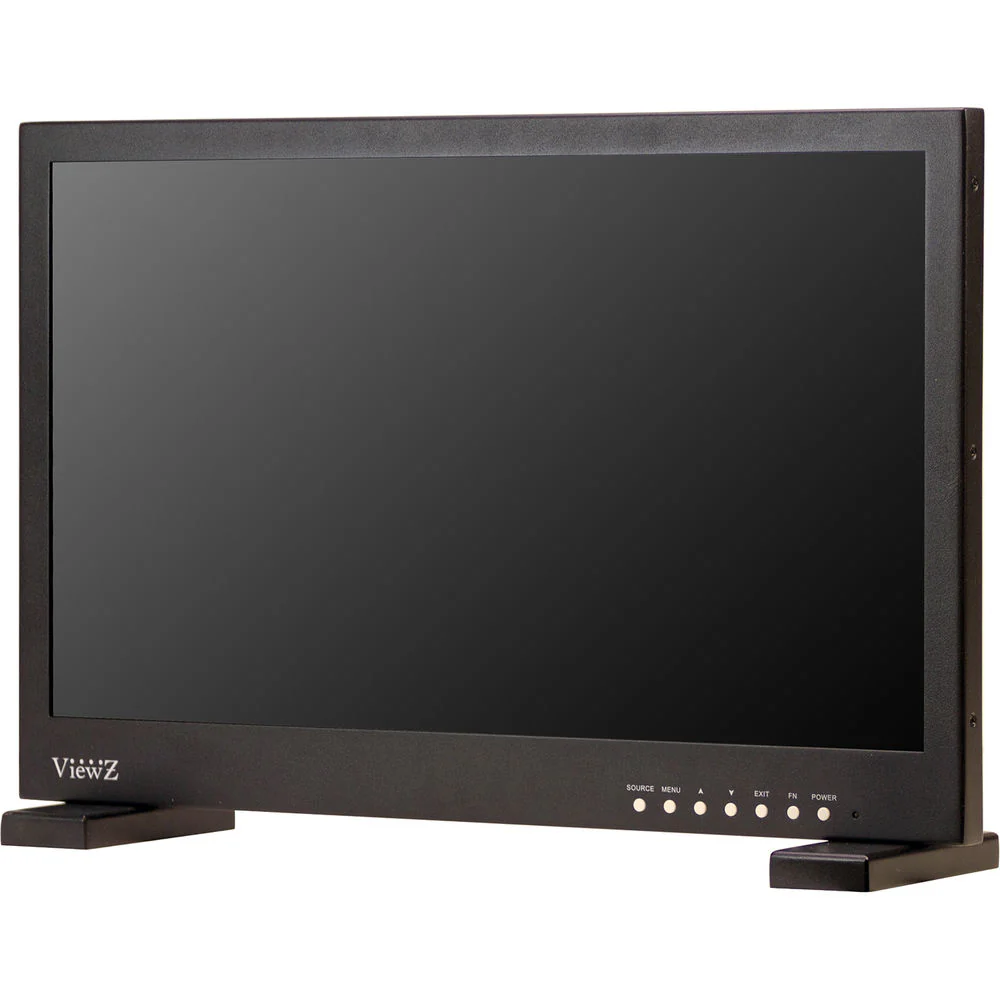

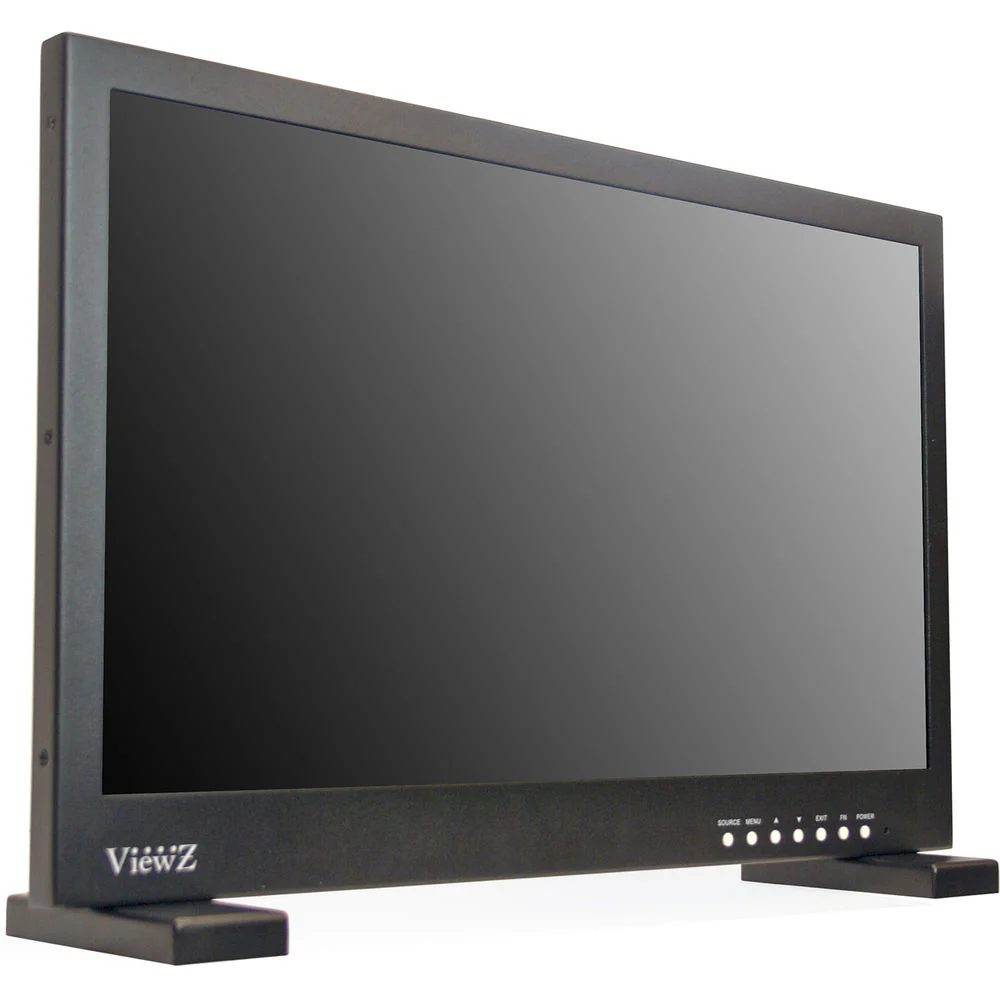

ViewZ VZ-215LED-L1 21.5" Rack-Mountable LED-Backlit Surveillance Monitor
ViewZ VZ-215LED-L1 Overview
The VZ-215LED-L1 21.5" Rack-Mountable LED-Backlit Surveillance Monitor from ViewZ supports a maximum resolution of 1920 x 1080 at 60 Hz. It has 170/160° H/V viewing angles, a 16:9 aspect ratio, and a 1000:1 contrast ratio. This monitor is equipped with built-in speakers, a PC stereo input, and a speaker output. It also has an HDMI, a VGA, a 3G-SDI, a USB, and three composite inputs, as well as a 3G-SDI output. It is NTSC and PAL compatible. VESA mount compliance offers flexible installation options.
LED backlight
NTSC and PAL compatible
Brightness of 250 cd/m²
16.7 million display colors
?5 ms response time
BNC loop-through
1 x USB input
2 x 2W built-in speakers
SDI embedded audio level meter (two channels out of 16 channels)
Line marker and safety area options
RGB gain and bias from -128 to 128
Front assignable function button
Can be mounted on a wall, ceiling, or rack (mounts available separately)
UPC: 815562021505
In the Box
- ViewZ VZ-215LED-L1 21.5" Rack-Mountable LED-Backlit Surveillance Monitor
- Power Adapter
- HDMI Cable
- Base Stand
- Limited 2-Year Warranty
ViewZ VZ-215LED-L1 Specs
Display
| Screen Size (Diagonal) | 21.5" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | Maximum: 1920 x 1080 / 60 Hz |
| Panel Type | Unspecified LCD |
| Brightness | 250 cd/m² (Typical) |
| Viewing Angle (H x V) | 170 x 160° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms |
| Refresh Rate | 60 Hz |
| Dot Pitch | 0.24825 x 0.24825 mm |
| Backlighting Technology | LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 3 x BNC Component � Video (Rear) 1 x SDI � Video (Rear) 1 x 15-Pin VGA � Video (Rear) 1 x HDMI � Video (Rear) 1 x 1/8" / 3.5 mm � Audio (Rear) |
| Output Ports | 1 x SDI � Video (Rear) 1 x Speaker Terminal � Audio (Rear) |
| USB Ports | 1 x USB (Version Unspecified) (Rear) |
| Ethernet Ports | None |
| Digital Media Slot | None |
Audio
| Built-In Speakers | Yes, 2 x 2 W |
| Speaker Configuration | 2-Channel |
Convenience
| Analog Video Formats | NTSC, PAL |
Electrical
| Power Consumption | Typical: < 24.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC |
| Power Adapter Type | External |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Certifications | CE, FCC, as per Manufacturer |
Physical
| Wall Mounting | 100 x 100mm |
| Material of Construction | Metal |
| Dimensions | 20.3 x 13.7 x 1.7" / 516.0 x 346.9 x 43.6 mm |
| Weight | 8.4 lb / 3.81 kg |
Packaging Info
| Package Weight | 17.065 lb |
| Box Dimensions (LxWxH) | 23.2 x 18.6 x 5.1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
