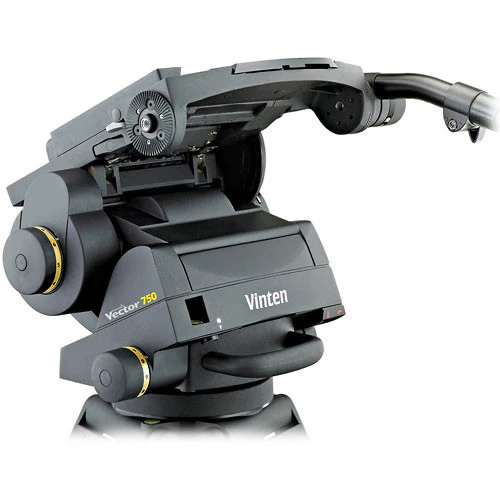

Vinten V4034-0001 VECTOR 750 Fluid Head
- 75kg Payload
- Stainless Steele Internal Components
- Black Color
The Vinten V4034-0001 Vector 750 is a studio pan and tilt tripod head. The Vector 750 is a combination of the functionality and durability of the Vector 700 Standard and "H" versions. It features an improved side-plate bracket and accessory holder.
- Perfect Balance
- The Vector 750 uses a unique counterbalance mechanism that does not use springs or cams. Instead a system of mechanical linkages balances cameras with various centre-of-gravity points, making adjustment simple and eliminating the need for time-consuming cam changes when altering the camera configuration.
- Center of Gravity Range
- The Vector 750 features a Centre of Gravity range span of 80mm-250mm. This covers the full C of G of both the Vector 700 models, creating a broad range of product capability and making product selection much easier. In addition the Vector 750 has an increased maximum payload of 75kg, allowing a greater use of camera accessories such as talent monitor and spotlights.
- Control Brakes
- Effective rear control brakes, positioned in the rear of head, where the operator can easily reach them to engage or release. To effectively lock the head the way you want to have it positioned.
- Illuminated Bubble
- Built-in illuminated bubble for horizontal leveling, ensuring easy leveling even under unfavorable lighting conditions.
In the Box
Vinten V4034-0001 VECTOR 750 Fluid Head
- Telescopic Pan Bar Handle and Clamp
- Short Pan Bar and Clamp
- Wedge Plate
- Mitchell Base Mount
- 1-Year Parts and Labor Warranty.
Extended Warranty available for up to 2-years by returning registration form or by registering online at www.vinten.com .
| Load Capacity | 165.35 lbs (75kg) |
| Diameter/Thread | 4-Bolt Fixing |
| Counter Balance System | Vector Counter Balancing System |
| Counter Balance Range | Up to 165.35 lbs |
| Center of Gravity | 3" to 10" Range |
| Quick Release/Wedge Plate | Yes |
| Balance Plate | Wedge Adapter with 13" Platform Adjustment Side Plate Adjustment |
| Tilt Drag | Infinitely Variable, 0 to 9 |
| Tilt Range | �52� |
| Tilt Lock | Flick On/Off Locks |
| Spring Loaded Counter Balance | Infinitely Variable, 0 to 9 |
| Pan Range | 360� |
| Pan Lock | Flick On/Off Locks |
| Leveling Bubble/Illuminated | Yes / Illuminated |
| Temperature Range | -40� to +140�F (-40� to +60�C) |
| Weight | 39.4 lbs |
| Packaging Info | |
|---|---|
| Package Weight | 51.1 lb |
| Box Dimensions (LxWxH) | 20.45 x 18.95 x 15.75" |
