Vizrt Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring
Vizrt FG-003297-R001 Overview
Convert and monitor analog audio signals on your NDI network with the Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring from Vizrt. The Viz Connect Audio features eight XLR-1/4" combo analog mono inputs that allows you to convert to NDI for monitoring and connection on your NDI network.
There are also four XLR outputs to convert or pass through analog audio to speakers or a mixer. You can control and monitor the audio and configure the unit via the built-in web GUI. Other features include phantom power, NDI grouping, solo monitoring, selectable mic/line input, and gain control.

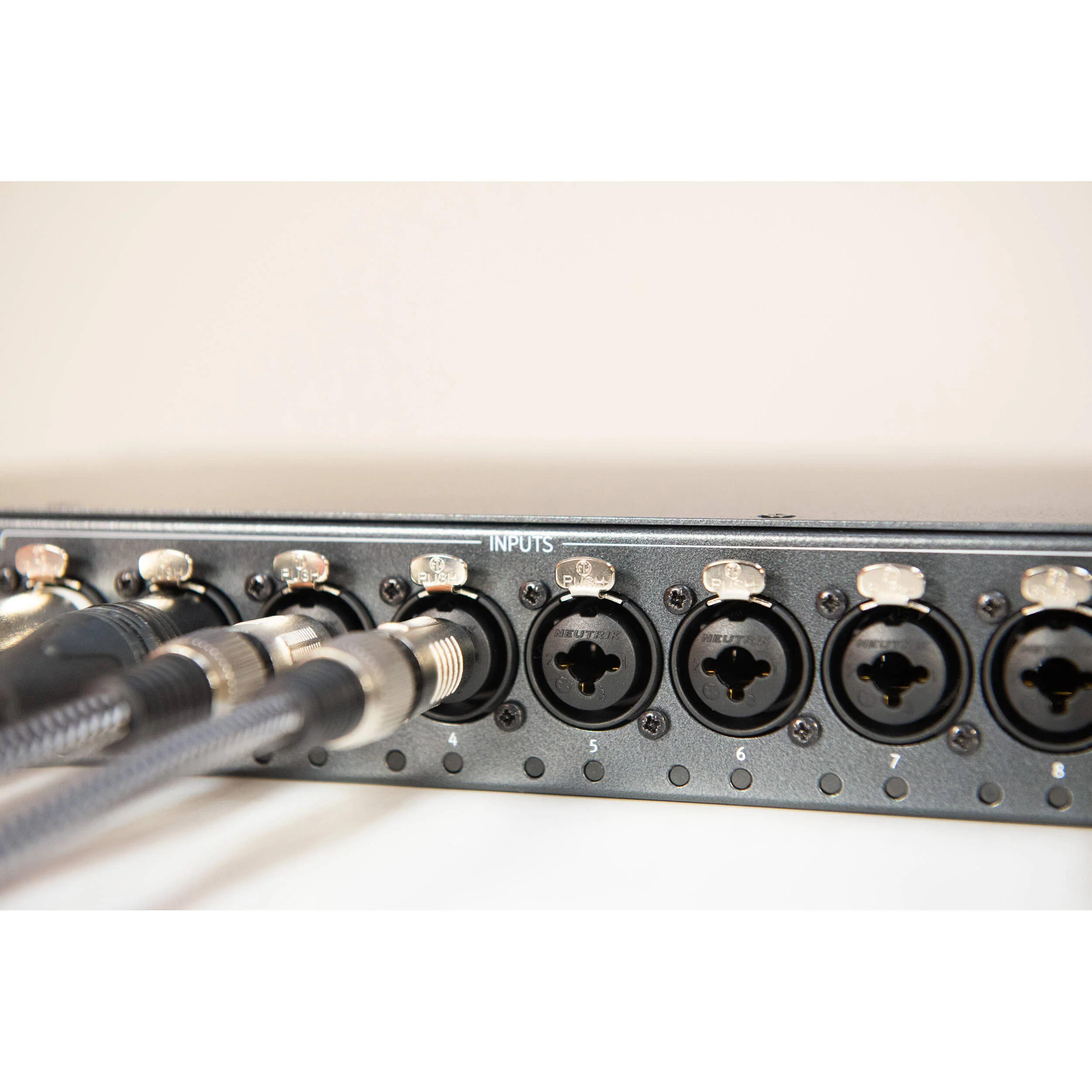

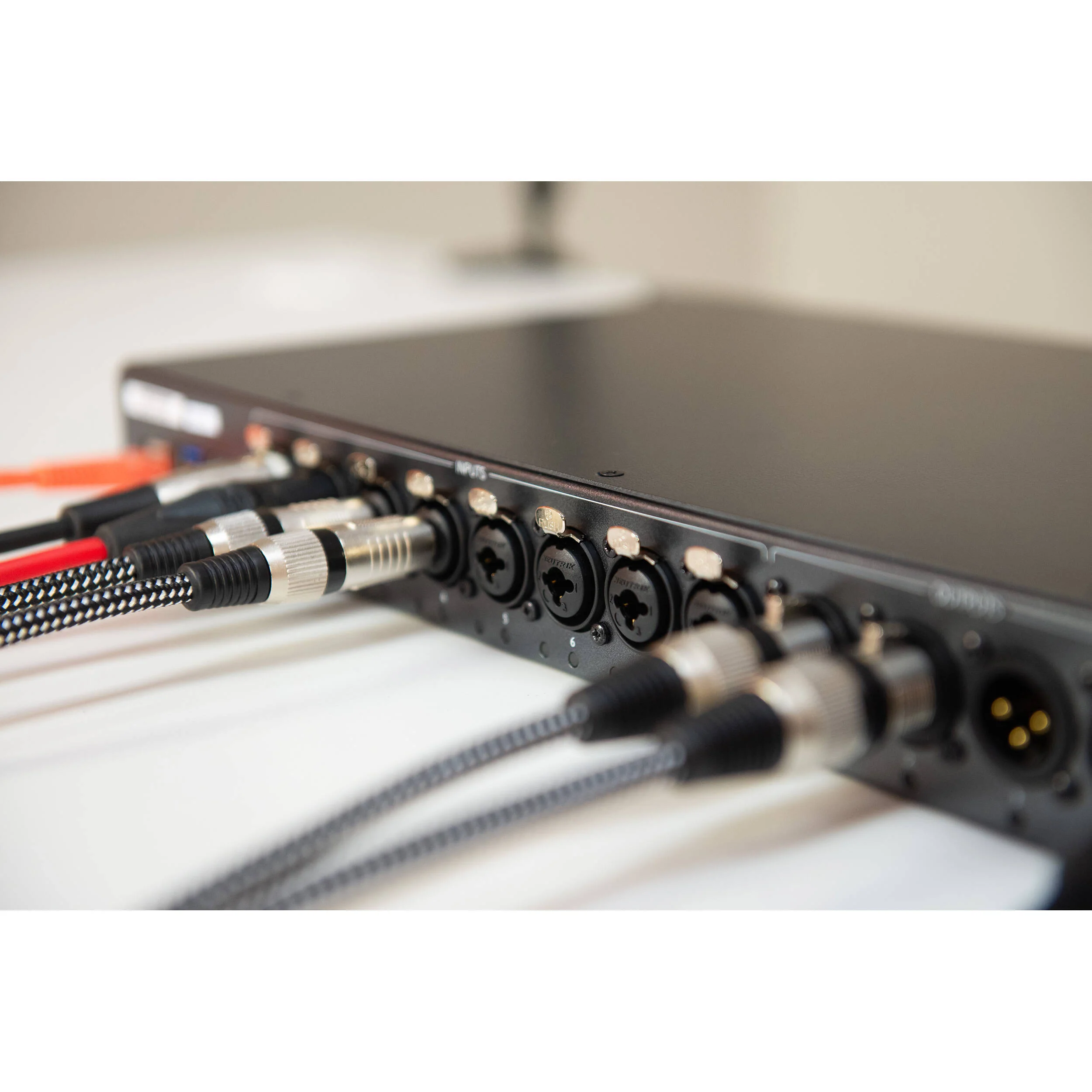

- Eight mono analog inputs via XLR-1/4? combo connectors
- 48 kHz 32-bit floating point NDI conversion
- Gain setting per channel
- Phantom power on/off per channel
- Line/mic setting per channel
- Global SMPTE/EBU setting

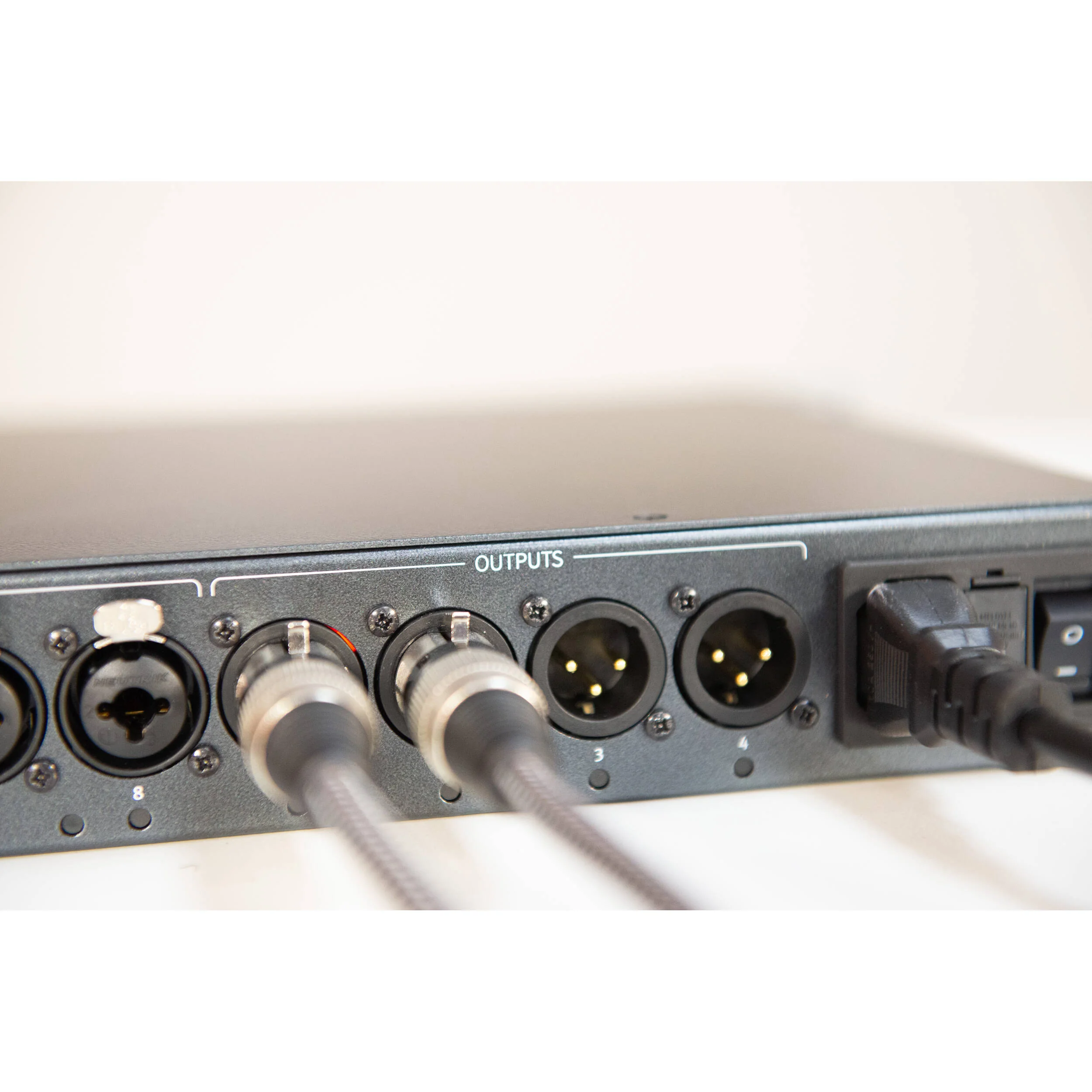

- Four mono outputs via XLR

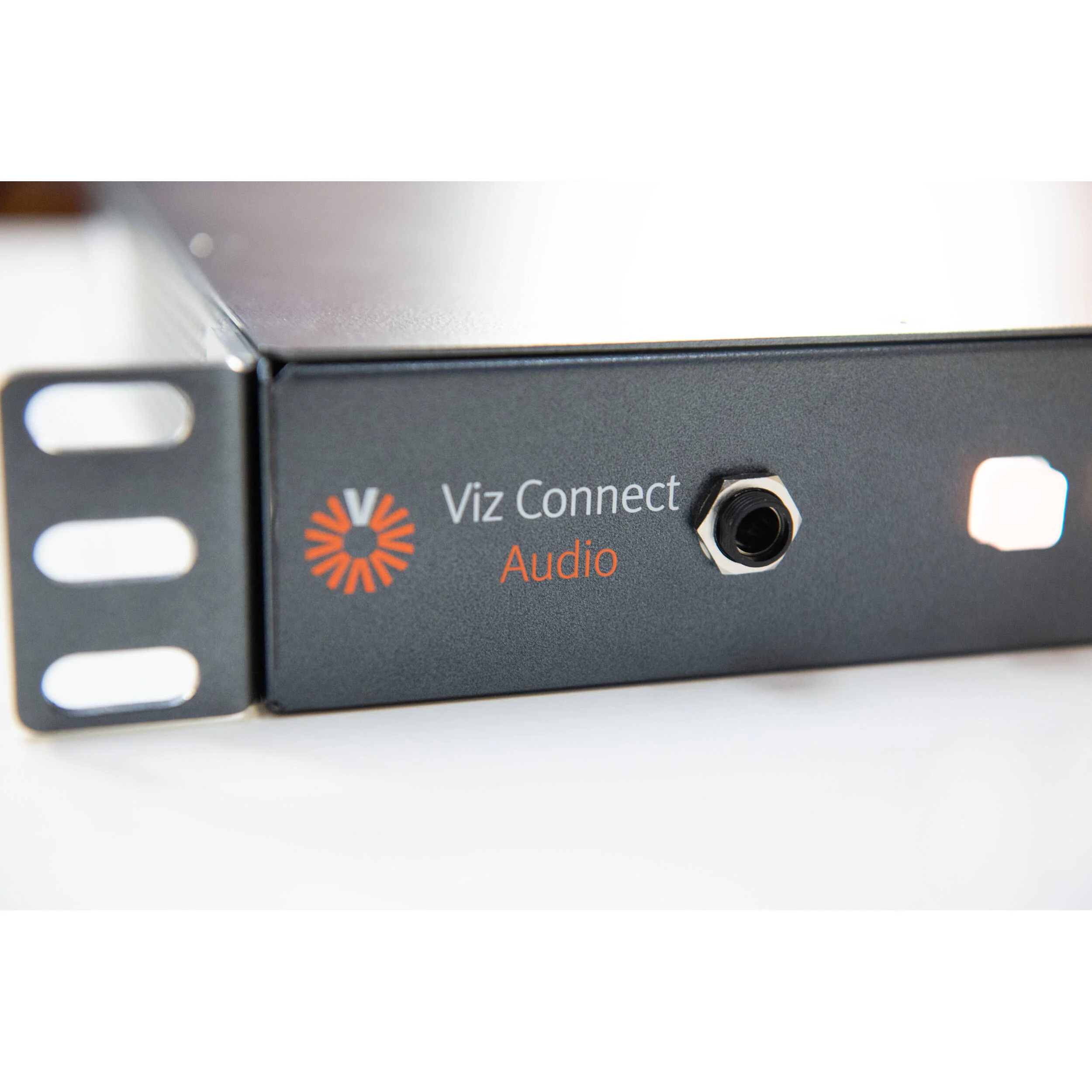

- Headphone jack with solo
- LED indicators for phantom, mic/line, and solo status

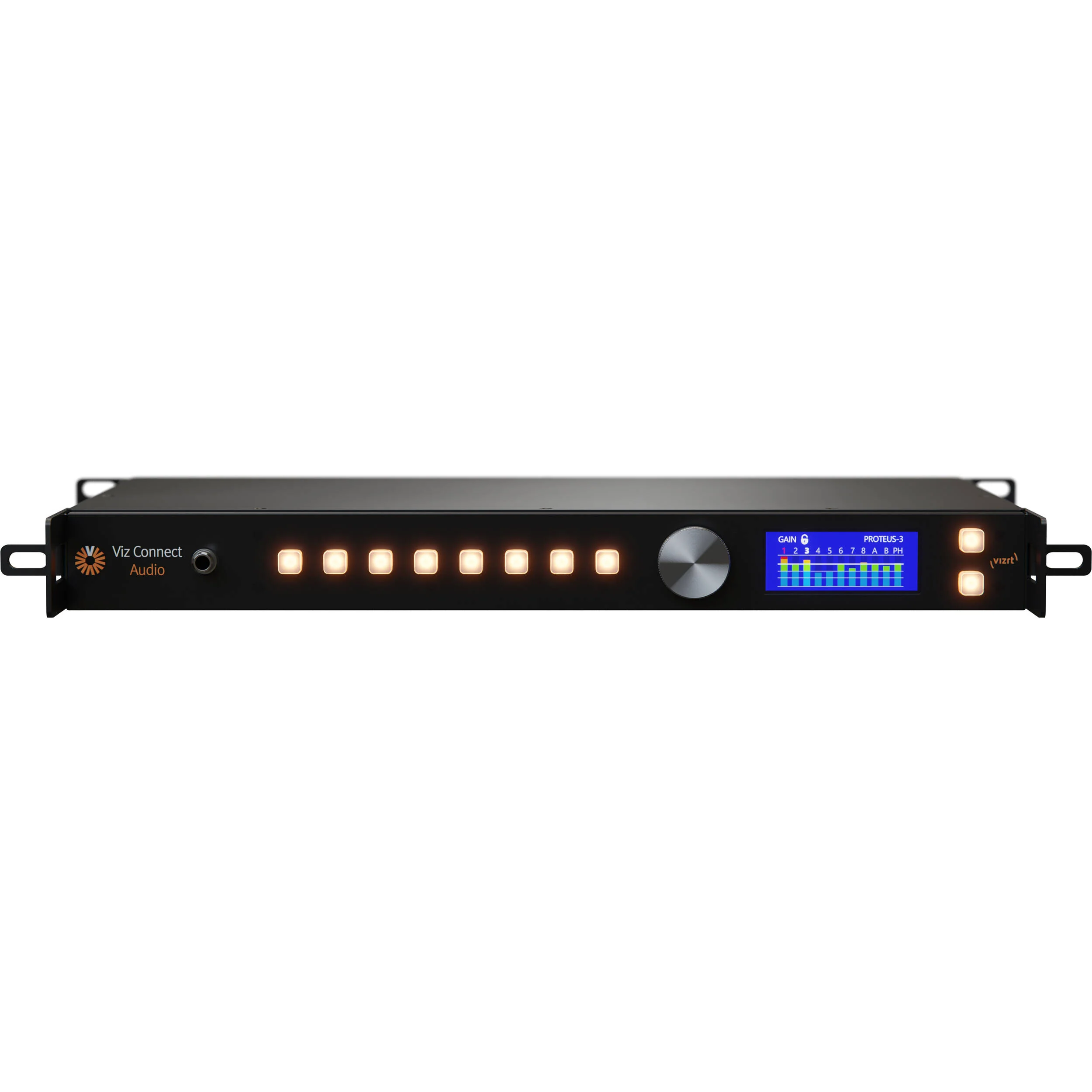

- Front-panel and WebUI control
Items Included
- Vizrt Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring
- Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt FG-003297-R001 Specs
| Compatibility |
Not Specified by Manufacturer
|
| USB I/O |
4 x USB-A Female Input
|
| Audio I/O |

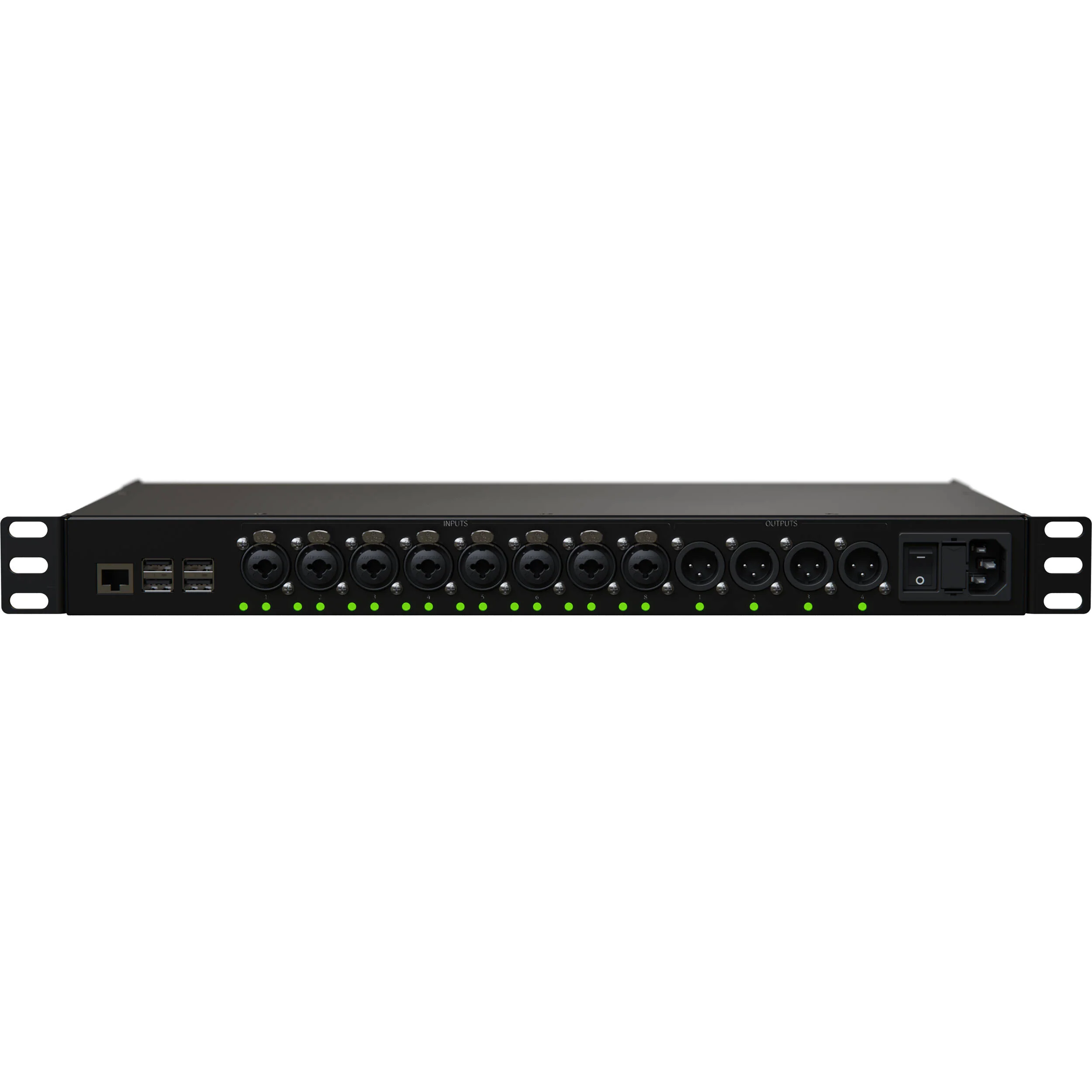

8x Combo XLR-1/4" Line/Mic Input
4x XLR 3-Pin Output 1x 1/4" Headphone Output |
| Other I/O |
1 x RJ45 NDI/LAN
|
| Phantom Power |
Yes
|
| Display |

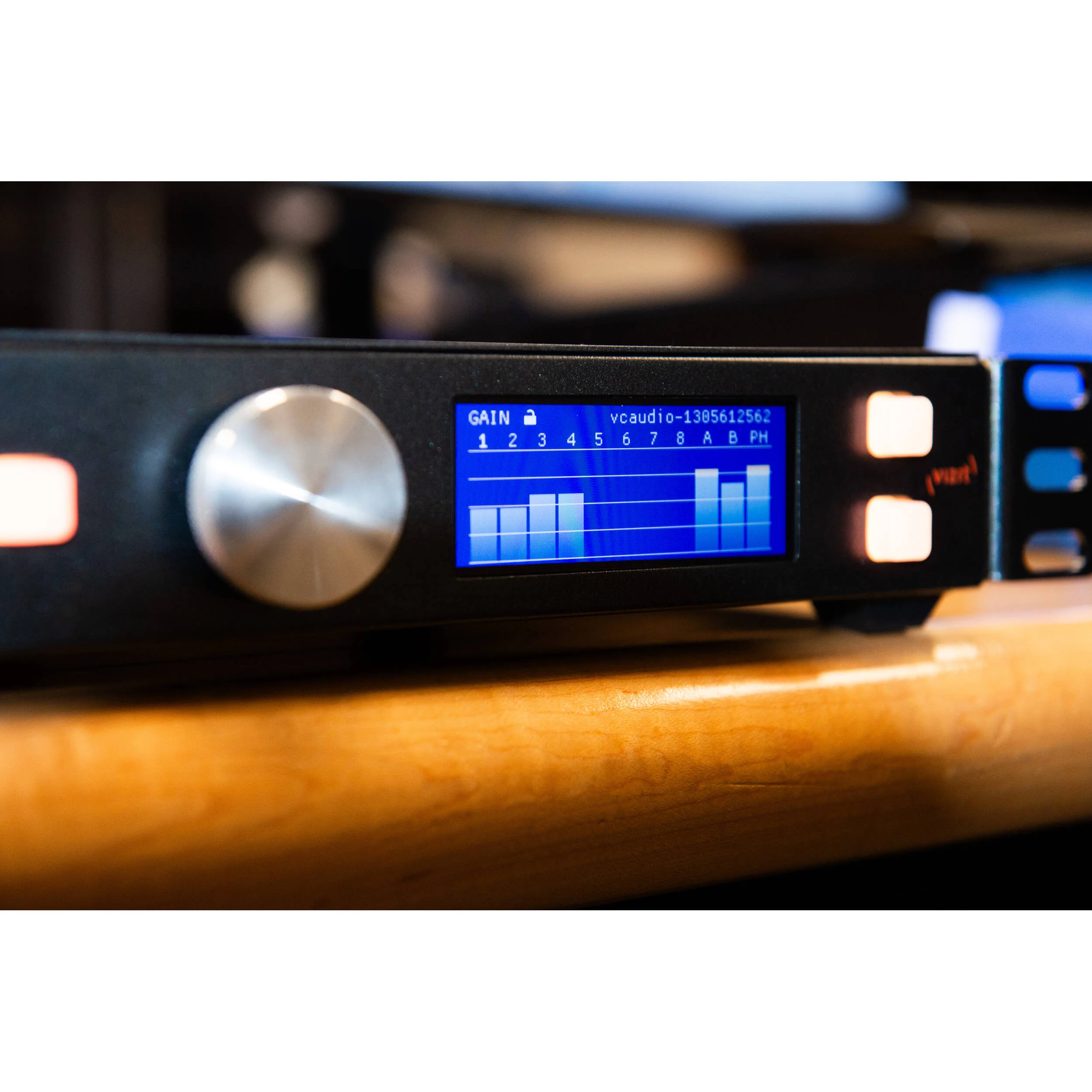

Yes, Front LCD
|
| Power Source |
AC Input
|
| Mounting |
1xĀ Rackmount Bracket System
|
| Color |
Black
|
| Package Weight |
10.575 lb
|
| Box Dimensions (LxWxH) |
23.6 x 15.6 x 7.4"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
