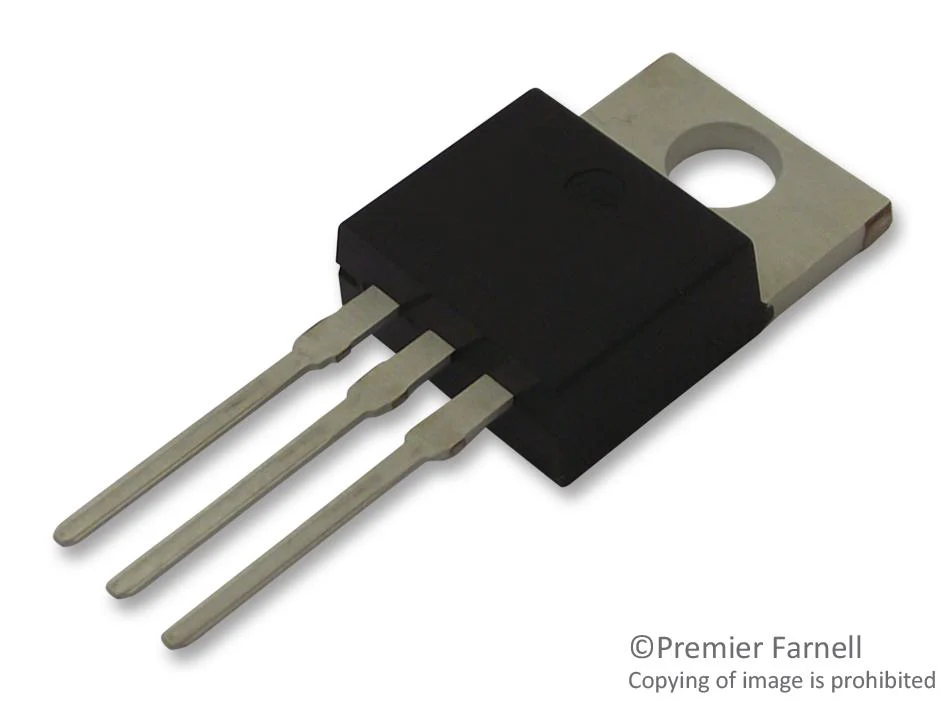

Ween Semiconductors BT136-600E127 Triac 600 V 4 A TO-220AB 25 mA 1 5 W
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 600V |
| On State RMS Current IT(rms) | 4A |
| Triac Case Style | TO-220AB |
| Gate Trigger Current Max (QI), Igt | 25mA |
| Gate Trigger Voltage Max Vgt | 1V |
| Peak Gate Power | 5W |
| Peak Non Rep Surge Current Itsm 50Hz | 25A |
| Holding Current Max Ih | 15mA |
| No. of Pins | 3Pins |
| Operating Temperature Max | 125Ā°C |
| Product Range | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | WEEN SEMICONDUCTORS |
| Part Number | BT136-600E,127 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
