Weidmuller WF6 WF6 DIN Rail Mount Terminal Block 1 Ways 14 AWG 2 35 mm² Screw 115 A

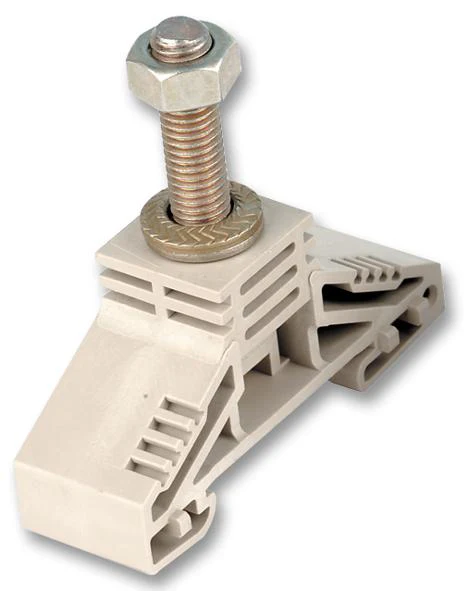

The WF6 is a Bolt-type Screw Terminal Block with 35mm² wire cross section area. Threaded stud connection and snap-on mounting with TS 15 rail mount. Dark beige colour, M6 stud size for spade connection and 14AWG minimum to 2AWG maximum wire size. The 1780850000 feed-through bolt-type screw terminal with threads from M5 to M16 can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a V-0 (UL 94) flammability rating guarantee maximum safety. The conductors are attached to the terminals using crimped cable lugs and each connection secured by tightening the hexagonal nut and offers secure connections for all power transmission applications.

• Wemid insulator

Applications

Power Management

Other details

Brand	WEIDMULLER
Part Number	WF6
Quantity	Each
Technical Data Sheet EN
