WyreStorm 8x8 4K30 HDBaseT Matrix Kit with 8 x Receivers (115')
WyreStorm MX-0808 Overview
- 1Description
- 2Applications
- 3UHD 4K and HDR Support
- 4Audio De-Embedding
- 5A/V Mute
- 6CEC Triggering

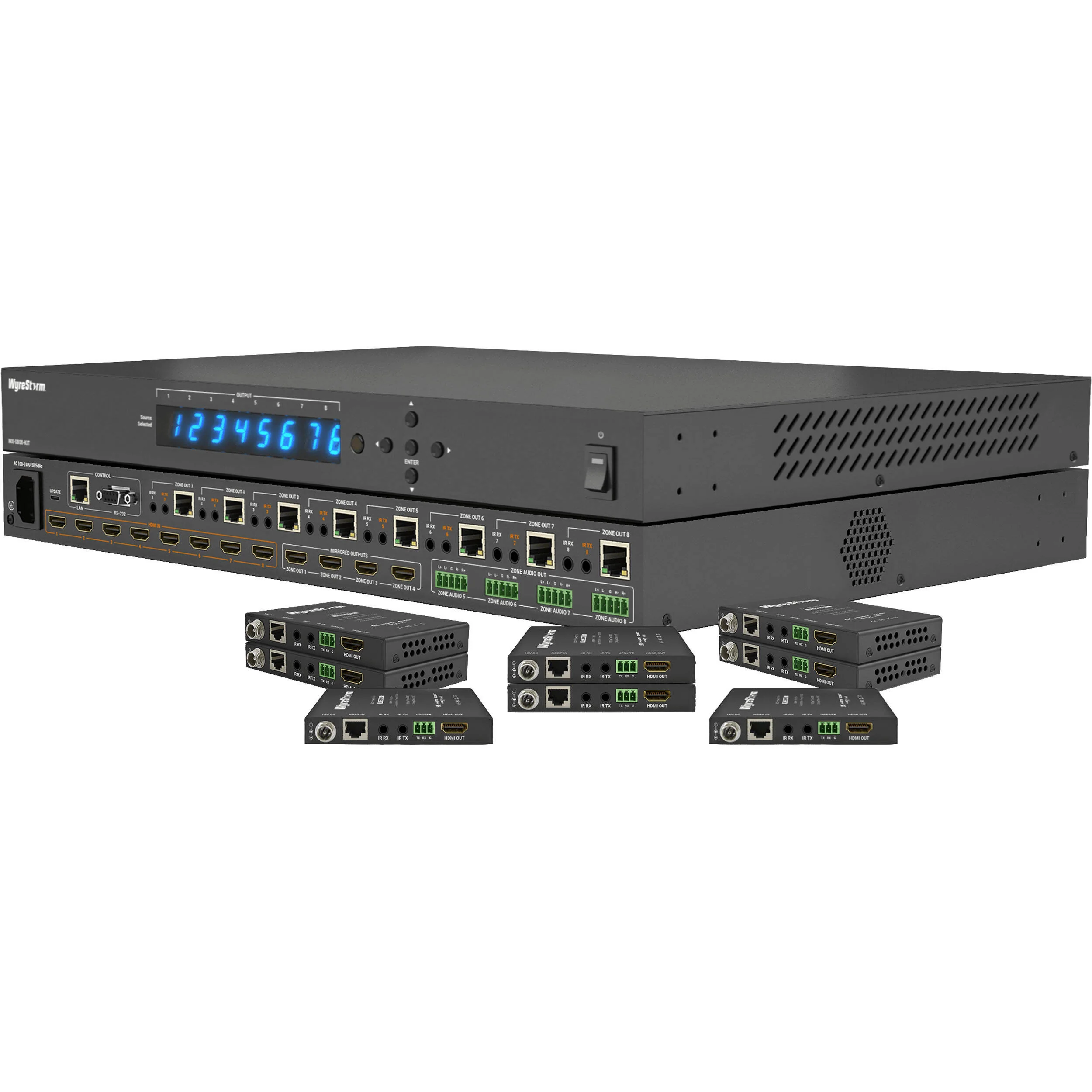

Designed for light commercial installations, the WyreStorm 8x8 4K30 HDBaseT Matrix Kit extends HDMI video up to 115' using HDBaseT and eight receivers. It also offers four mirrored HDMI outputs that can be paired with four additional screens using separate hybrid optical/HDMI cables. Four balanced, 2-channel analog audio outputs can be connected to an audio amplifier or speakers. Matrix Kit features include CEC triggering, A/V muting, and a standby mode to conserve power.
Applications
- Tailored for compact hospitality, education, and HoW (houses of worship) venues, the MX-0808-KIT-V2 provides a workhouse AV matrix distribution system for up to eight endpoints.
- A standby mode saves energy when the system is not in use, extending its longevity.
UHD 4K and HDR Support
- This 8x8 matrix supports up to UHD 4K60 4:2:0 video, providing compatibility with most current source devices.
- It supports 10-bit HDR content at rates up to UHD 4K30 and multichannel audio.
- HDBaseT is used to transmit video, IR control, and PoH (power over HDBaseT) to the receivers at distances up to 115'.
Audio De-Embedding
- The four balanced analog audio breakouts follow the last four HDBaseT outputs, enabling you to connect long-run audio cable without audio interference.
A/V Mute
- The 8x8 matrix provides the ability to "mute" both video and audio output, enabling you to independently switch off the HDMI signals via the API.
CEC Triggering
Using automatic signal presence detection or API triggering, this kit can send power trigger commands to all compatible connected screens or projectors.
UPC: 814303015704
In the Box
- WyreStorm 8x8 4K30 HDBaseT Matrix Kit with 8 x Receivers (115')
- 8x8 Matrix
- 8 x Receiver
- AC Power Cord (UK/US/EU)
- Remote (Battery Not Included)
- 8 x IR Emitter
- 8 x IR Receiver
- 2 x Mounting Bracket (2/Receiver)
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Applications
- UHD 4K and HDR Support
- Audio De-Embedding
- A/V Mute
- CEC Triggering
WyreStorm MX-0808 Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Latency |
10 ms
|
| Processing Resolution |
UHD 4K at 60
|
Input
| Video Inputs |
8x HDMI
|
| Input Video Format |
HDMI (10-Bit 4:2:0)
UHD 4K up to 24 fps HDMI (8-Bit 4:4:4) UHD 4K up to 30 fps HDMI (8-Bit 4:2:0) UHD 4K up to 60 fps HDMI (16-Bit) 1080p at 60 fps |
| Embedded Audio Input |
HDMI: 2-Channel
|
Output
| Video Outputs |
8x RJ45 (HDBaseT)
|
| Output Video Format |
RJ45
UHD 4K up to 24/30/60 fps |
| Audio Outputs |
4x XLR 5-Pin Stereo Analog
|
| Output Audio Format |
Analog
|
| Embedded Audio Output |
HDMI: 2-Channel
|
Connectivity
| Other I/O |
8x 1/8" / 3.5 mm IR Input
8x 1/8" / 3.5 mm IR Output 1x RJ45 LAN 1x DE-9/DB-9 RS-232 |
| HDR Compatibility |
HDR10, Hybrid Log Gamma
|
| DTS Compatibility |
DTS:X
|
| Dolby Compatibility |
Dolby Atmos
|
Hardware
| Mobile App Compatible |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x IEC C14 (100 to 240 VAC) Input
|
| Power Consumption |
105.4 W
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
10 to 90% ()
|
| Storage Humidity |
10 to 90% (Non-Condensing)
|
General
| Certifications |
CE, EAC, FCC, RCM, RoHS
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 11.8 x 1.7" / 440 x 300 x 43.5 mm
|
| Weight |
8.95 lb / 4.06 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
