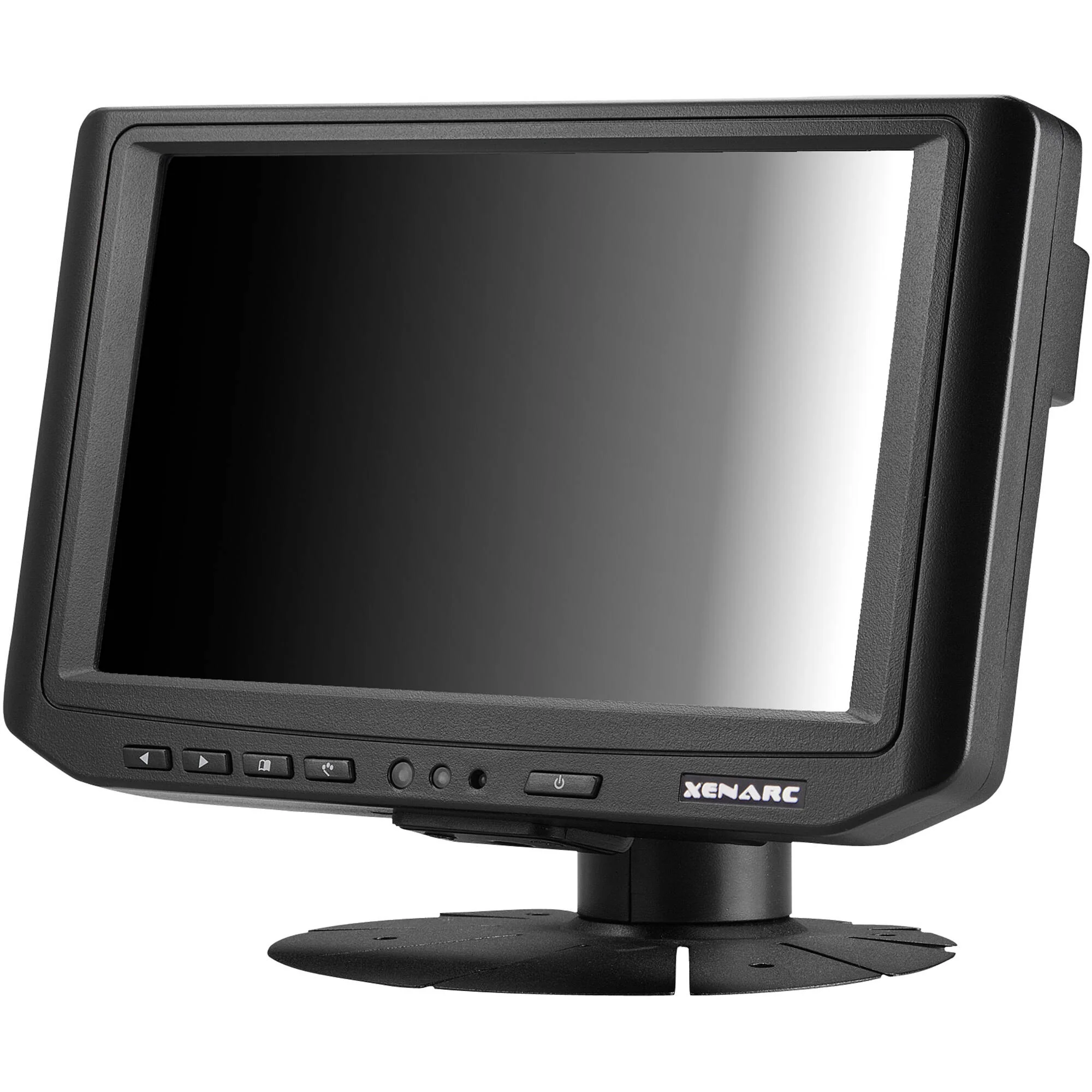

Xenarc 702YH 7" Class 1024 x 600 Class Multi-Purpose LED Monitor
Xenarc 702-YH Overview
Add a display to nearly any project with the Xenarc 702YH 7" Class 1024 x 600 Class Multi-Purpose LED Monitor. With its automotive use certification, it can be installed in vehicles for in-car computing, mobile production, and more. It features HDMI, VGA, and composite video connectivity via the included breakout cable. An IR remote control is also included as an added convenience.
Use Cases
- Transportation: Marine, air, heavy vehicles, mining, weigh stations, fleet management, telematics, in-car computing, public transit, cargo
- System Integration: Machinery controls, factory automation, environmental monitoring, home automation, military, smart home
- Point of Sale: Hospitality, digital signage, self-service kiosks, outdoor kiosks and signage, casinos
- Data Monitoring: Cloud, IoT, medical, logistics, inventory management, oil & gas/utilities, law enforcement, broadcast, veterinary, first-person view
- Broadcast & Production: Broadcast stations, mobile production vehicles, field rugged deployment for your mobile workforce, studio video production
Features
- 1000 cd/m² sunlight readable design with long-life LED backlight
- Automatic backlight adjustment through a built-in ambient light sensor
- Anti-reflective and anti-fingerprint coating
- Solid capacitors for improved durability
- High-performance image and video signal processor
- AISS - Advanced Image-Scaling and Shaping
- Last input and power setting memory
- Auto power-on upon signal detection
- Mirror and vertical image flip
- Function to disable front buttons and on-screen text
- AV2 auto switching for backup camera

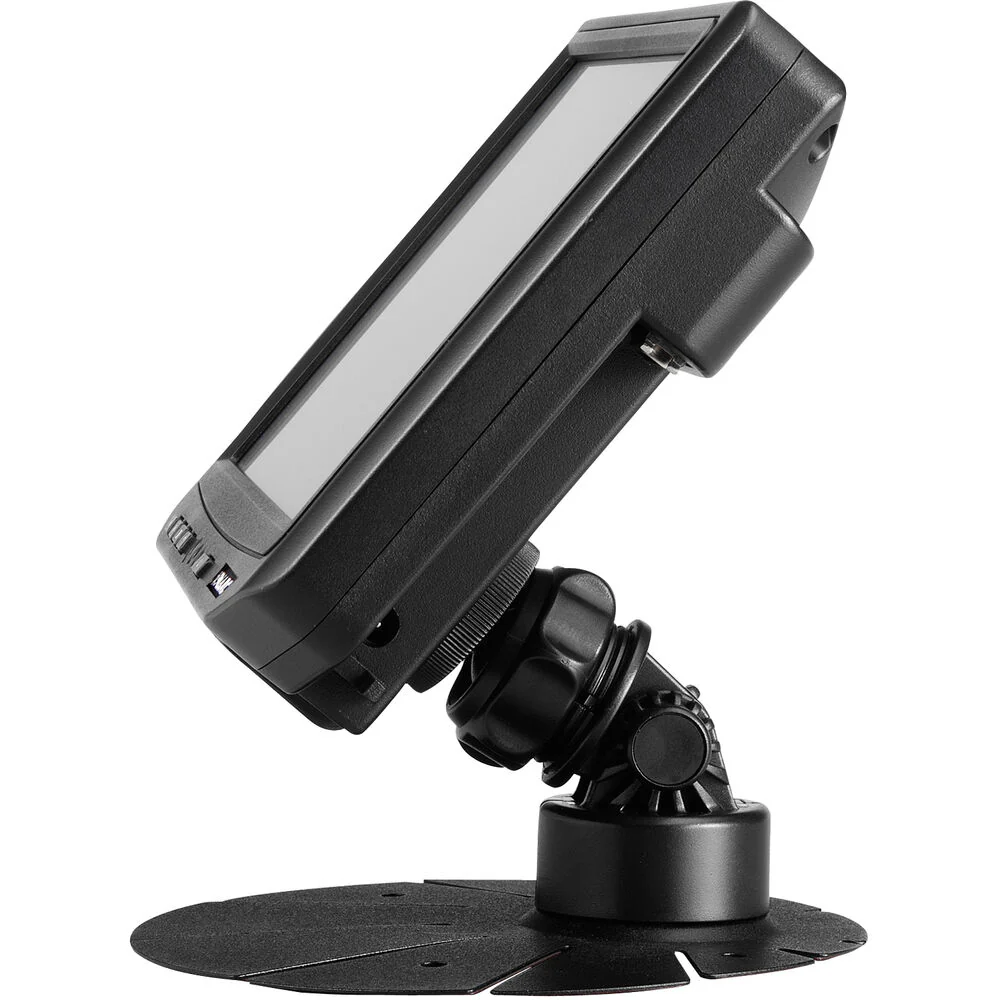

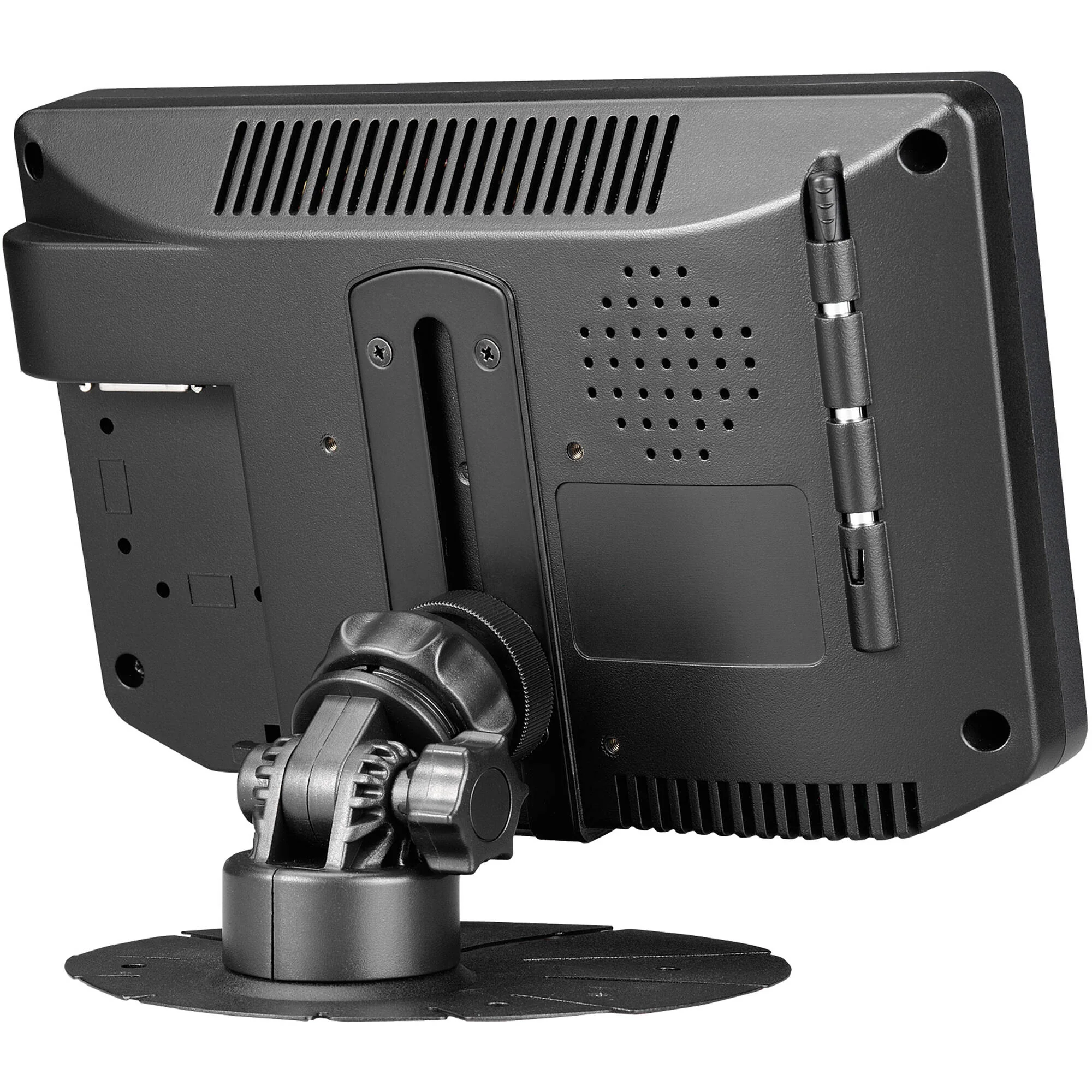

- 360° copper monitor stand
- 26-pin heavy-duty connector with connector locking
- "E" Mark certified for automotive use
In the Box
- Xenarc 702YH 7" Class 1024 x 600 Class Multi-Purpose LED Monitor
- IR Remote Control
- 26-Pin Breakout Cable (6')
- Copper Monitor Stand
- AC Adapter
- Limited 3-Year Warranty
Xenarc 702-YH Specs
Display
| Screen Size (Diagonal) | 7" |
| Resolution | 1024 x 600 |
| Supported Display Resolutions | Maximum: 1920 x 1080 Minimum: 640 x 480 |
| Panel Type | LCD |
| Brightness | 1000 cd/m² |
| Viewing Angle (H x V) | 150 x 145° |
| Aspect Ratio | 15.4:9 |
| Contrast Ratio | 700:1 |
| Response Time | 25 ms (GtG) |
| Backlighting Technology | LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 1 x 26-Pin D-Sub � Audio, Video (Rear) 1 x HDMI � Audio, Video (Included Breakout Cable) 1 x 15-Pin VGA � Video (Included Breakout Cable) 1 x RCA Composite � Video (Included Breakout Cable) 1 x RCA Stereo (L/R) � Audio (Included Breakout Cable) |
| USB Ports | 1 x USB (Version Unspecified) (Included Breakout Cable) |
| Ethernet Ports | None |
General
| HDCP Support | Yes |
| Ambient Light Sensor | Yes |
Audio
| Built-In Speakers | Yes |
Electrical
| Power Consumption | Typical: < 10.0 W |
| DC Input Power | 10 to 35 VDC |
Environmental
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Storage Temperature | -22 to 176°F / -30 to 80°C |
| Certifications | CE, FCC, RoHS, as per Manufacturer |
Physical
| Wall Mounting | 50 x 50 mm |
| IR Sensor | Yes |
| Dimensions | 7.7 x 4.8 x 1.4" / 196.0 x 121.5 x 35.0 mm |
| Weight | 1.54 lb / 699 g |
Xenarc 702-YH Reviews
