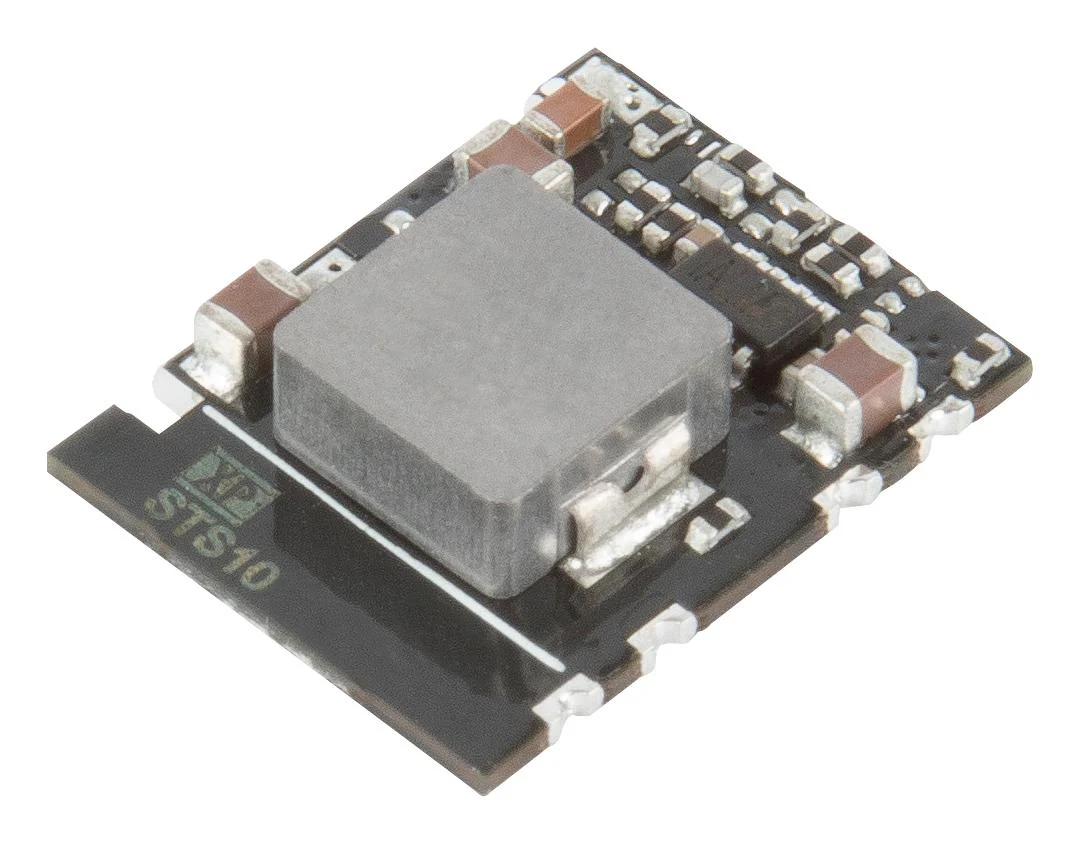

XP POWER STS1024S05 Non Isolated POL DC/DC Converter, ITE, 1 Output, 5 W, 5 V, 1 A, Fixed, Adjustable
XP POWER STS1024S05 Non Isolated POL DC/DC Converter, ITE, 1 Output, 5 W, 5 V, 1 A, Fixed, Adjustable
The STS10 is a series of innovative low cost DC-DC buck regulators. Based on SMD technology and high levels of automation the series offers many features including voltage trimming, remote on/off, continuous short circuit protection, regulation and high efficiency.
- Regulated single outputs from 1.2 to 15VDC
- Wide input range
- SMD-10 package
- Non-isolated
- Output voltage trim Ā±10%
- High efficiency up to 96%
- Class B conducted & radiated emissions with external components
- Short-circuit protection
- No heatsink required
- Remote On/Off
- Full load to +65Ā°C
- See Technical Note for information about XP Power's plans for the UKCA Marking
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 5W |
| Output Voltage Nom: 5V |
| Output Current Max: 1A |
| DC / DC Converter Output Type: Fixed, Adjustable |
| DC / DC Converter Mounting: Surface Mount Device |
| Input Voltage DC Min: 6.5V |
| Input Voltage DC Max: 36V |
| DC / DC Converter Type: Surface Mount DIP |
| Depth: 15.2mm |
| Width: 11.8mm |
| Height: 3.6mm |
| Product Range: STS Series |
Other details
| Brand | XP POWER |
| Part Number | STS1024S05 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
