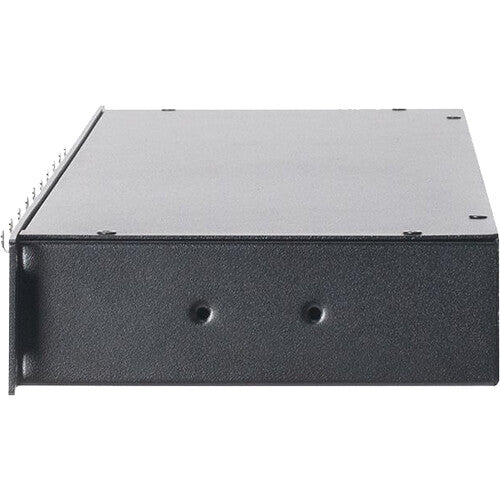

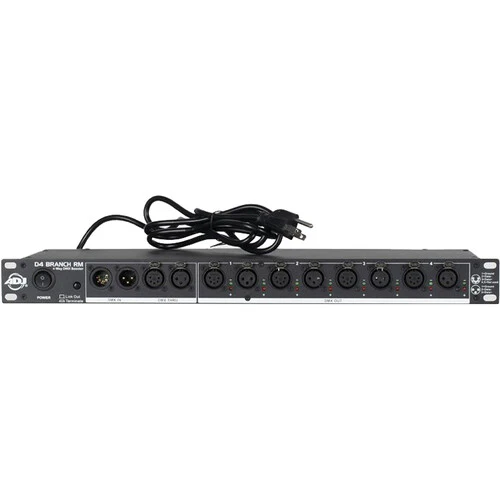

American Audio D4 Branch RM 4-Way DMX Distributor/Booster
American Audio D4 BRANCH RM Overview
Add 4-way DMX signal splitting and boosting to your lighting rig with the D4 Branch RM from American Audio. The lightweight, single rackmount unit features both 3-pin and 5-pin connections on each channel for easy integration into any DMX-512 system, making it well suited for installations, touring, and rental applications.
Each of the four electronically isolated outputs features a driver to boost the signal strength, making the D4 a smart solution when long cable runs are required. The unit also sports an additional thru output channel with no signal boost. The four driven outputs can be disabled with the terminate button for testing purposes.
- Universal DMX-512 splitter/booster
- One input to four driver-boosted outputs (3- and 5-pin)
- Additional thru output (3- and 5-pin) for linking to other data streams
- Electrical isolation between input and output
- Terminate button for output ports
- 1 RU rackmount
- Fuse is rated F0.5A 250V, 5 x 20mm
In the Box
- American Audio D4 Branch RM 4-Way DMX Distributor/Booster
- 2 x Rackmount Bracket
- 4 x Rackmount Screw
- 4 x Rubber Pad
American Audio D4 BRANCH RM Specs
| Inputs/Outputs | 1 x XLR 3-Pin (DMX) Male Input 1 x XLR 5-Pin (DMX) Male Input 1 x XLR 3-Pin (DMX) Female Throughput 1 x XLR 5-Pin (DMX) Female Throughput 4 x XLR 3-Pin (DMX) Female Output 4 x XLR 5-Pin (DMX) Female Output |
| Channels | 4 (DMX) |
| Power Source | AC Adapter |
| AC Input Power | 120 VAC, 60 Hz |
| Fuse | 0.5 A |
| Rack Mount | 1 RU |
| Dimensions | 19.0 x 5.5 x 1.7" / 482.0 x 140.0 x 44.0Ā mm |
| Weight | 5.3Ā lb / 2.4Ā kg |
| Package Weight | 6.095 lb |
| Box Dimensions (LxWxH) | 21.6 x 9.9 x 3.4" |
