American DJ RDM XS8 DMX/RDM Data Splitter
American DJ RDM XS8 Overview

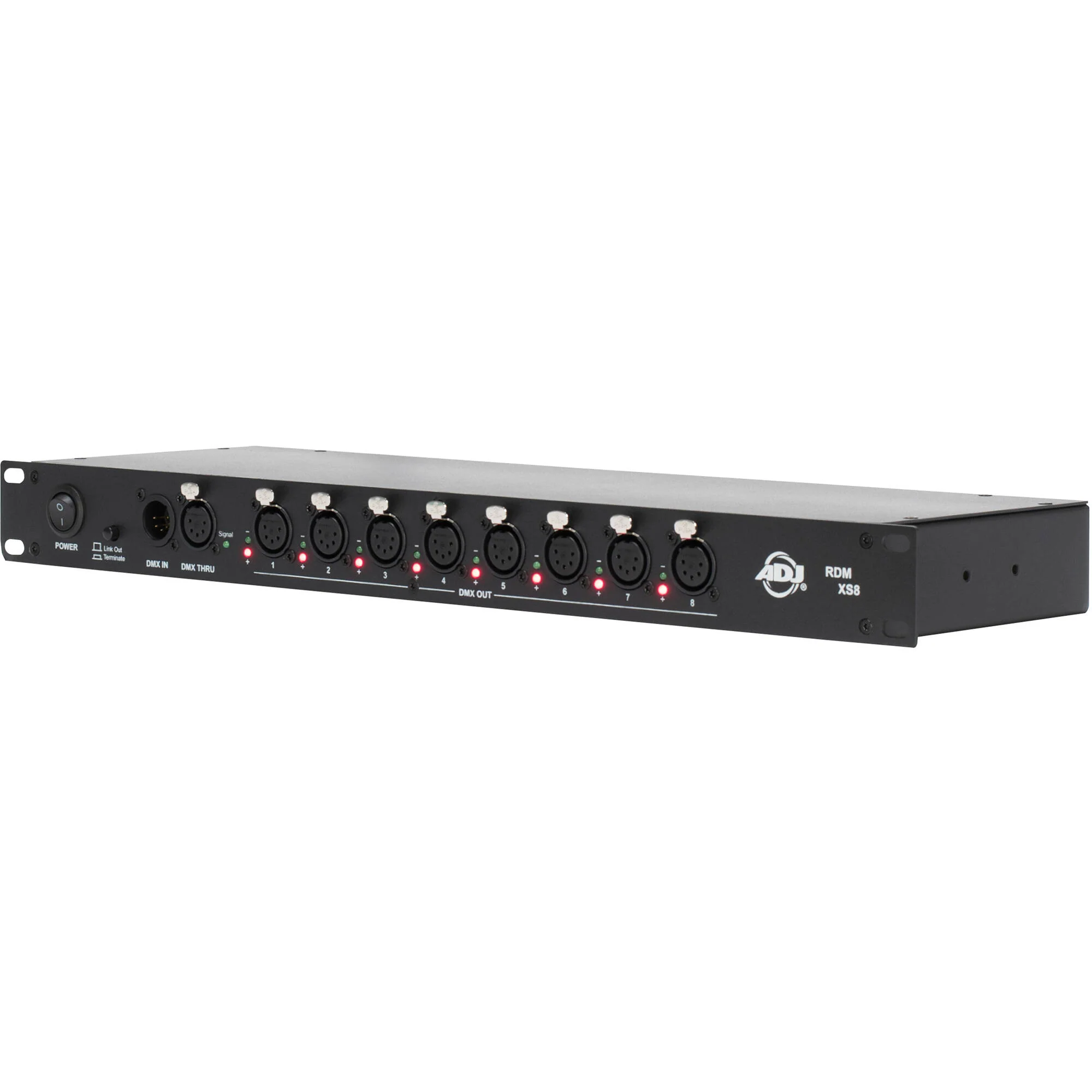

The RDM XS8 DMX/RDM Data Splitter from American DJ is a compact 8-way DMX device for reliable DMX512 and RDM signal distribution. Great for optimizing the DMX cabling of any lighting setup, the unit houses a 5-pin XLR input, a 5-pin XLR thru output, and eight 5-pin XLR output ports. Using DMX and RDM protocols, the RDM XS8 splitter is a versatile solution to simplify your DMX system. The unit operates on a multi-voltage 100-240 VAC current and can be mounted within a 19" rack mount cabinet for convenient installation.
- Link-out termination switch
- DMX/RDM protocol switch
- Power switch
- CE, cETLus, UKCA, and FCC certified
- IP20 rated for indoor use
Items Included
- American DJ RDM XS8 DMX/RDM Data Splitter
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ RDM XS8 Specs
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Male Input
1x XLR 5-Pin (DMX) Female Throughput 8x XLR 5-Pin (DMX) Female Output |
| Power Source |
AC Power
|
| Protocol |
DMX512, RDM
|
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Male Input
1x XLR 5-Pin (DMX) Female Throughput 8x XLR 5-Pin (DMX) Female Output |
| Dimming |
Optional
|
| Power Source |
AC Power
|
| Power Consumption |
3.3 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Fuse |
1.25 A 250 V
|
| Protocol |
DMX512, RDM
|
| Operating Temperature |
32 to 113Ā°F / 0 to 45Ā°C
|
| Operating Humidity |
75%
|
| Storage Temperature |
77Ā°F / 25Ā°C
|
| Certifications |
CE, cETLus, UKCA, FCC
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Material of Construction |
Metal
|
| Rack Mount |
Yes
|
| Dimensions |
19.0 x 6.0 x 1.7" / 48.3 x 15.2 x 4.3Ā cm
|
| Weight |
4.87Ā lb / 2.21Ā kg
|
| Package Weight |
5.235 lb
|
| Box Dimensions (LxWxH) |
21.8 x 9.7 x 3.4"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
