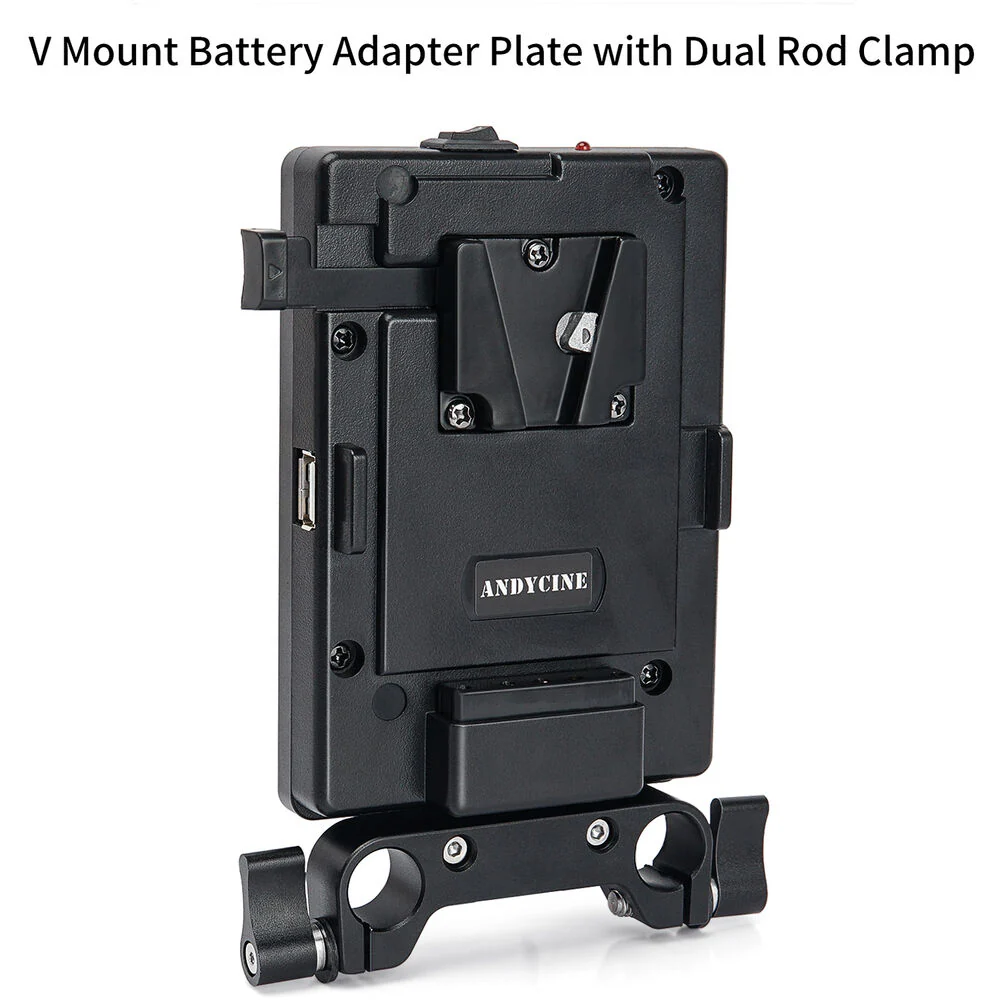

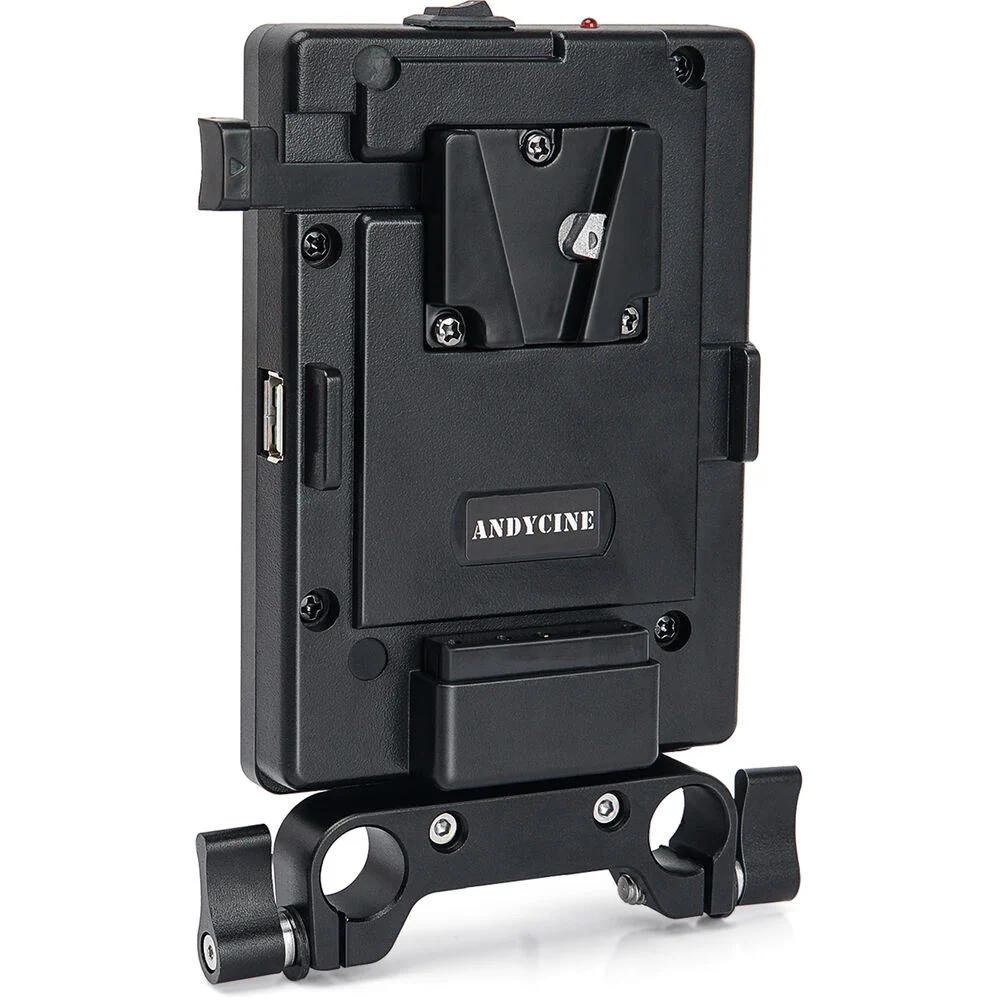

ANDYCINE Multi-Output V-Mount Battery Plate with Adjustable 15mm LWS Rod Bracket
ANDYCINE A-VMBPS-E62 Overview

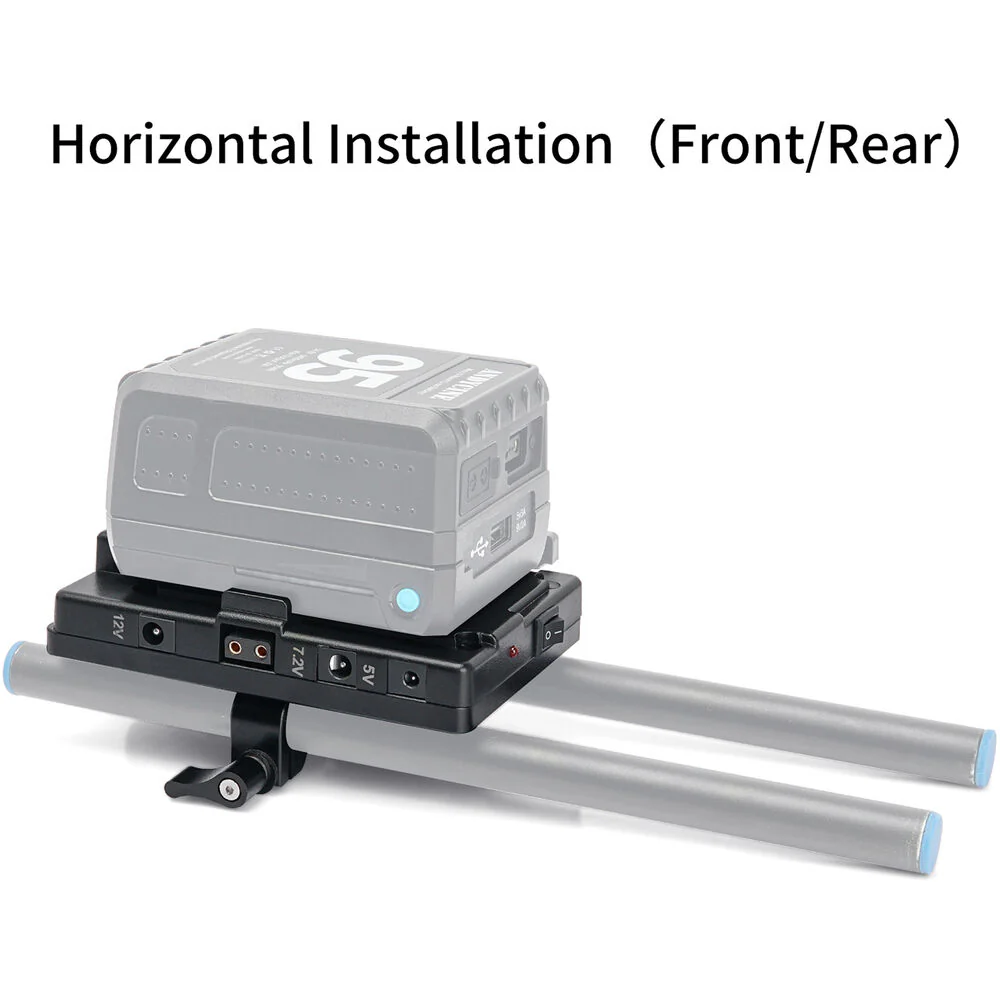

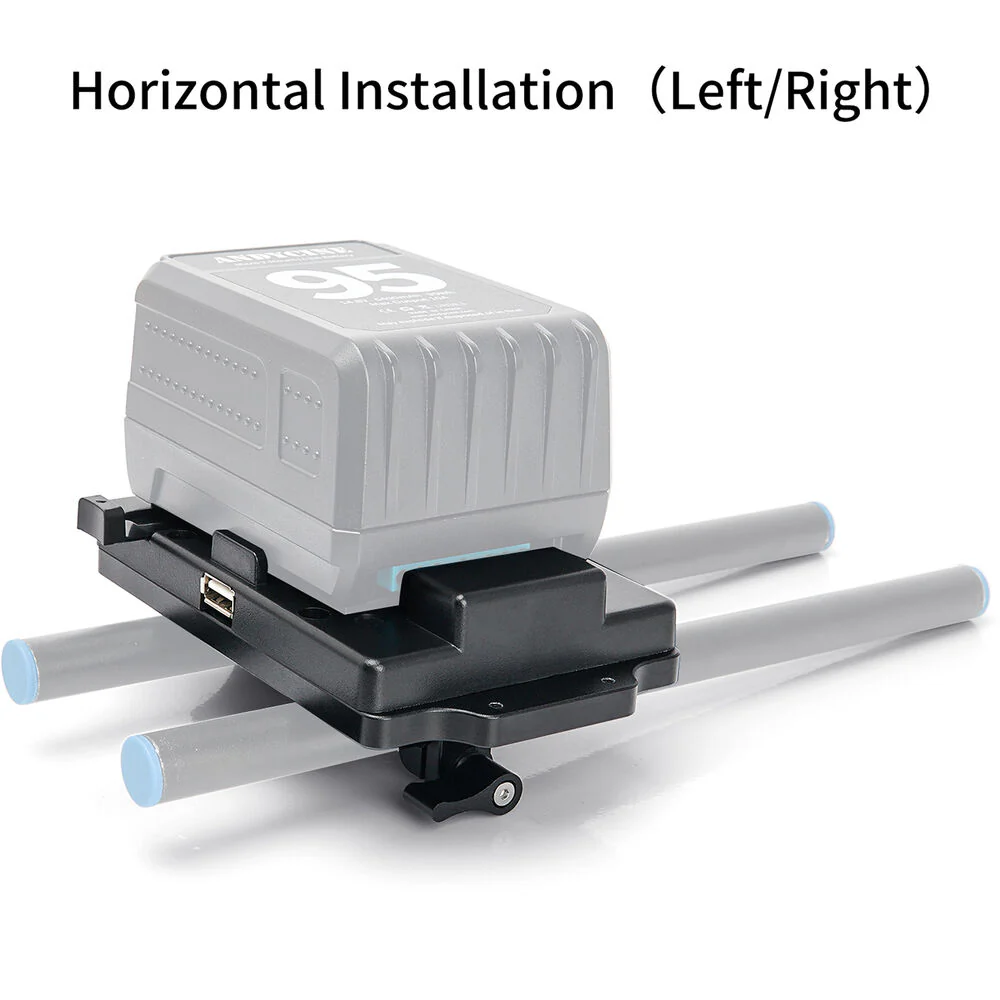

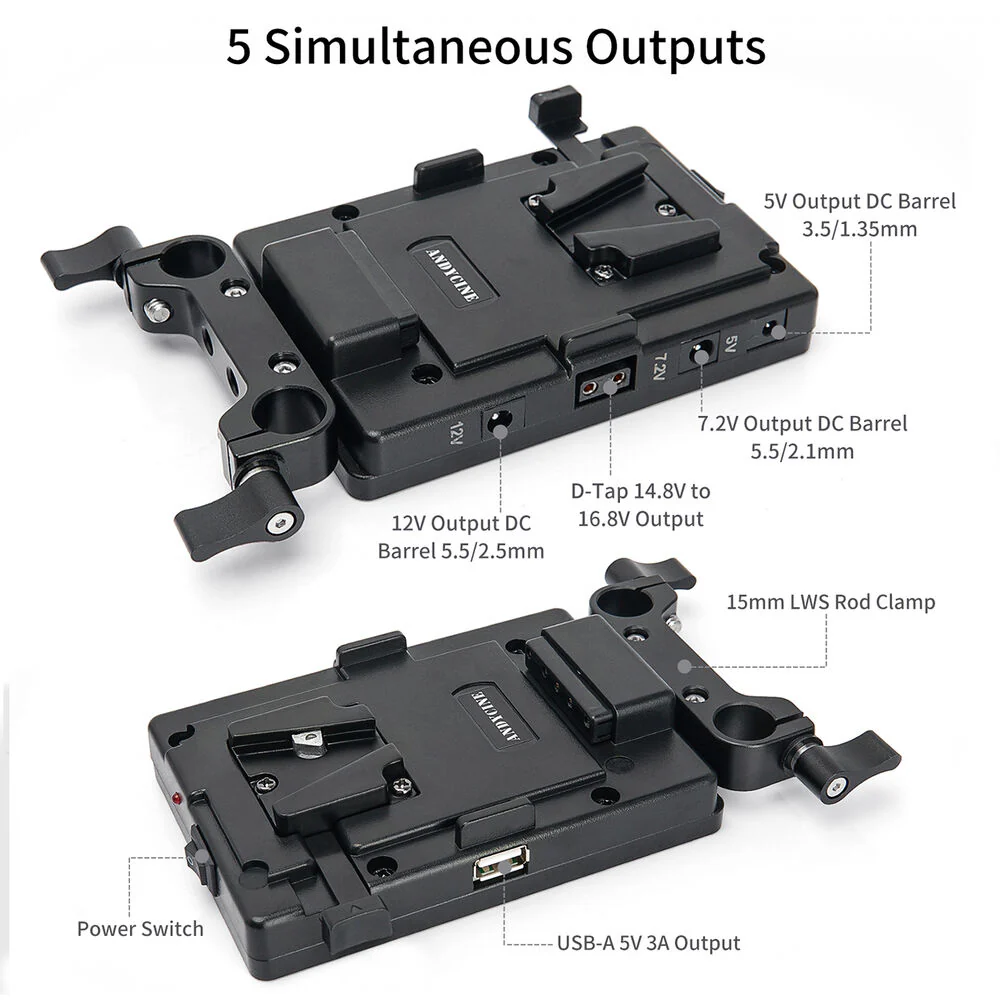

The ANDYCINE Multi-Output V-Mount Battery Plate provides up to five simultaneous outputs for powering both your camera and accessories from one V-mount battery. The included 15mm LWS rod bracket enables you to mount the plate horizontally or vertically on your camera rig, and the power switch turns all the outputs on or off. The accessory outputs consist of a 5V USB-A port, a 14.8V D-Tap port, and 5V, 7.2V, and 12V DC barrel ports. This V-mount plate includes a cleaning cloth and three right-angle DC cables.
In the Box
- ANDYCINE Multi-Output V-Mount Battery Plate with Adjustable 15mm LWS Rod Bracket
- 15mm LWS Rod Bracket
- 12 VDC Right-Angle to Right-Angle Barrel Cable (5.5 x 2.1mm)
- 5 VDC Right-Angle to Right-Angle Barrel Cable (3.5 x 1.35mm)
- 14.8 VDC Right-Angle to Right-Angle Barrel Cable (5.5 x 2.5mm)
- Cleaning Cloth
- 4 x Screw
- Limited 1-Month Manufacturer Warranty
ANDYCINE A-VMBPS-E62 Specs
| Camera Power Method | Connector |
| Inputs/Outputs | 1 x USB-A 3 x DC Jack 1 x D-Tap |
| Plate Front / Battery Mount | V-Mount |

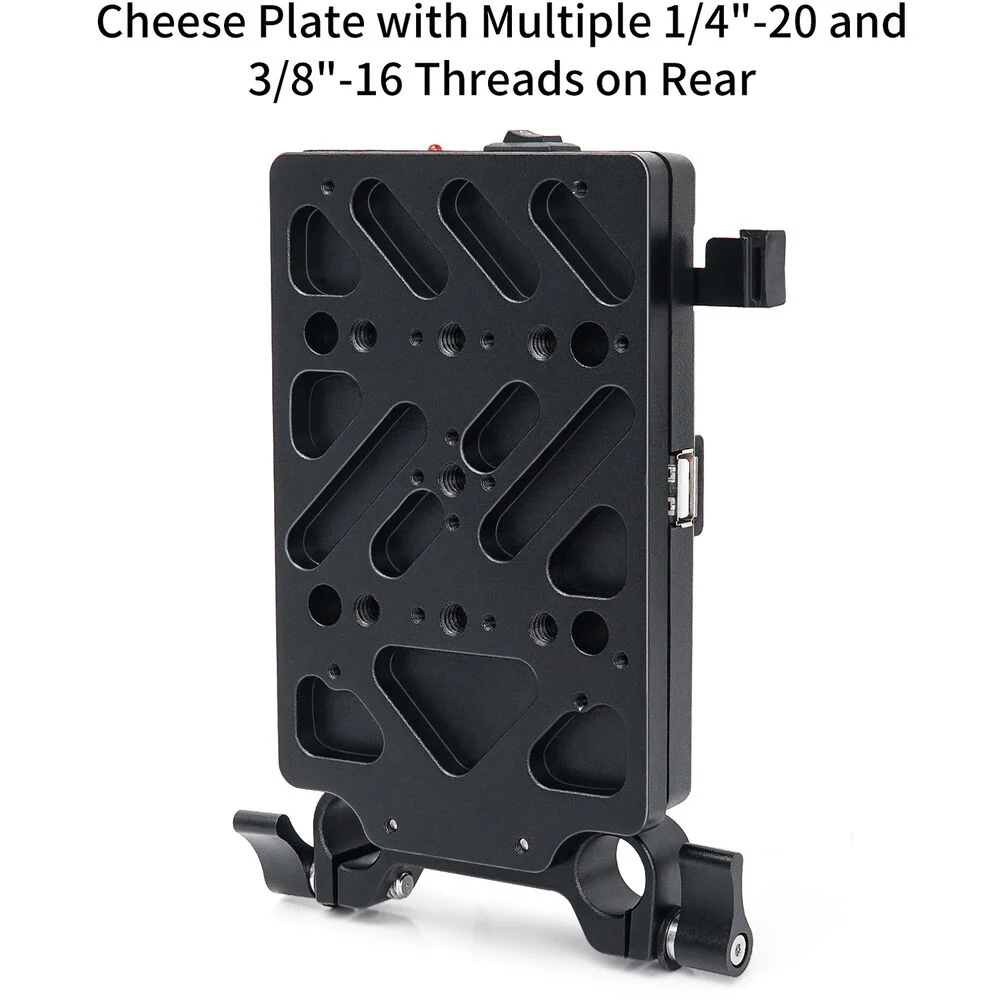

| Accessory Mounting | 1/4"-20 Female, 15 mm LWS Mount, 3/8"-16 Female |
| Hot-Swap Support | No |
| Indicator | LED |
| Dimensions | 4.9 x 4.1 x 1" / 124 x 105 x 25Ā mm |
| Package Weight | 1.185 lb |
| Box Dimensions (LxWxH) | 7.2 x 5 x 3.3" |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
