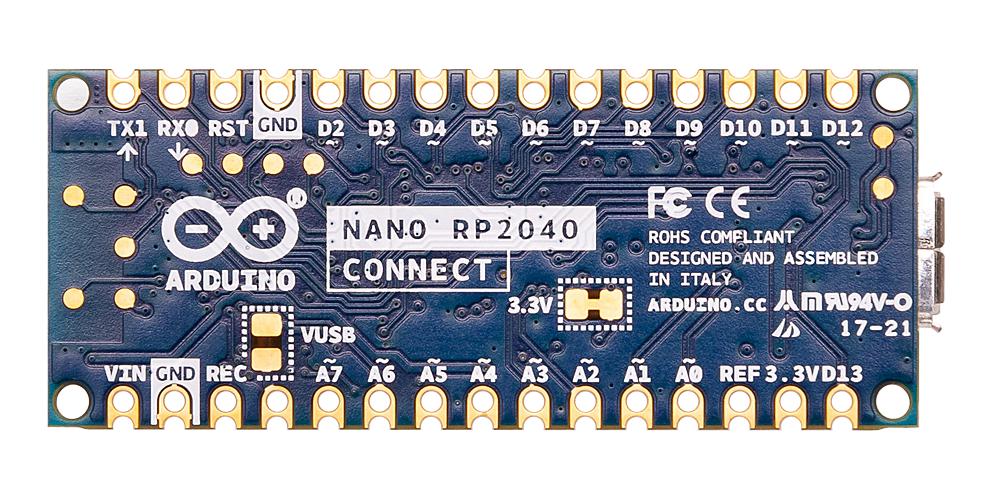

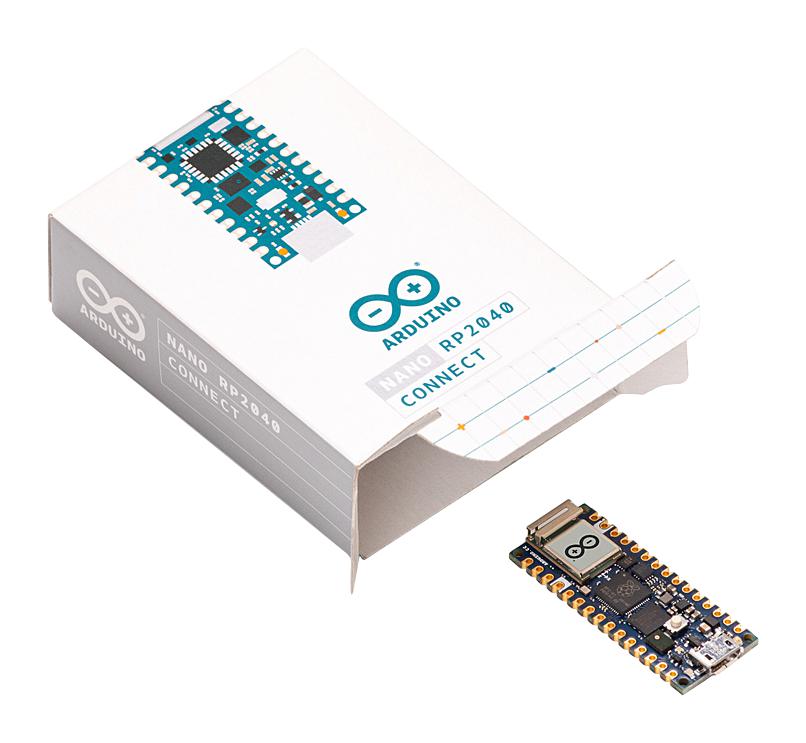

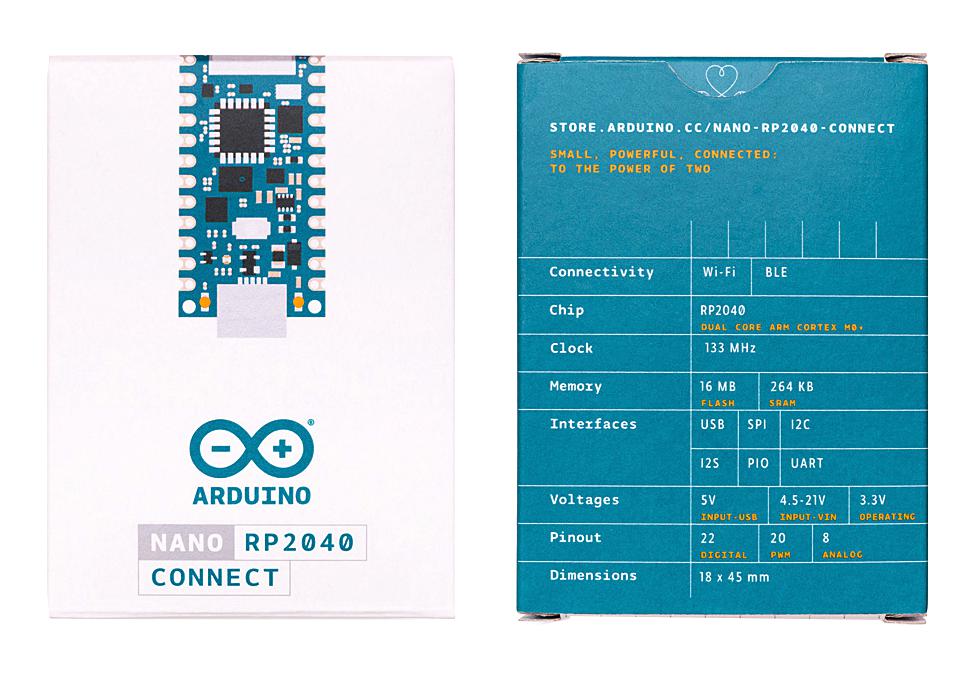

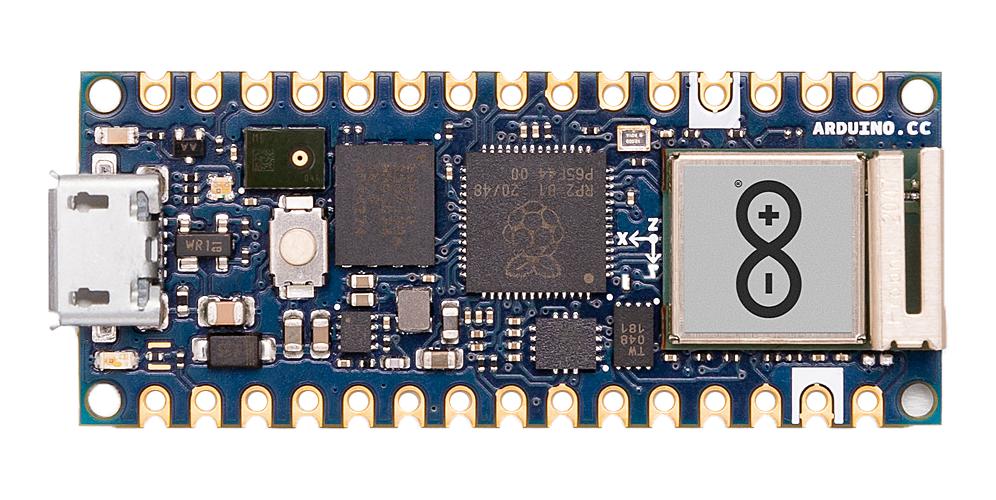

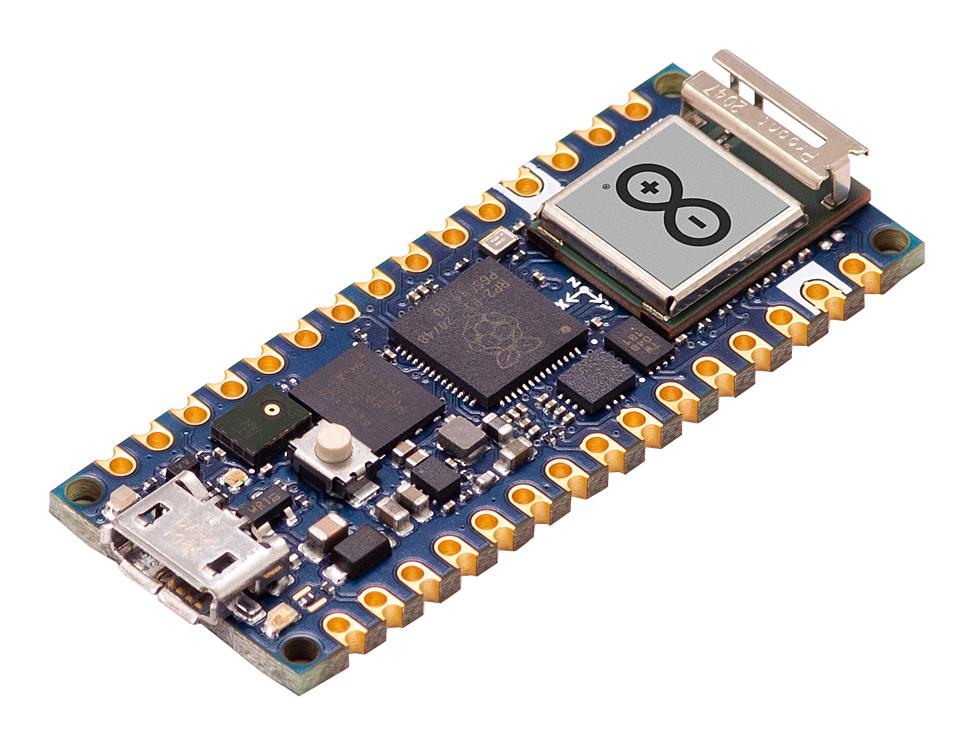

Arduino ABX00052 ABX00052 Raspberry Pi RP2040 32bit ARM Cortex-M0+
The Arduino Nano RP2040 connect module is based on the Raspberry Pi RP2040 microcontroller, this is the first module to combine the RP2040 chip along with additional sensors and wireless connectivity on a PCB. The board is equipped with the RP2040 chip, 6-axis IMU sensors, U-Blox Nina chip for Wi-Fi and Bluetooth wireless communication, as well as a microphone and RGB LED. This version does not have goldpin connectors soldered in.
- USB, SPI, I2C, I2S, UART, PWM interfaces
- U-Blox Nina chip for WiFi / Bluetooth wireless communication
- MicroUSB connector for computer connection and 5V power supply
- Built-in microphone, RGB LED and 6-axis IMU
- Based on Raspberry Pi RP2040 microcontroller clocked at 133MHz
- Built-in 16MB flash memory and 264kB SRAM
- 20 PWM pins, 8 analogue pins and 22 digital pins
- Standard dimensions for Nano series of 45 x 18mm
Product details
| Silicon Manufacturer | Arduino |
| No. of Bits | 32bit |
| Silicon Family Name | - |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+ |
| Silicon Core Number | RP2040 |
| Kit Contents | Nano RP2040 Connect Board |
| Product Range | - |
Other details
| Brand | ARDUINO |
| Part Number | ABX00052 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
