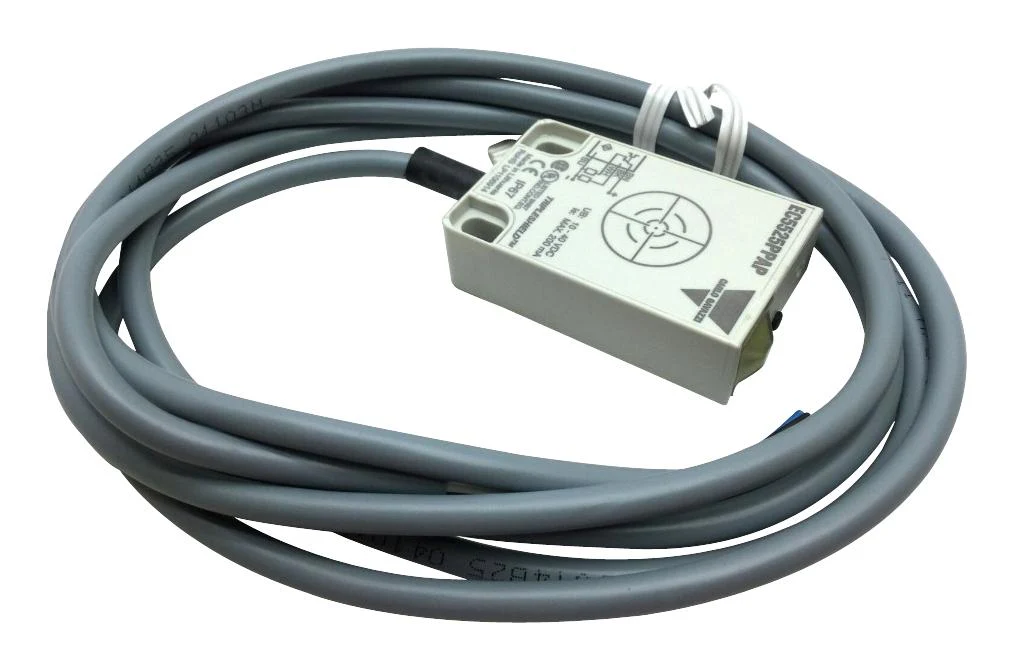

Carlo Gavazzi EC 55 25 PPAP EC PPAP Capacitive Proximity Sensor Type 5525 TRIPLESHIELD� mm PNP 10 to 40 Vdc Pre-Wired

The EC 55 25 PPAP is a capacitive Proximity Switch with sensing distance 16mm flush mounted and sensing distance 25mm non-flush mounted by adjustment. 4- wire DC output with both make (NO) and break (NC) switching. The device features easy mounting with only two M4 screws and ideal for use in material handling and plastic machinery applications.

• Featuring TRIPLESHIELDâ�¢ sensor protection
• 4 to 25mm Adjustable sensing distance
• 200mA DC, PNP output
• Make and break switching function
• LED indication
• High noise immunity
• Universal flush and non-flush mountable

Applications

Sensing & Instrumentation, Industrial

Other details

Brand	CARLO GAVAZZI
Part Number	EC 55 25 PPAP
Quantity	Each
Technical Data Sheet EN
