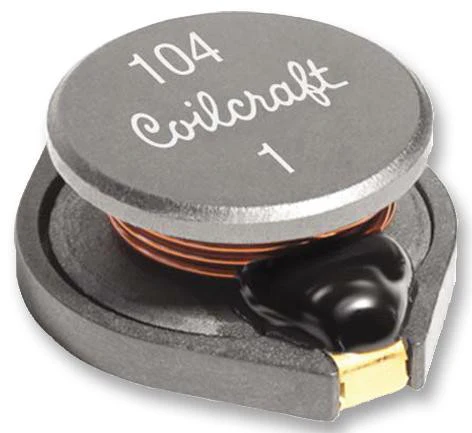

COILCRAFT DO5022P-683MLD Surface Mount Power Inductor, DO5022P Series, 68 �H, 2.3 A, 3.7 A, Unshielded, 0.13 ohm
COILCRAFT DO5022P-683MLD Surface Mount Power Inductor, DO5022P Series, 68 �H, 2.3 A, 3.7 A, Unshielded, 0.13 ohm
Product details
| Power Inductor Case | 18.03mm x 15.24mm x 7.11mm |
| DC Resistance Max | 0.13ohm |
| Saturation Current (Isat) | 3.7A |
| Packaging | Cut Tape |
| Inductance Tolerance | � 20% |
| Product Range | DO5022P Series |
| RMS Current (Irms) | 2.3A |
| Inductance | 68�H |
| Inductor Construction | Unshielded |
Other details
| Brand | COILCRAFT |
| Part Number | DO5022P-683MLD |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
