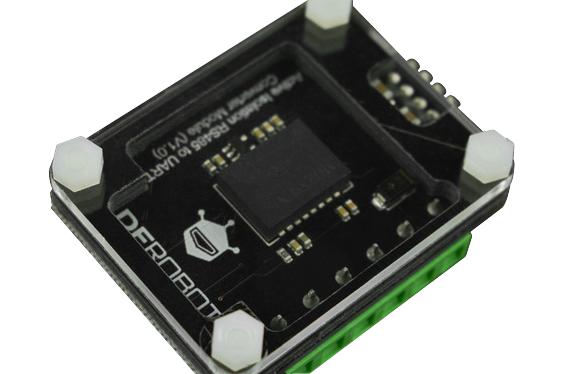

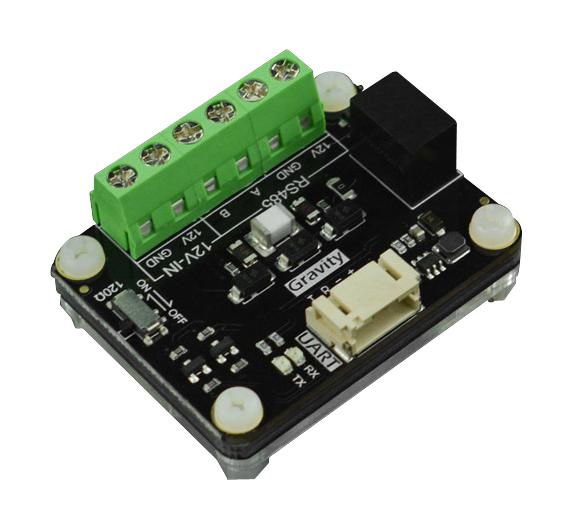

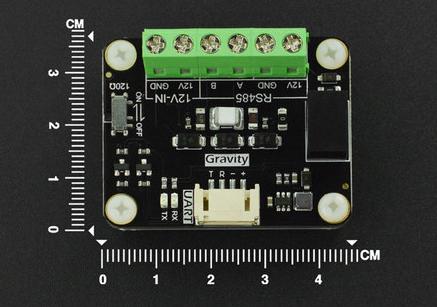

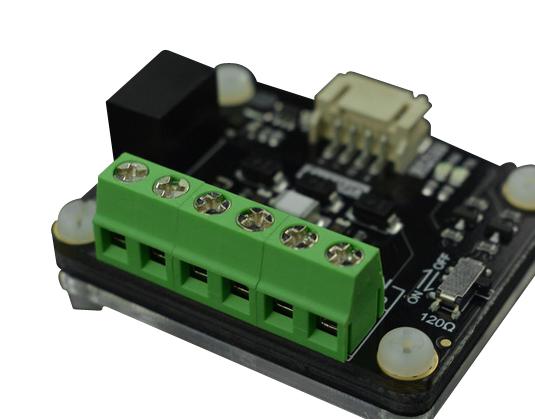

Dfrobot DFR0845 Signal Adapter Module RS485 to Uart 3.3 V 5 1 Mbps Arduino Leonardo Main Control Board

DFR0845 is a Gravity: active isolated RS485 to UART signal adapter module. This active, isolated RS485 to UART signal transfer module comes with protection circuits such as power isolation and TVS. Compatible with most main controllers, it has the characteristics of fast communication speed, stable and reliable performance, high safety. It can be applied to various industrial sensors, industrial control equipment or applications that require RS485 signal conversion.

• Fast communication speed
• Stable and reliable performance
• Power supply voltage range from 3.3V to 5V, communication baud rate up to 1Mbps
• Up to 12V-2W power output (output current is about 160mA)
• Isolation voltage 3000VDC
• Bus electrostatic protection capacity is up to 15KV
• 1/8 unit load, bus load capacity up to 256 nodes
• Bus fail protection and bus drive short circuit protection
• Operating temperature range from -40°C to +105°C

Contents

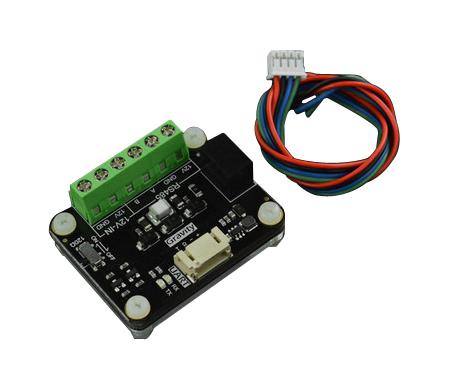

Gravity: active isolated RS485 to UART signal adapter module x1, Gravity-4pin UART Cable x1.

Product details

Silicon Manufacturer	-
Core Architecture	-
Core Sub-Architecture	-
Silicon Core Number	-
Silicon Family Name	-
For Use With	Arduino Leonardo Main Control Board
Kit Contents	Isolated RS485 to UART Signal Adapter Module, UART 4 Pin Cable
Product Range	-

Other details

Brand	DFROBOT
Part Number	DFR0845
Quantity	Each
Technical Data Sheet EN
