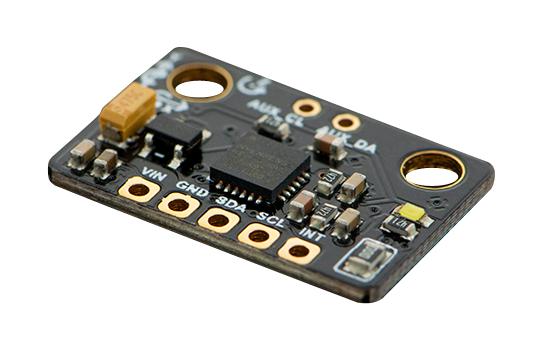

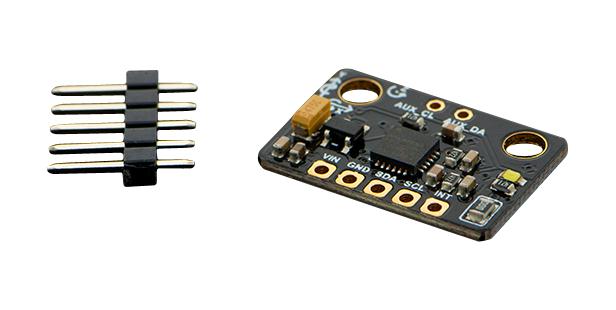

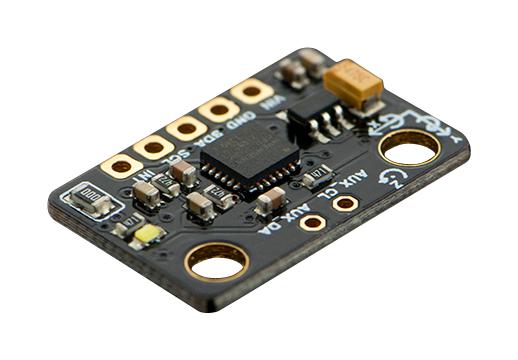

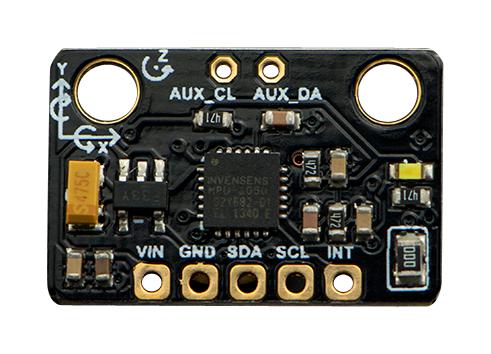

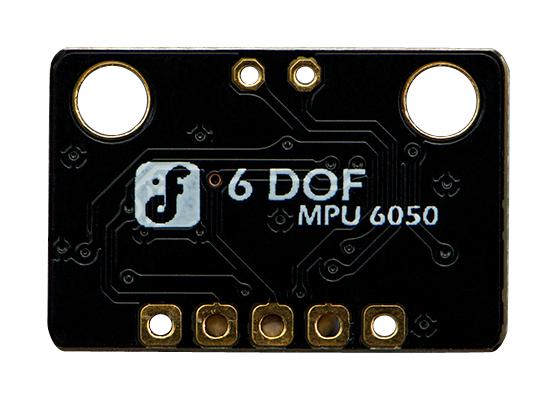

Dfrobot SEN0142 SEN0142 Evaluation Board Fermion MPU-6050 Dfrduino UNO V2
6 Dof sensor breakout integrate with the MPU6050 sensor and the low noise 3.3v regulator and pull-up resistors for the I2C bus. So it's available to directly hook up the sensor with the Arduino processors for your robotics, HCI and wearable projects. With the Arduino library from i2cdevlib it's easy for you to drive this sensor and get the pitch, roll, yaw, quaternion, Euler data.
- Working voltage: 3V to 5V
- Tri-axis angular rate sensor with 131 LSBs/dps sensitivity & ±250, ±500, ±1000, ±2000dps range
- Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
- DMP engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
- Embedded algorithms for run-time bias and compass calibration. No user intervention required
- Dimensions: 14 x 21mm
Product details
| Accessory Type | Fermion MPU-6050 6 DOF Sensor (Breakout) |
| For Use With | DFRduino UNO V2 Board |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | SEN0142 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
