Dfrobot SEN0230 SEN0230 Rotary Encoder Incremental Photoelectric 400P/R Dfrduino UNO Board

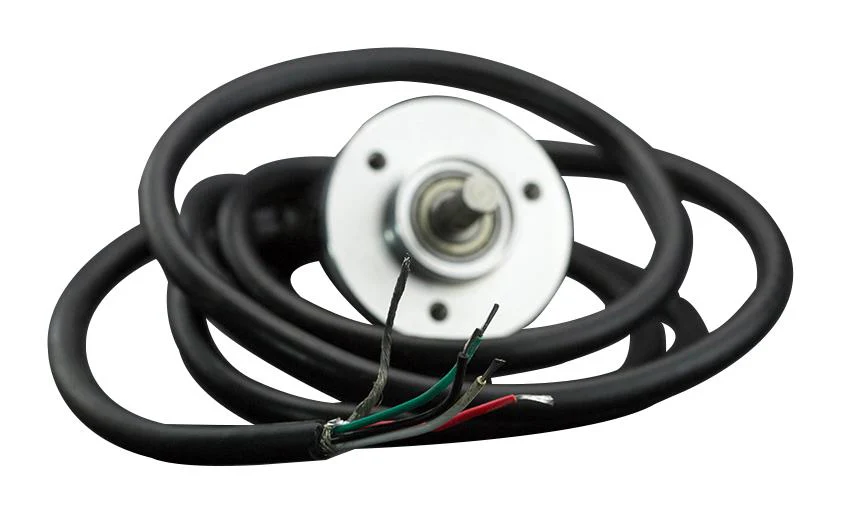

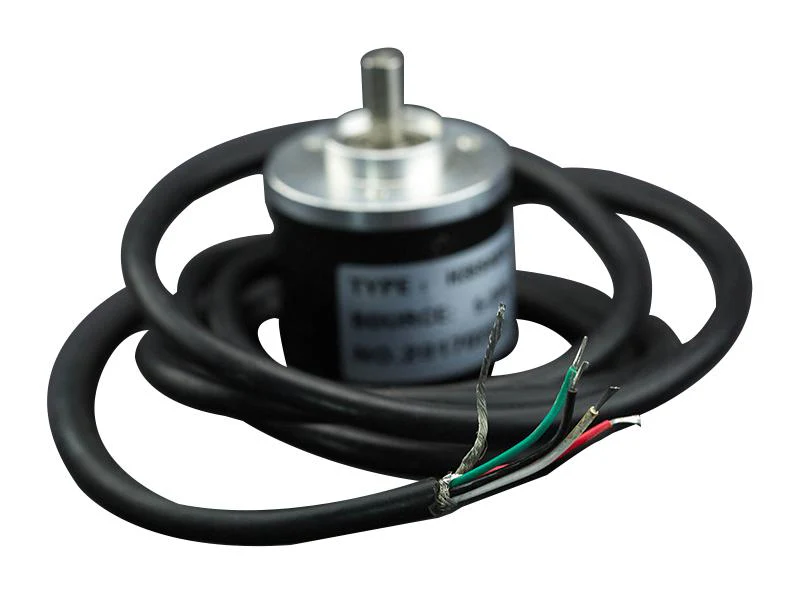

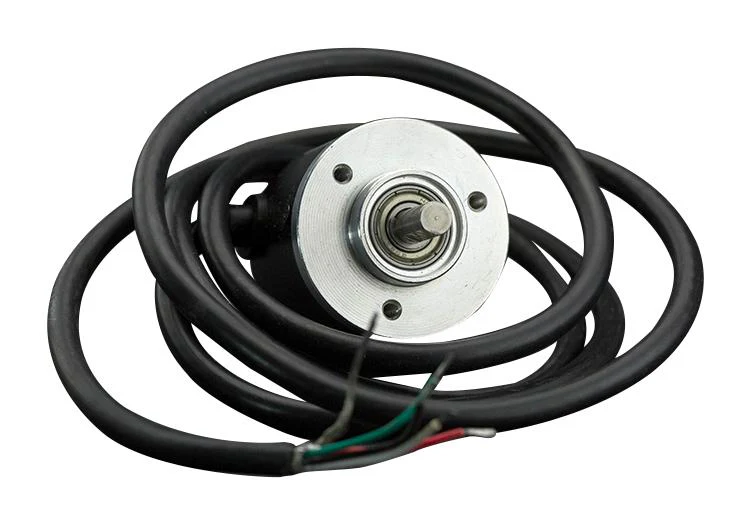

Incremental photoelectric rotary encoder is an industrial incremental photoelectric rotary encoder with aluminium material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.

• Supply voltage range from 4.8V to 24V
• Encoder body size: Φ39Ã� 36.5mm
• Output shaft diameter of Φ6 Ã� 13mm
• Outside shaft platform: Φ20 Ã� 4.85 mm
• Fixing holes screws: M3
• Weight: 234 g

Contents

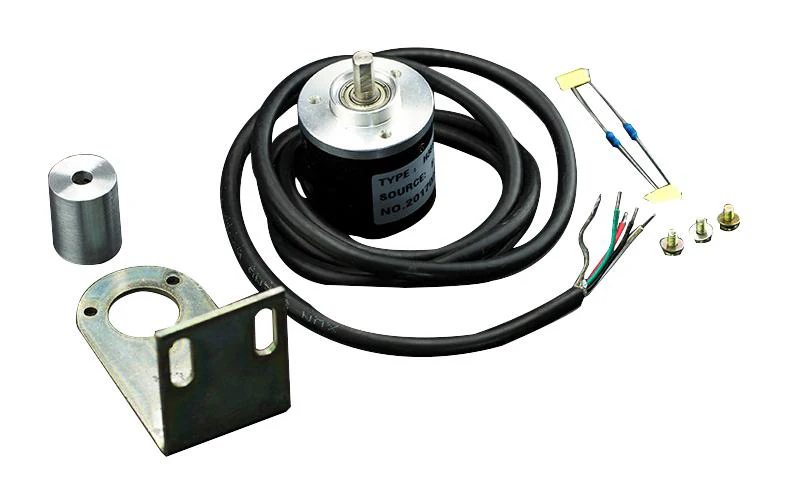

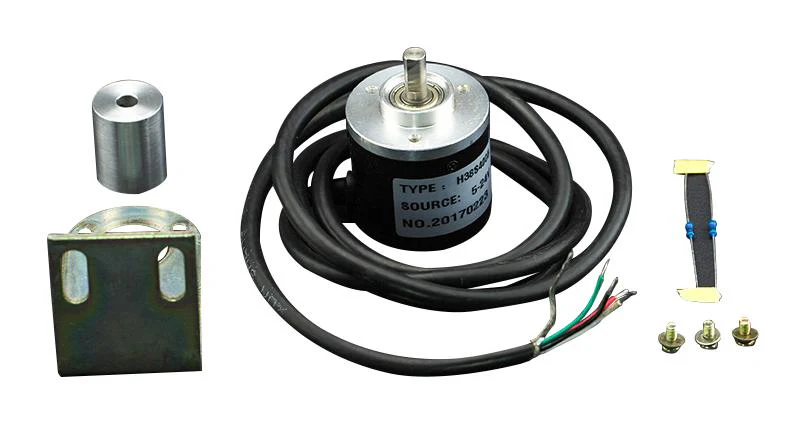

Encoder x 1, Encoder mounting bracket x 1, 6mm coupling x 1, Screw accessories x 1, 10K resistance x 2.

Product details

Accessory Type	Incremental Photoelectric Rotary Encoder - 400P/R
For Use With	DFRduino UNO Board
Product Range	-

Other details

Brand	DFROBOT
Part Number	SEN0230
Quantity	Each
Technical Data Sheet EN
