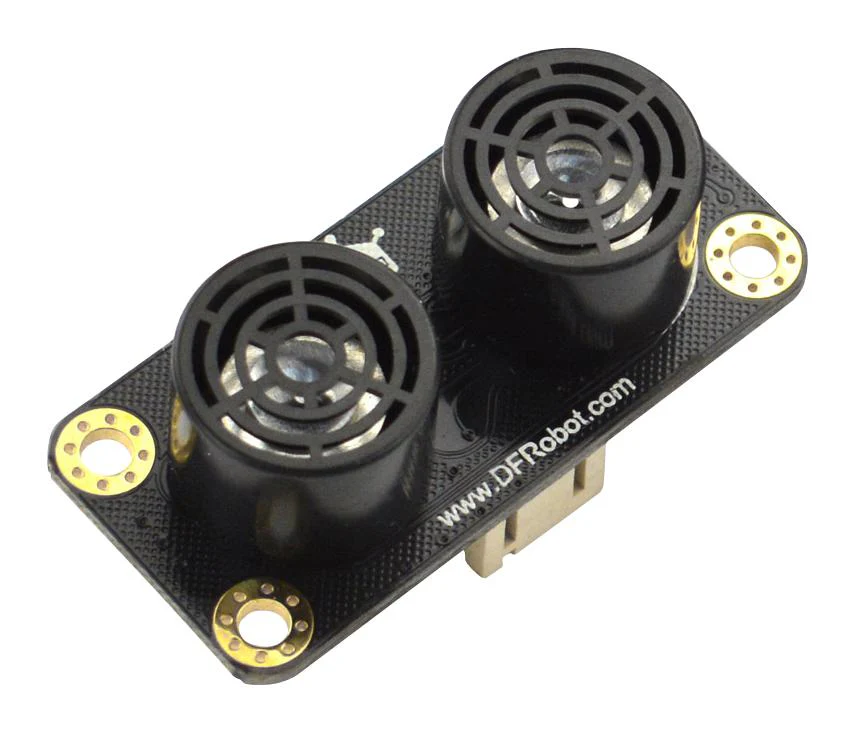

Dfrobot SEN0307 SEN0307 Ultrasonic Sensor Gravity URM09 Analogue Arduino/Raspberry Pi Boards

Gravity: URM09 Analog ultrasonic sensor is an ultrasonic sensor specially designed for fast ranging and obstacle avoidance applications. Its measuring frequency can reach up to 30Hz. The sensor adopts built-in temperature compensation and analogue output. Meanwhile, it can provide accurate distance measurement within 500cm. The sensor is compatible with Arduino, Raspberry Pi or other main-control boards with 3.3V or 5V logic level.

• Power supply range from 3.3VDC to 5.5VDC
• Operating current of 20mA
• Operating temperature range from -10â�°C to +70â�°C
• Measurement range from 2cmto500cm
• Resolution of 1cm
• 1% accuracy
• Frequency of 30Hz max

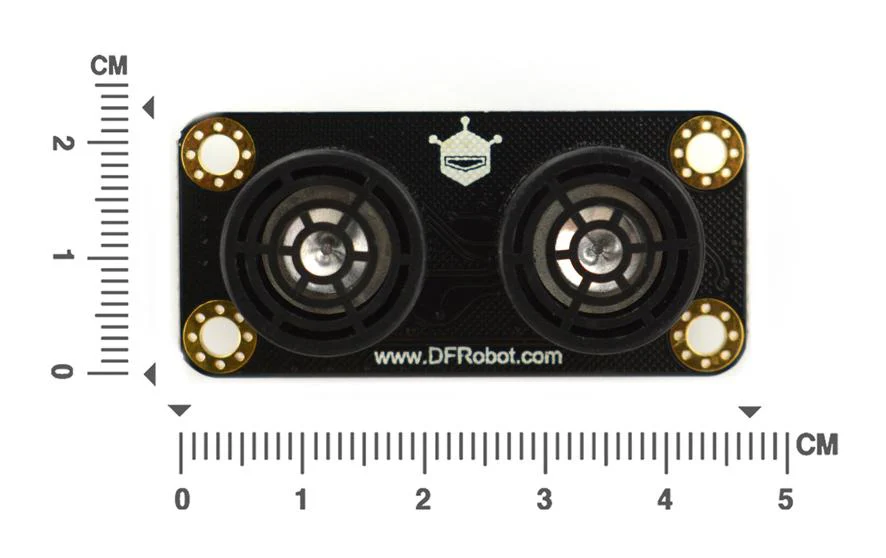

• Dimension is 47mm Ã� 22 mm/1.85Ã� 0.87

Contents

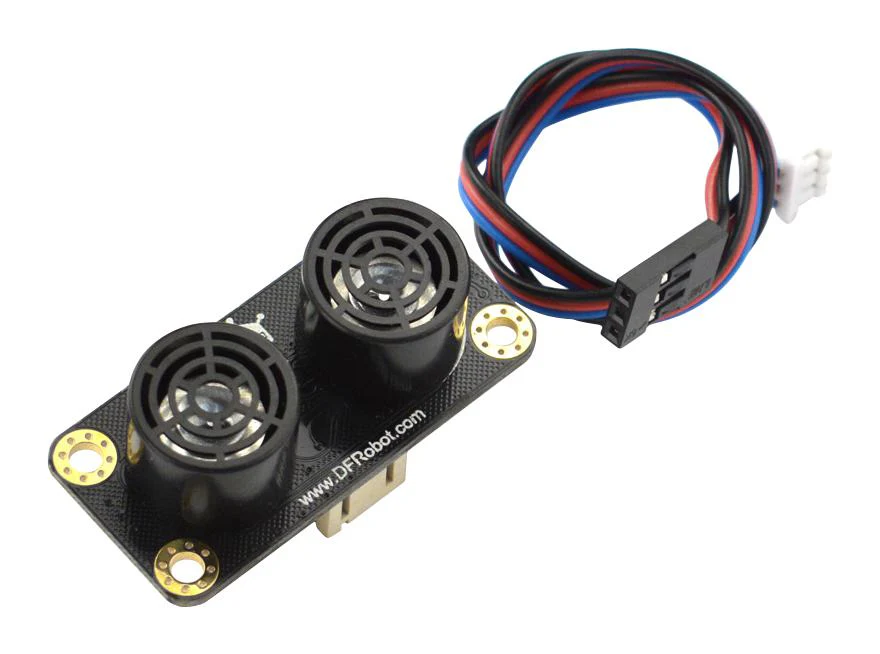

URM09 ultrasonic sensor (gravity analogue) x 1, PH2.0-3P connector x 1.

Product details

Accessory Type	Gravity URM09 Analogue Ultrasonic Sensor
For Use With	Arduino and Raspberry Pi Boards
Product Range	-

Other details

Brand	DFROBOT
Part Number	SEN0307
Quantity	Each
Technical Data Sheet EN
