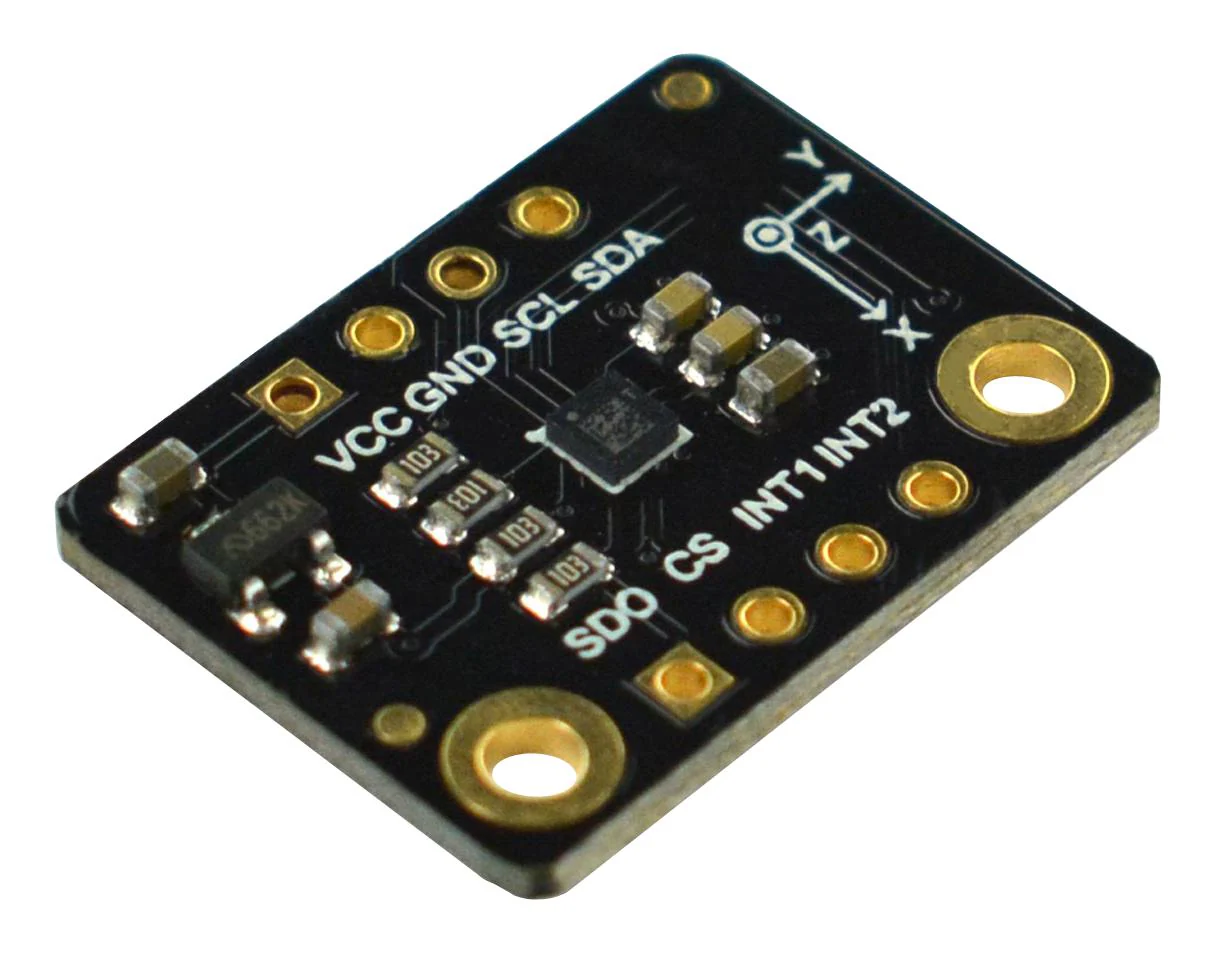

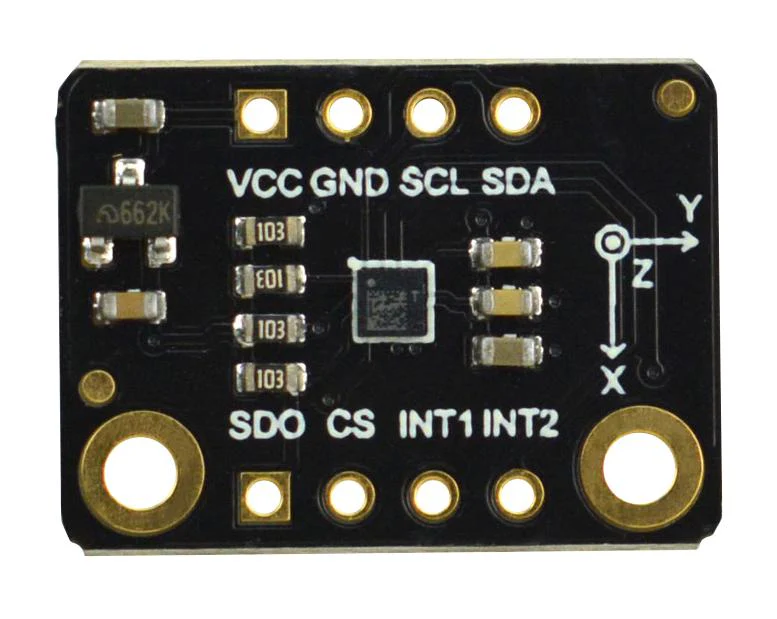

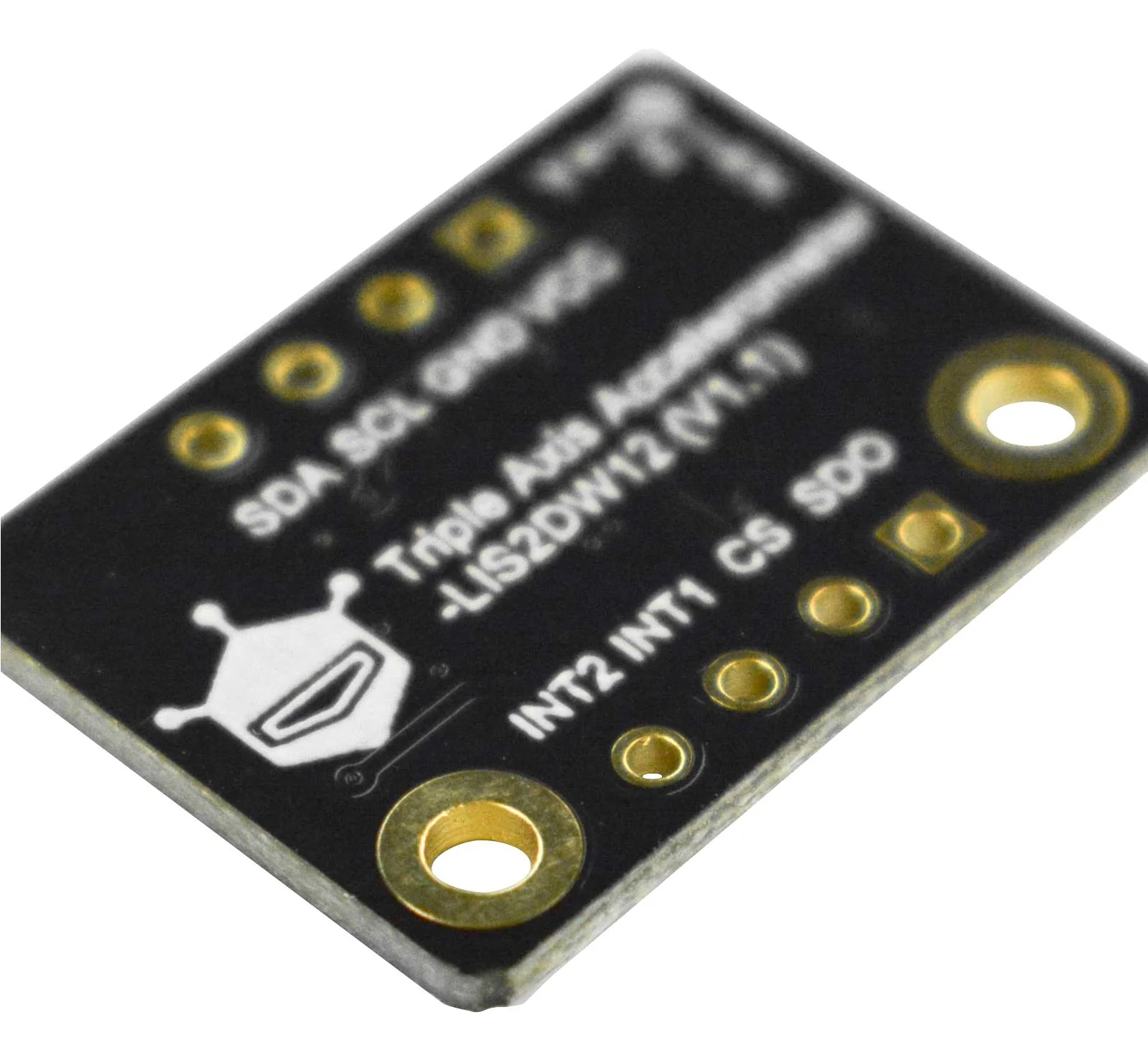

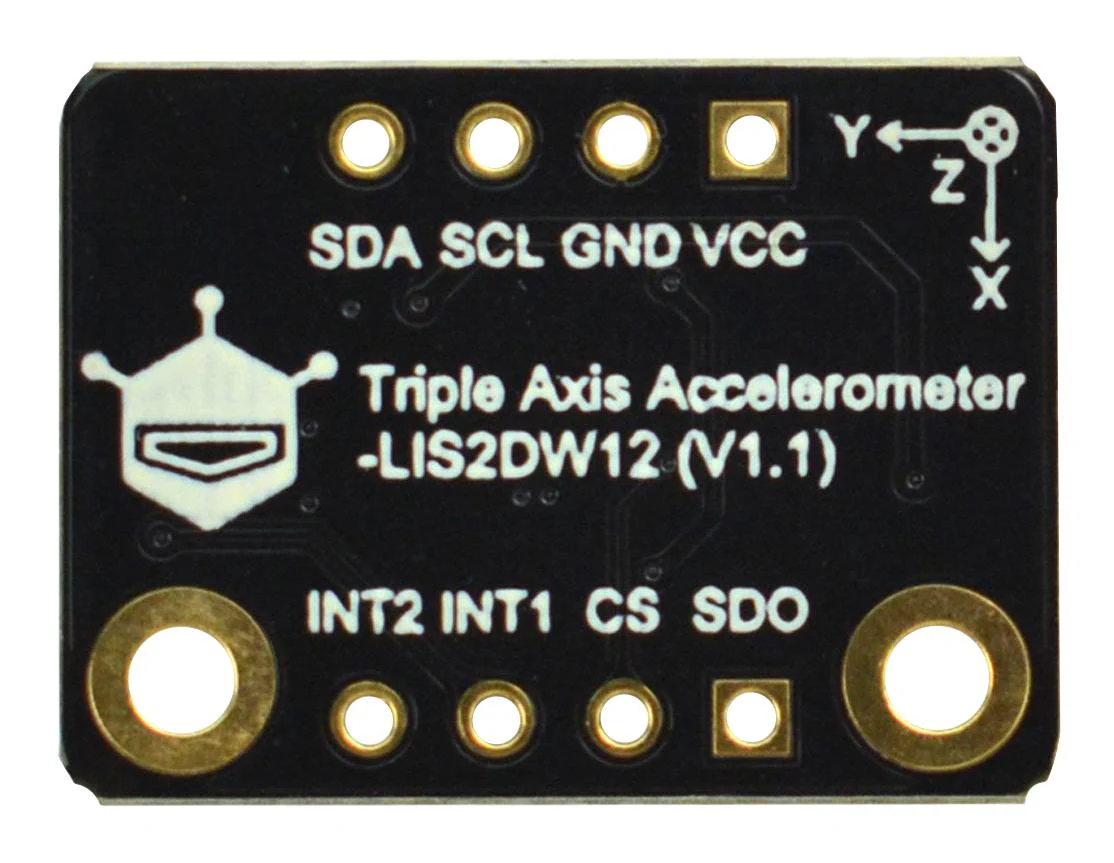

Dfrobot SEN0405 SEN0405 Accelerometer Board Fermion Triple Axis LIS2DW12 Arduino ±16g New

Fermion LIS2DW12 triple axis accelerometer sensor (Breakout) (±16g). The LIS2DW12 is a low power high-performance three-axis linear accelerometer, featuring low power(50nA), low noise(1.3mgRMS), 32 FIFO, ±2g/±4g/±8g/±16g full scale, 16-bit data output and 1.6~1.6KHz bandwidth. The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wakeup for smart power saving, etc. It is suitable for self-balancing robot, free-fall detection, human action recognition, gesture recognition and gaming tap/double-tap recognition, motion detection for wearables.

• Selectable scales ±2g/±4g/±8g/±16g
• 16bit data output
• Two independent programmable interrupts
• 3.3V operating voltage and 50nA operating current
• SPI/I2C interface
• 0x19 (default address)/0x18 (optional: pull down the SDO pin to select) I2C address
• Operating temperature range -40°C to 85°C
• 16bit data output
• 32 level FIFO (first-in first-out buffer zone) and 10000g high shock survivability

Contents

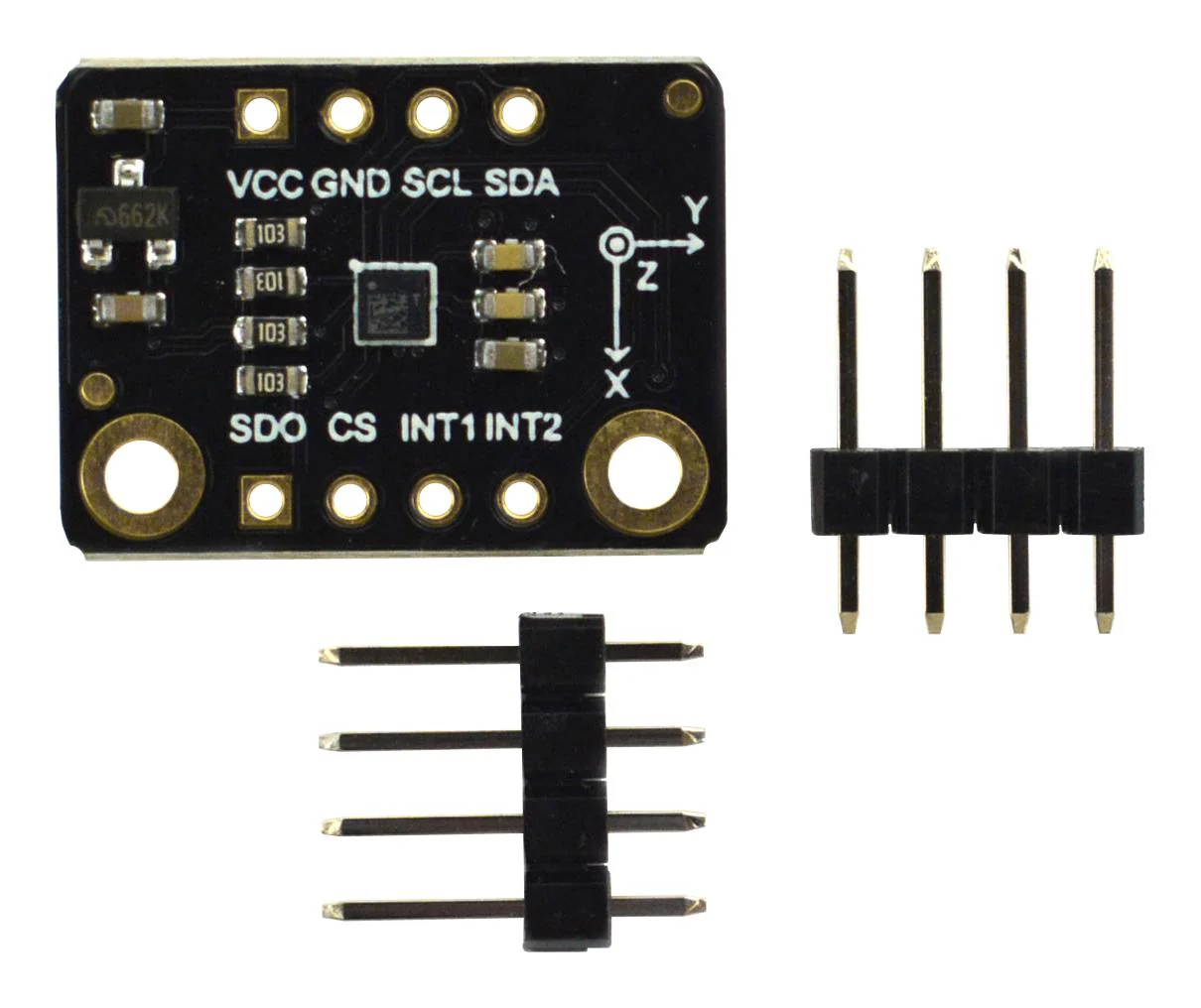

Fermion LIS2DW12 triple axis accelerometer sensor (Breakout) (±16g), 2.54-4P black single pin header x2.

Product details

Accessory Type	Triple Axis Accelerometer Sensor
For Use With	Arduino Board
Product Range	-

Other details

Brand	DFROBOT
Part Number	SEN0405
Quantity	Each
