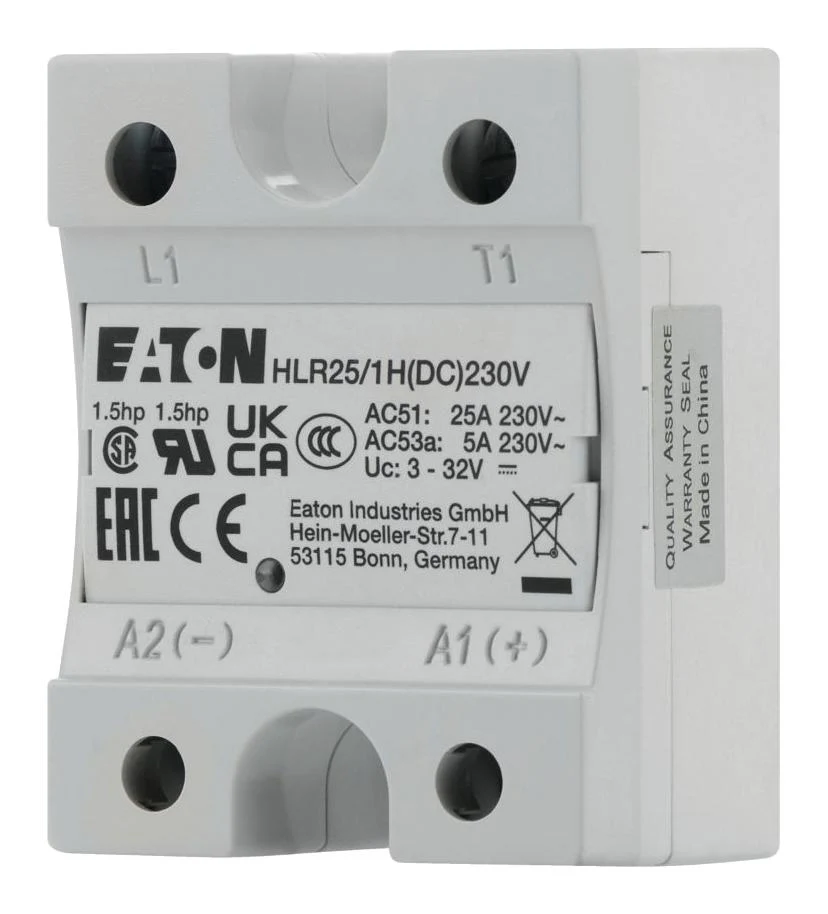

EATON MOELLER HLR25/1H(DC)230V Solid State Relay, 1 Phase, Hockey Puck, 25 A, 265 V, DIN Rail, Panel, Screw, Zero Crossing
EATON MOELLER HLR25/1H(DC)230V Solid State Relay, 1 Phase, Hockey Puck, 25 A, 265 V, DIN Rail, Panel, Screw, Zero Crossing
HLR25/1H(DC)230V is a 1-phase, hockey puck, solid-state relay. It is certified by UL 508, EAC, CCC, UL-file no-E338590, CSA-file no-603498.
- 25A rated operational current (Ie) at AC-51, 24 to 265V operating voltage range
- IP20 degree of protection, 45Hz to 65Hz frequency rating range
- Mount device in specified orientation and do not obstruct the heatsink mounting position
- 1 number of phase, III overvoltage category, 2 pollution degree
- 6KV (1.2/50Āµs) rated impulse withstand voltage (Uimp)
- Switching at zero-crossing, screw connection
- 1/2 period delay time, < 1/2 period drop-out time
- 2.4Nm (21.2lb-in) tightening torque (main)
- 28.8mm product length/depth, 58.2mm product height, 44.8mm product width
- Operating temperature range from -40Ā°C to 80Ā°C
Product details
| Contact Configuration: - |
| Load Current: 25A |
| Operating Voltage Max: 265V |
| Relay Mounting: DIN Rail, Panel |
| Relay Terminals: Screw |
| Switching Mode: Zero Crossing |
| Operating Voltage Min: 24V |
| Control Voltage Min: 3VDC |
| Control Voltage Max: 32VDC |
| Product Range: HLR Series |
Other details
| Brand | EATON MOELLER |
| Part Number | HLR25/1H(DC)230V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
